Timing Belt Tensioner

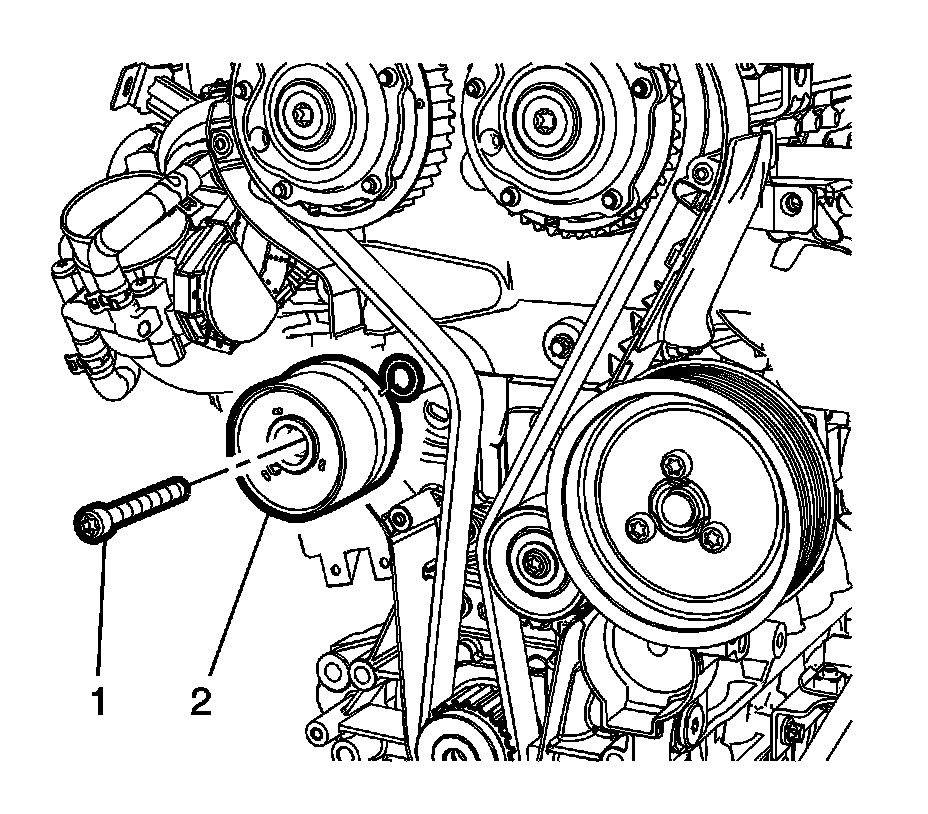

Install the timing belt tensioner (2).
Install the timing belt tensioner bolt (1).






Apply tension to the drive belt tensioner (2) in the direction of the arrow, using an allen key (1).

Tighten the timing belt tensioner bolt to 20 Nm (15 lb ft).
