LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2013
>>
Sonic L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump
>>
Fuel Pump Control Unit
Fuel Pump Control Unit
Component Connector End Views

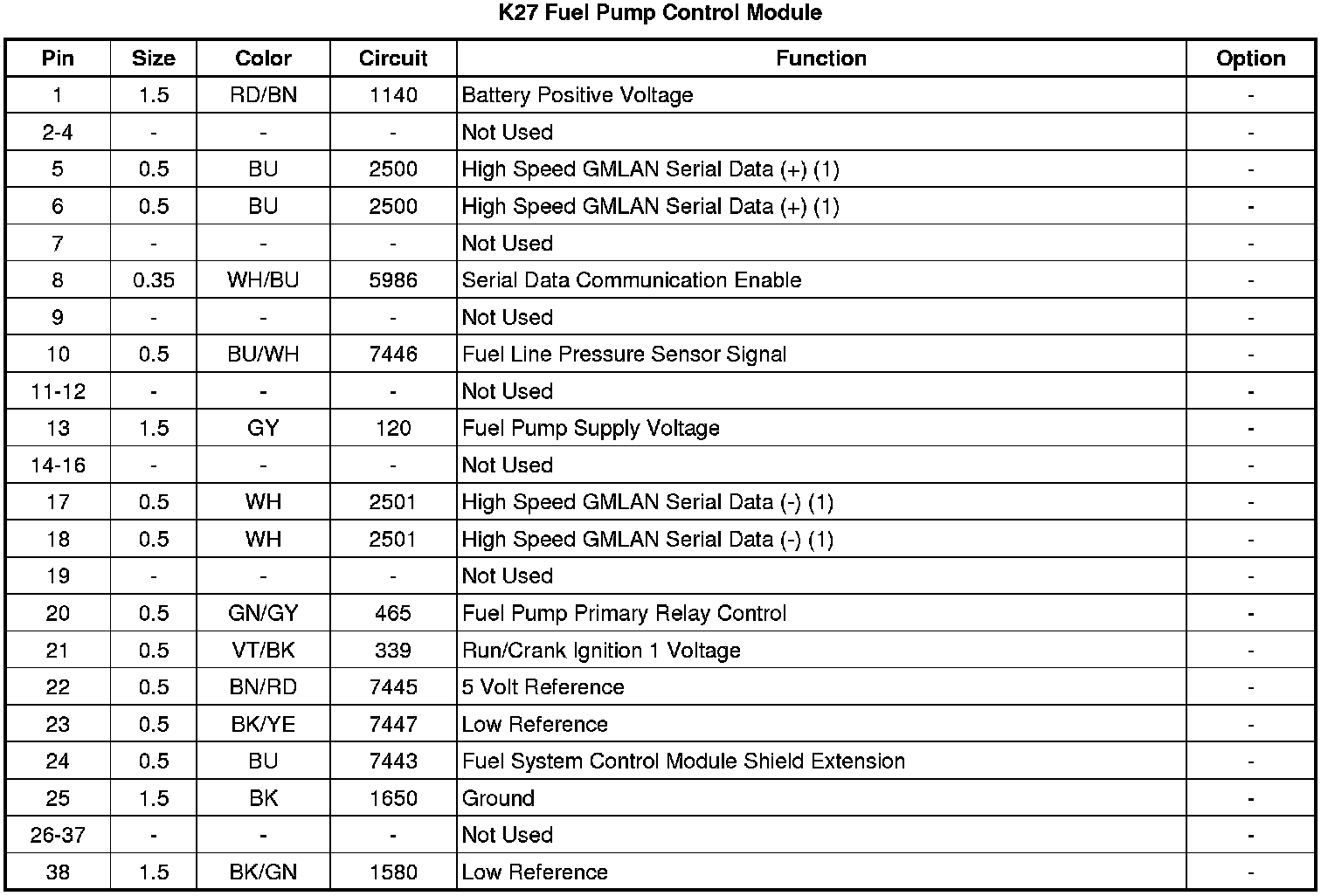

K27 Fuel Pump Control Module
