Home
>>
Chevrolet
>>
2013
>>
Malibu L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Locks
>>
Keyless Entry Transmitter
Keyless Entry Transmitter
Remote Function Schematics

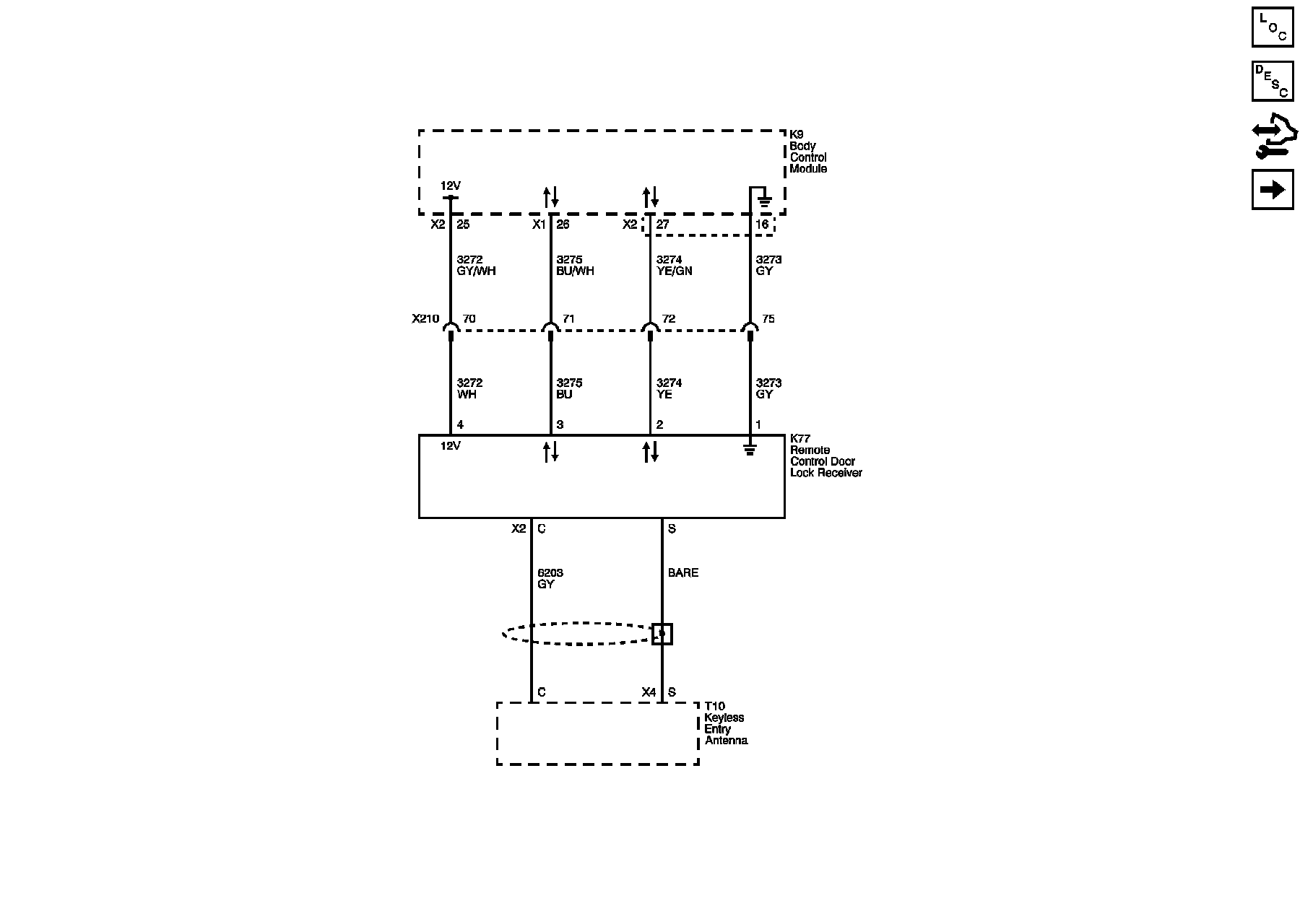

Keyless Entry

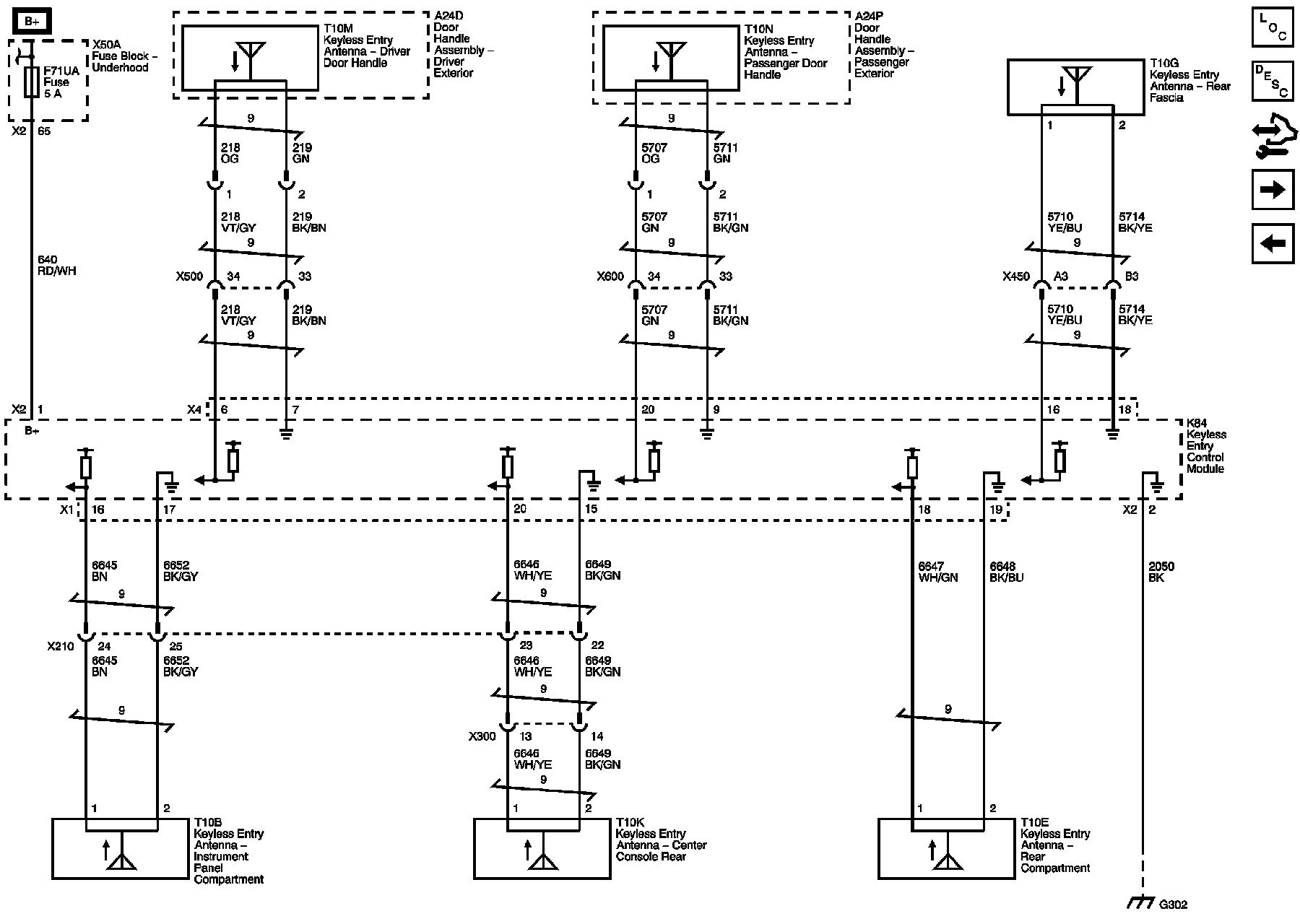

Passive Entry (ATS)

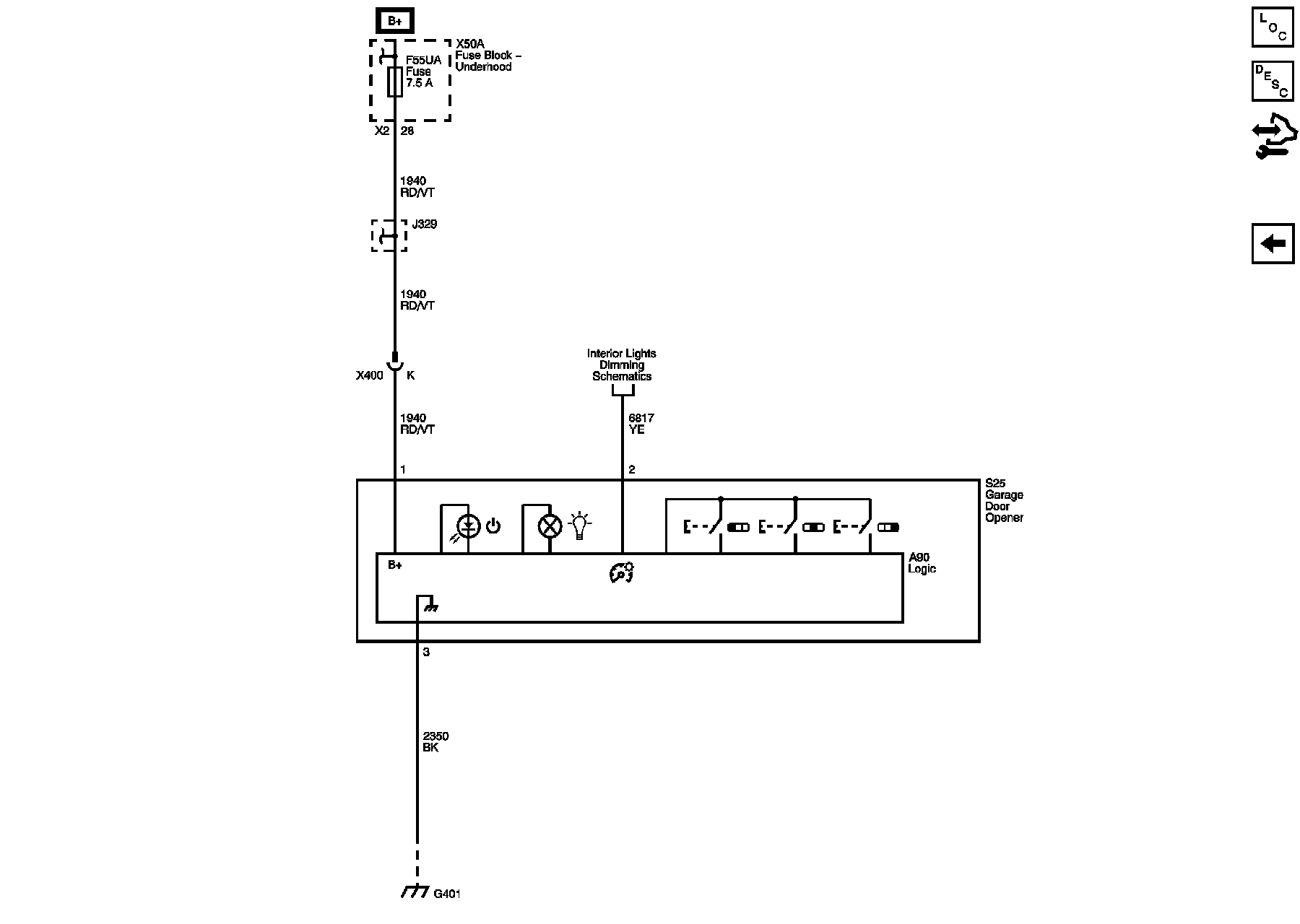

Garage Door Opener
