LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2013
>>
Malibu L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Occupant Sensor
Seat Occupant Sensor

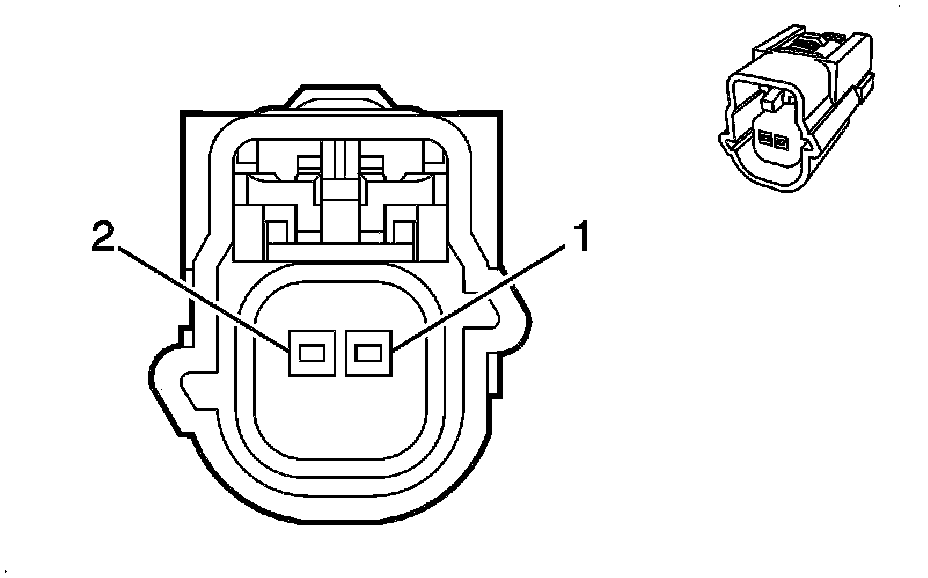

Component Connector End Views
B60 Passenger Presence Sensor
