Home >> Chevrolet >> 2013 >> Malibu L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - Right Rear

Window Switch - Right Rear

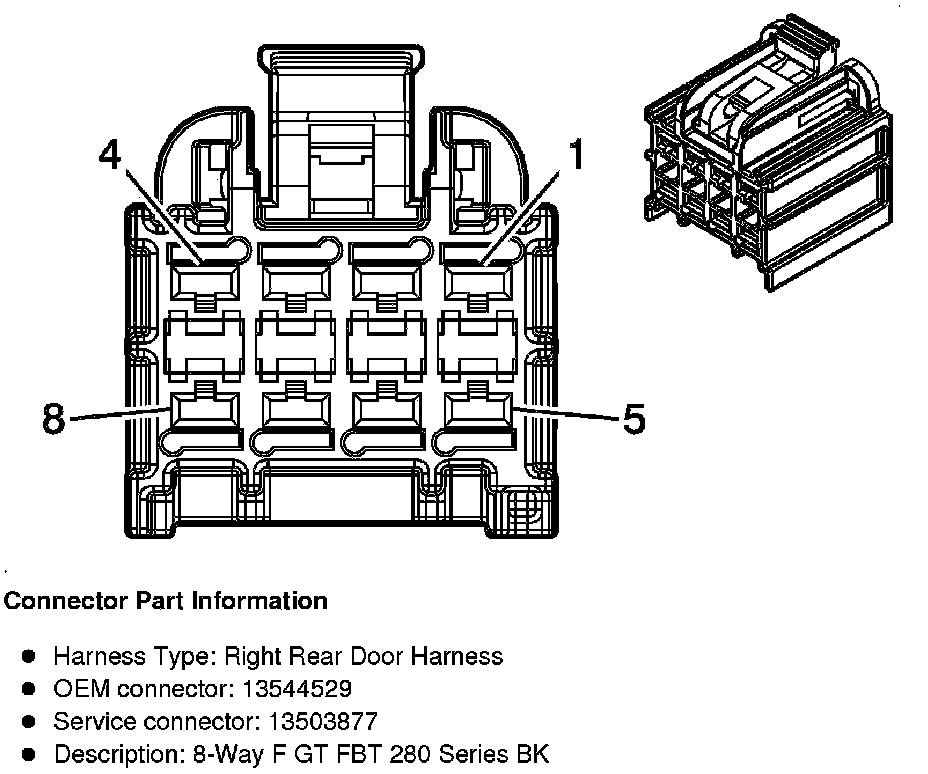

Component Connector End Views

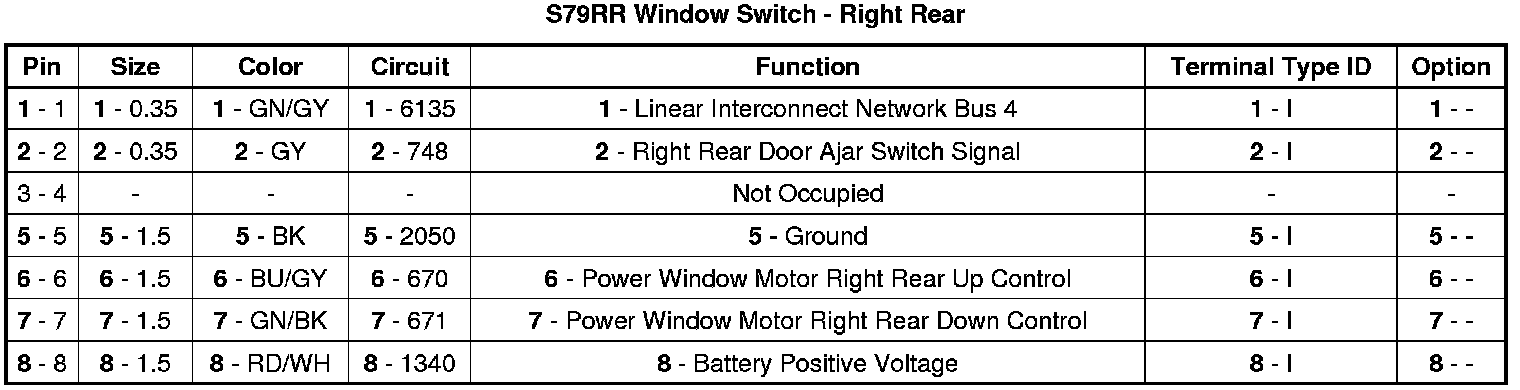

S79RR Window Switch - Right Rear
