Home >> Chevrolet >> 2013 >> Malibu L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - Left Rear

Window Switch - Left Rear

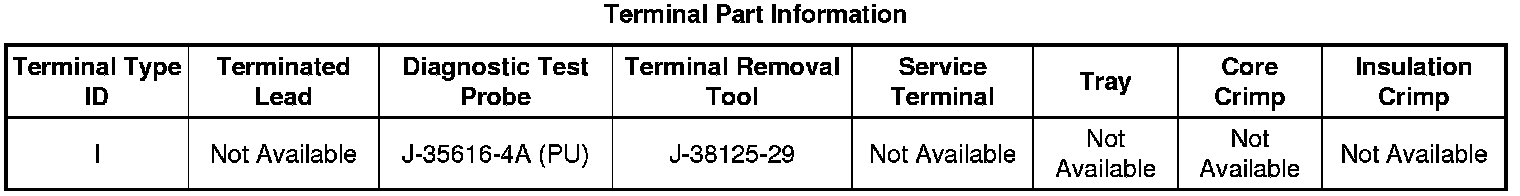

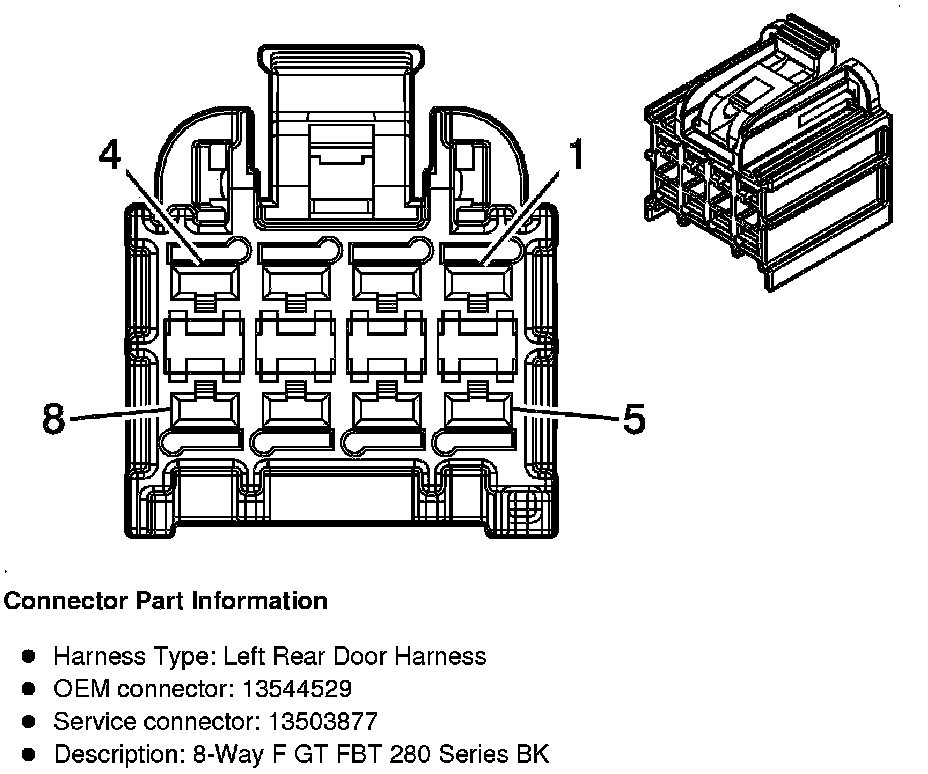

Component Connector End Views

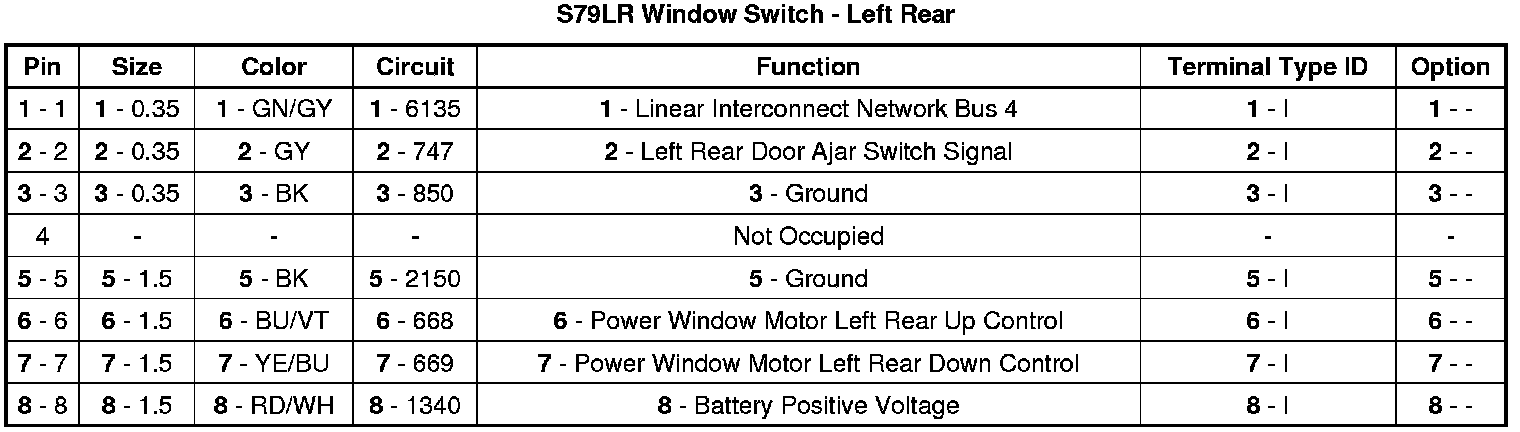

S79LR Window Switch - Left Rear
