Side Impact Sensor - Left Front

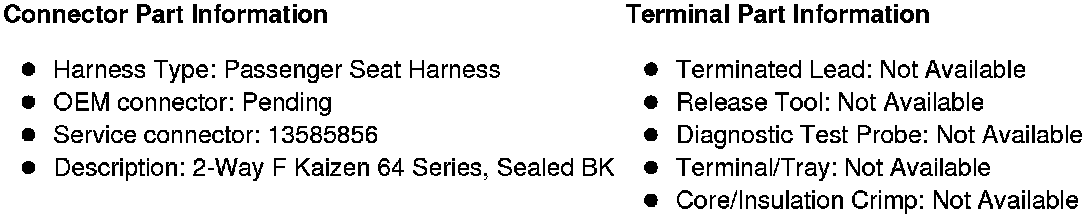

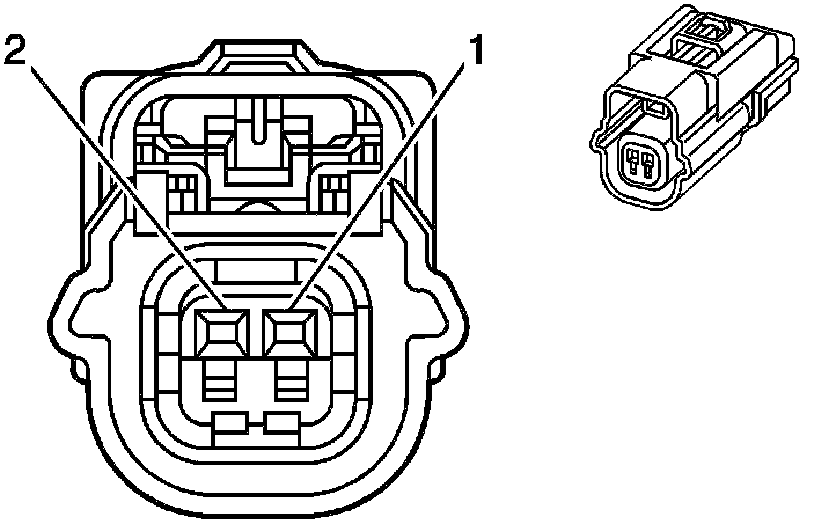

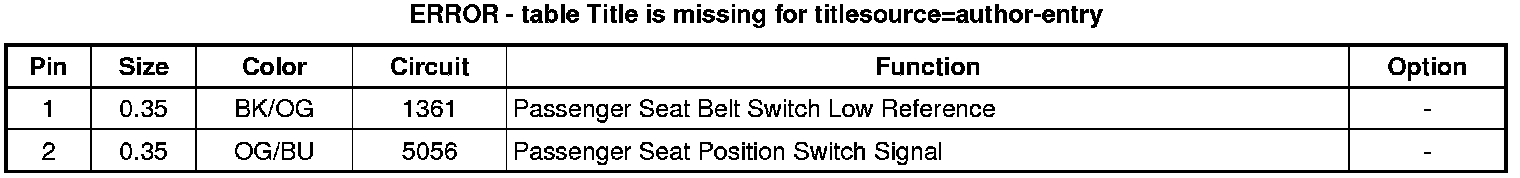

Component Connector End Views

B63LF Side Impact Sensor - Left Front
