LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2013
>>
Malibu L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heated Glass Element
Heated Glass Element

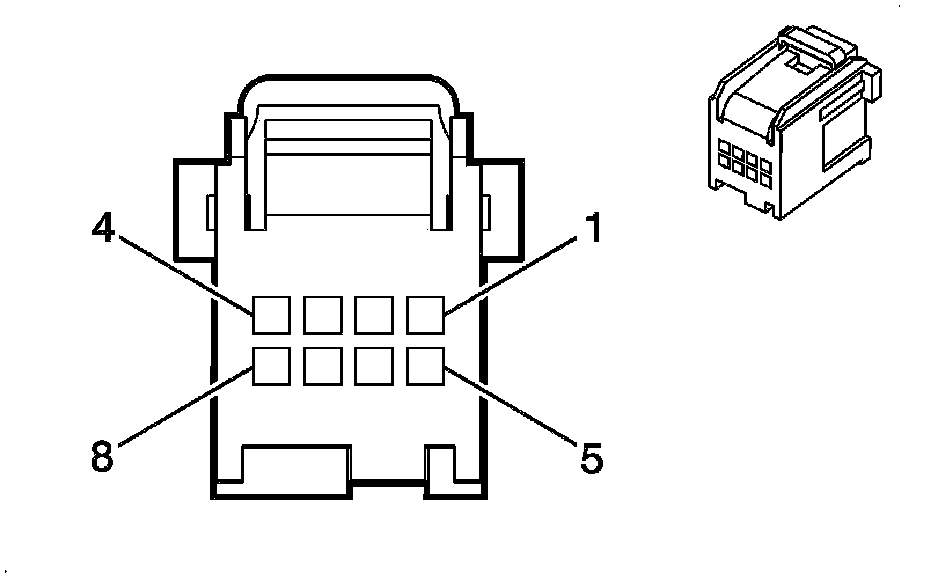

Component Connector End Views
R14L Rear Window Defogger Noise Filter - Left
