Engine Coolant Temperature Sensor 2

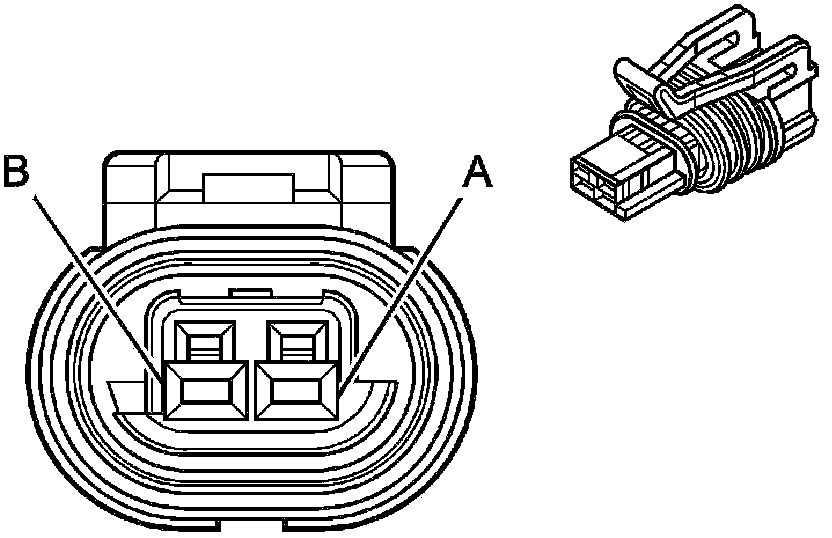

Component Connector End Views

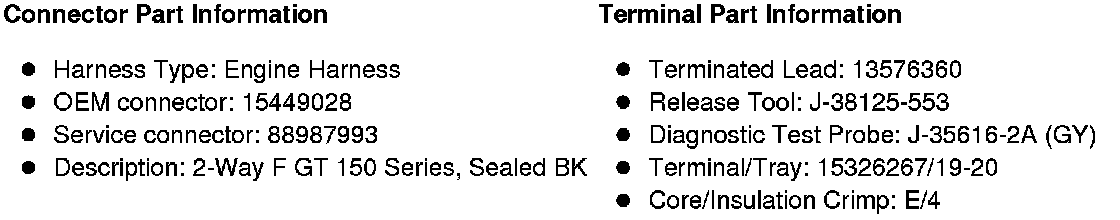

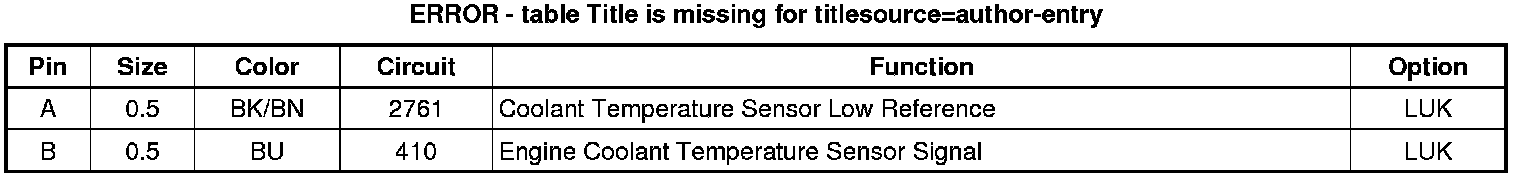

B34B Engine Coolant Temperature Sensor 2 (LCV,LTG)
