Steering Control Module: Locations

Front of Vehicle/Engine Compartment Component Views

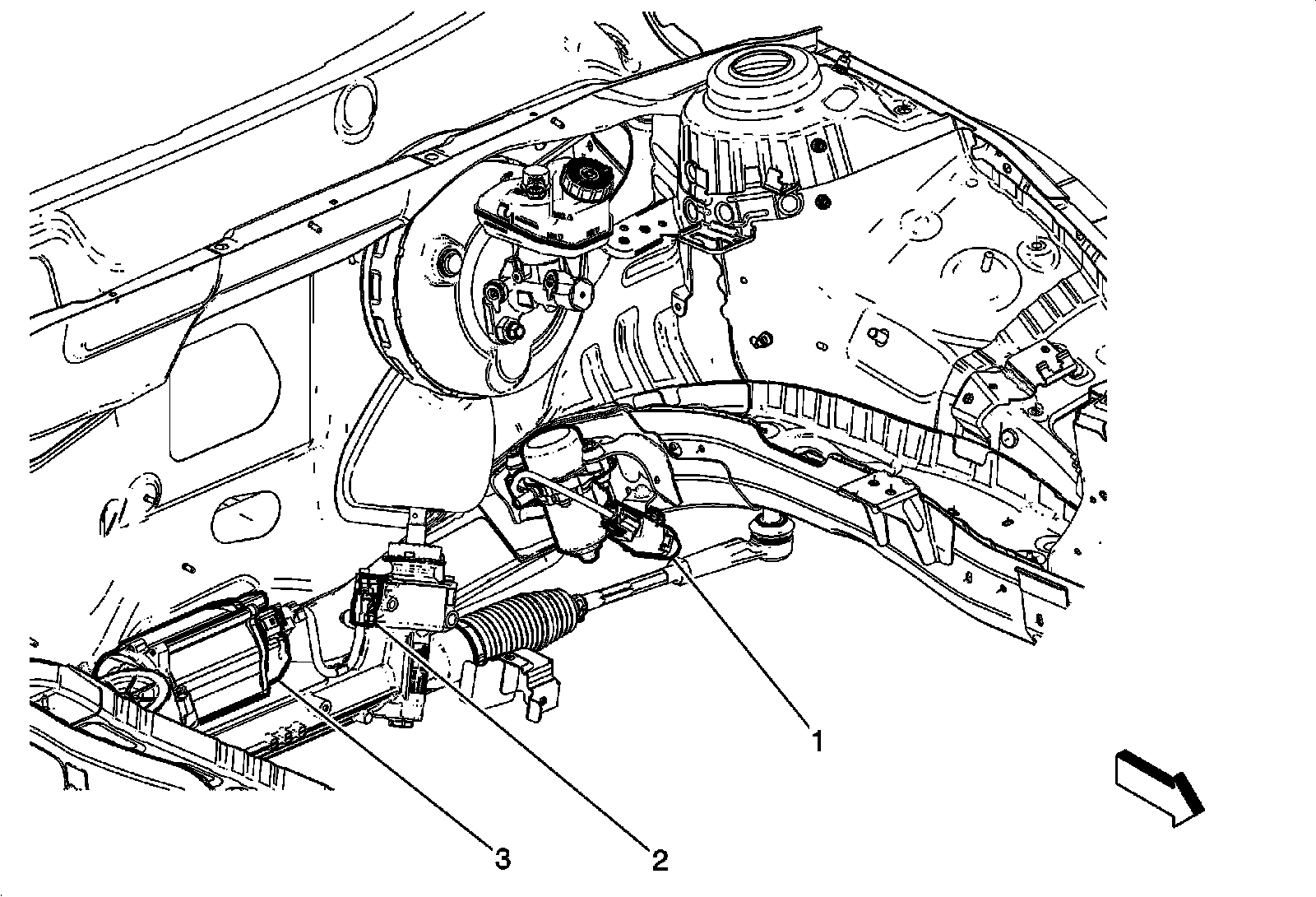

Lower Rear of Engine Compartment Components





1 - M9 Brake Booster Pump Motor

2 - B137 Power Steering Shaft Torque Sensor

3 - K43 Power Steering Control Module
