Keyless Entry Transmitter




Remote Function Schematics

Keyless Entry (without ATH)

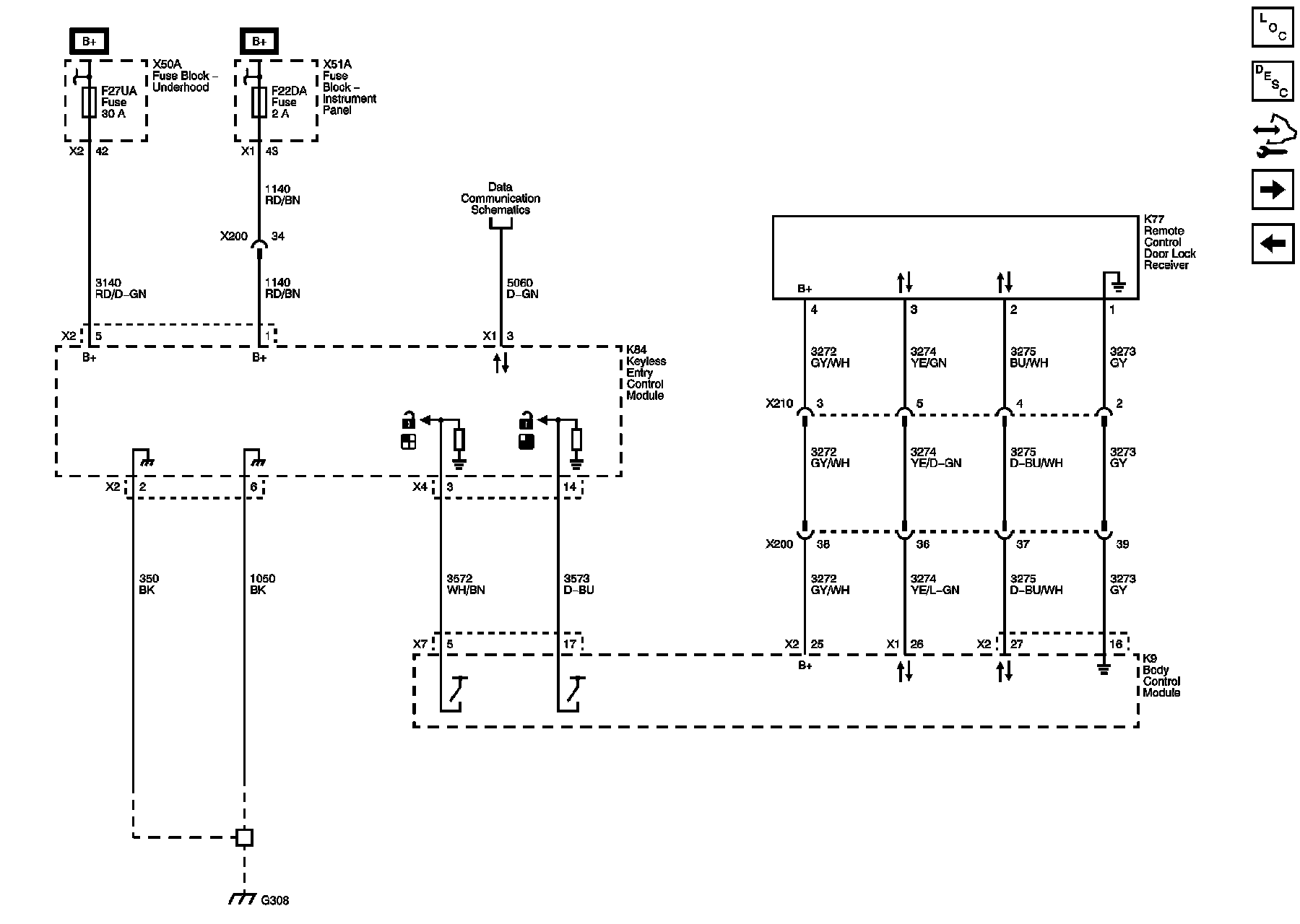

Keyless and Passive Entry (ATH)

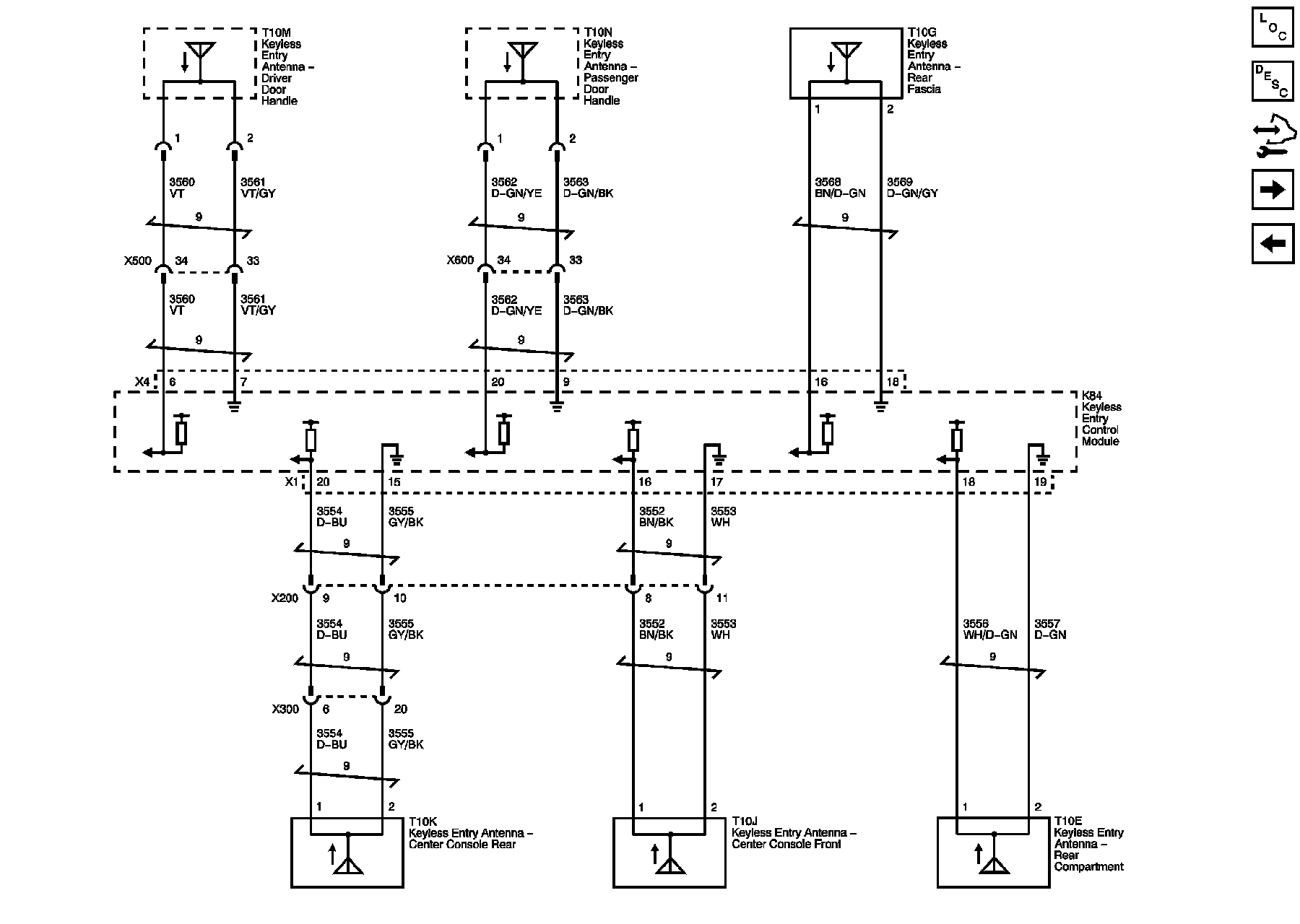

Passive Entry and Passive Start Antennas (ATH)

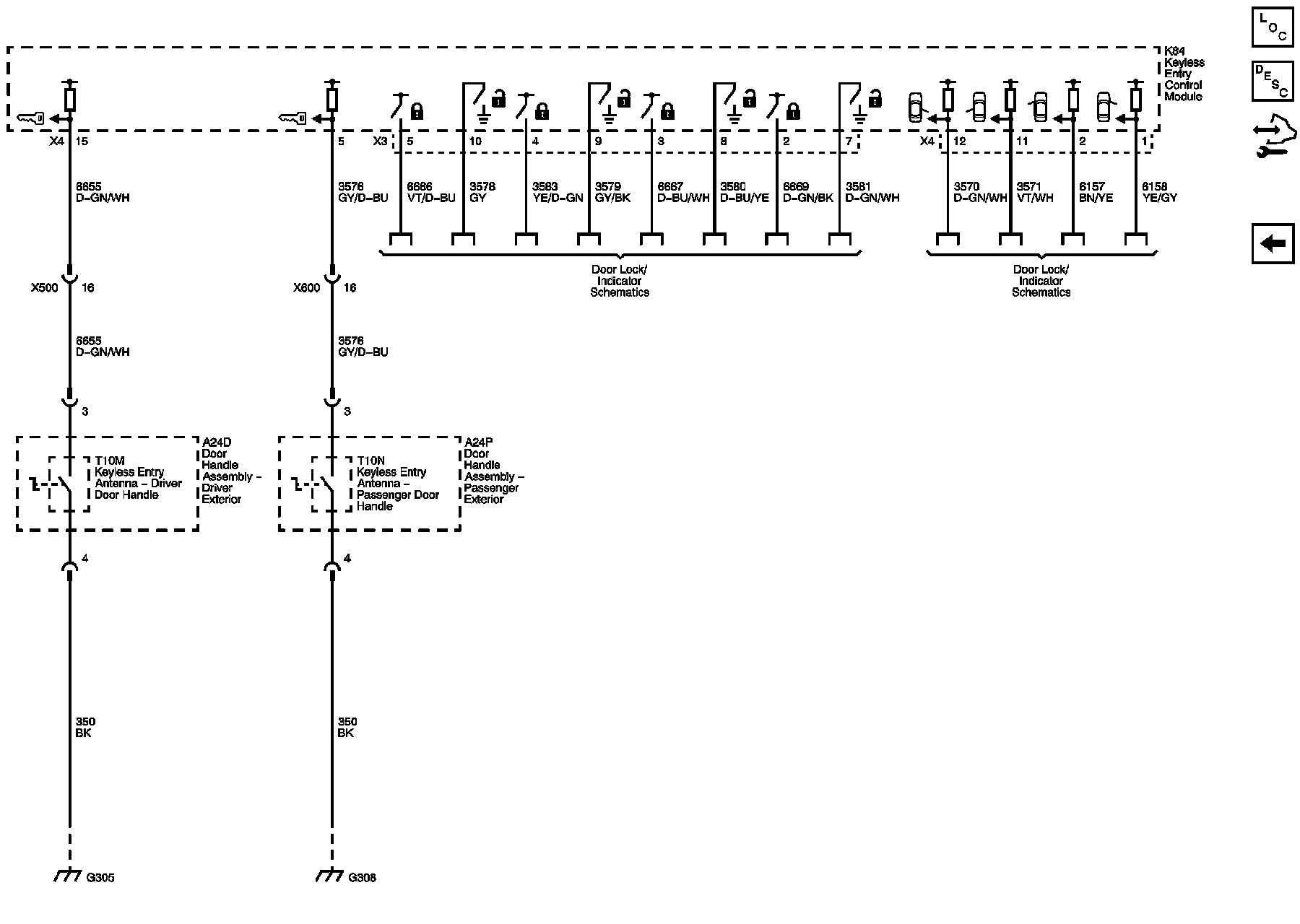

Door Handle Switches and References (ATH)
