Splices By Number




Harness Routing Views

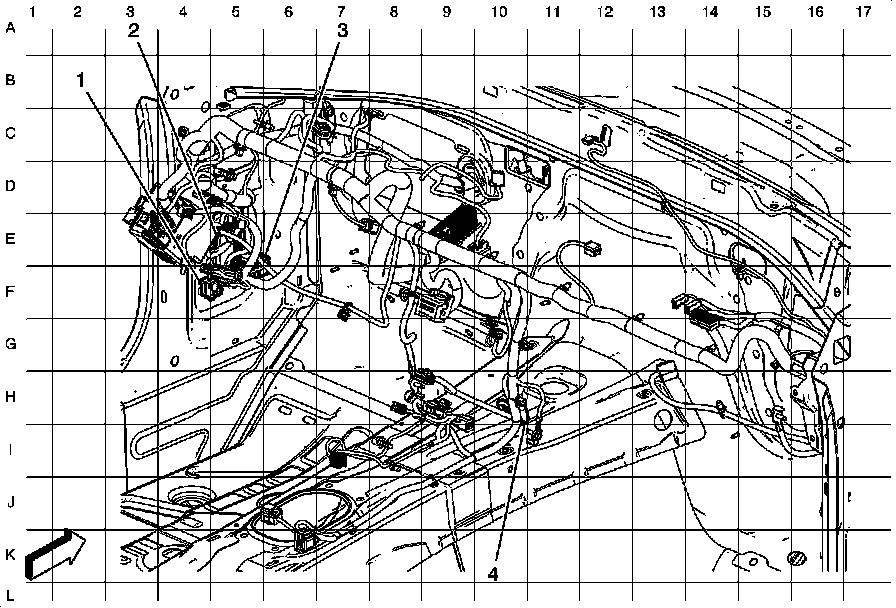

Instrument Panel Harness Routing - Top Right Overhead





1 - X253

2 - X206 (CF5)

3 - X207

4 - JX200
