Home >> Chevrolet >> 2013 >> Camaro V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector End Views By Name >> Electronic Suspension Control Module

Electronic Suspension Control Module

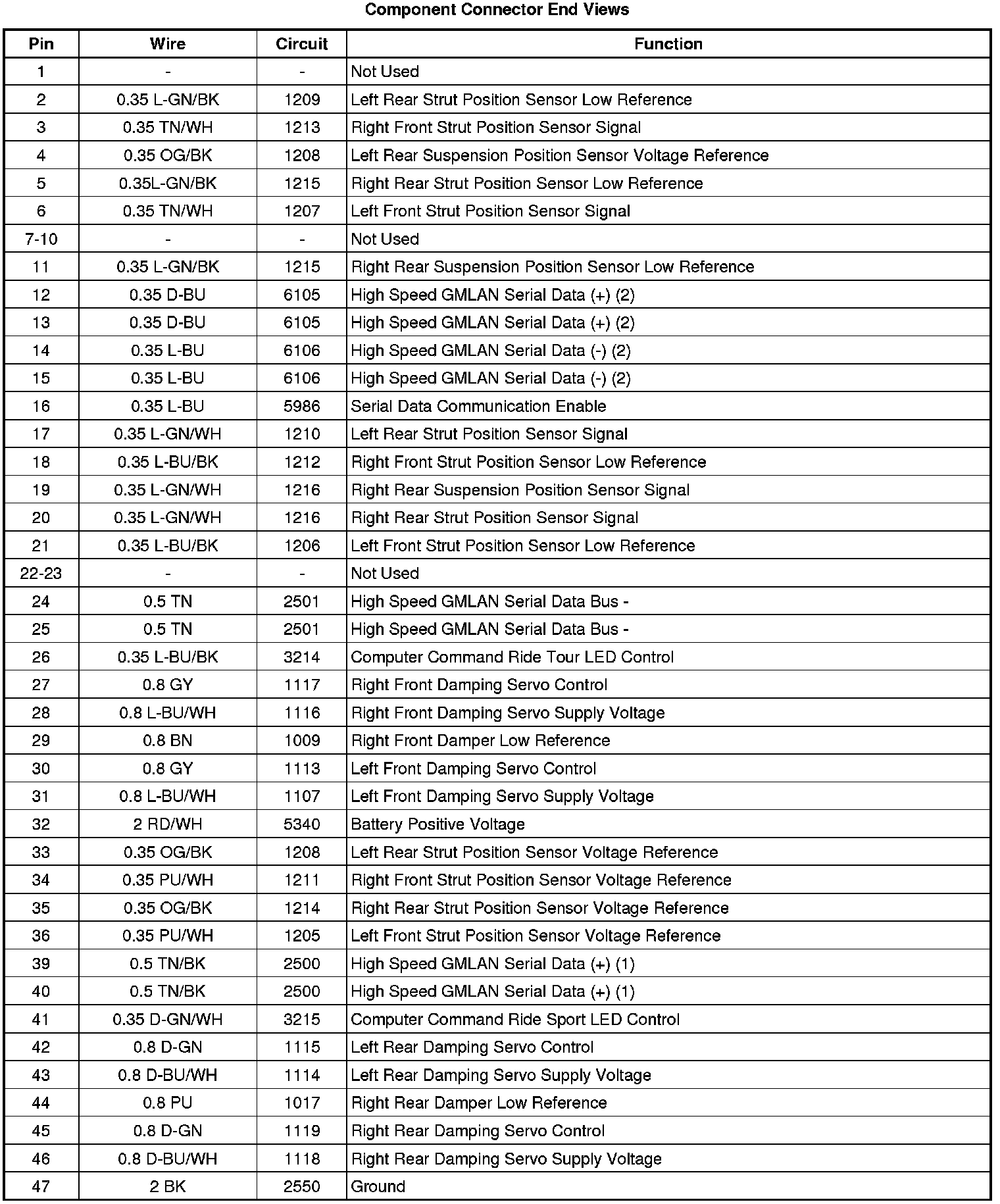

Component Connector End Views

K19 Electronic Suspension Control Module
