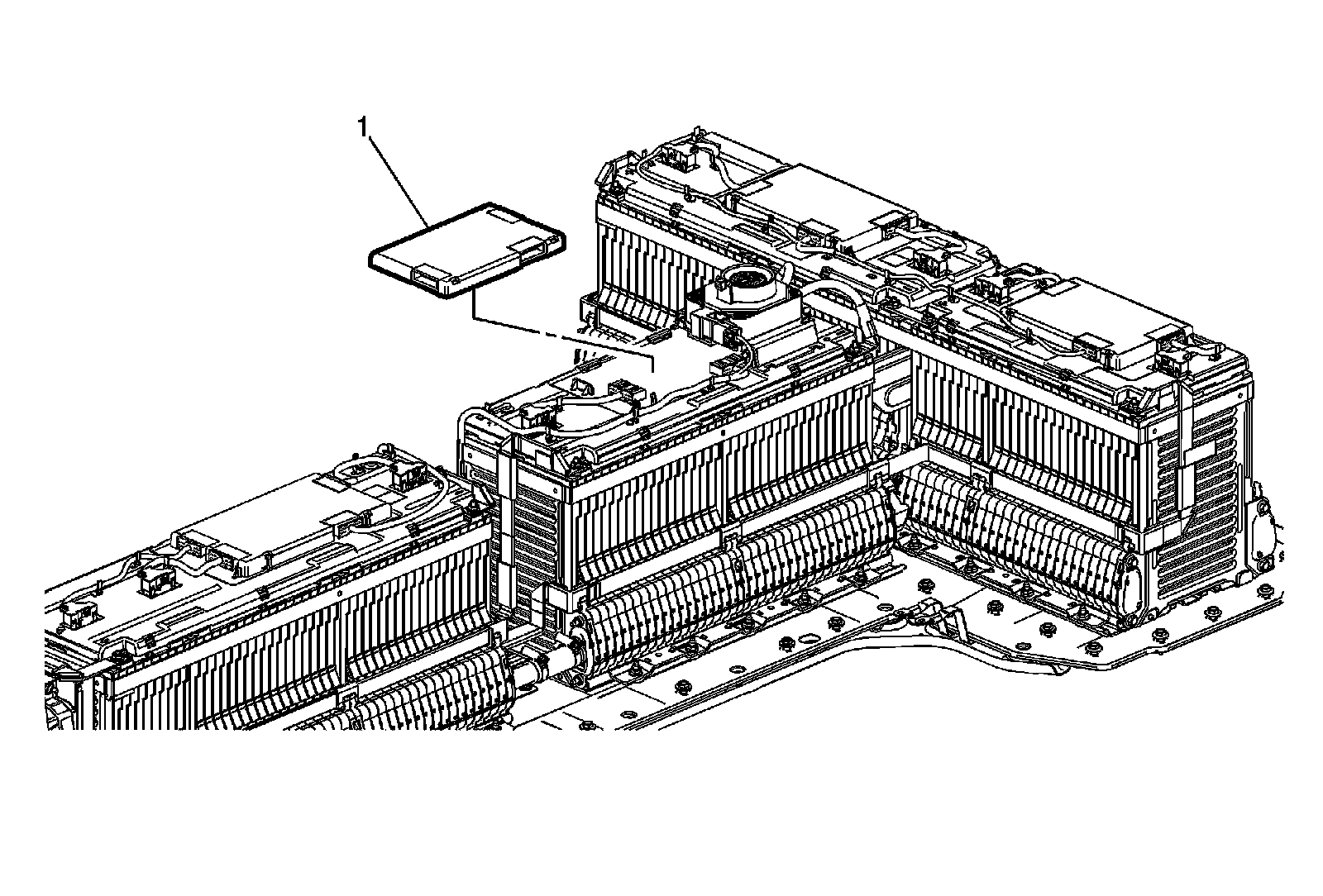

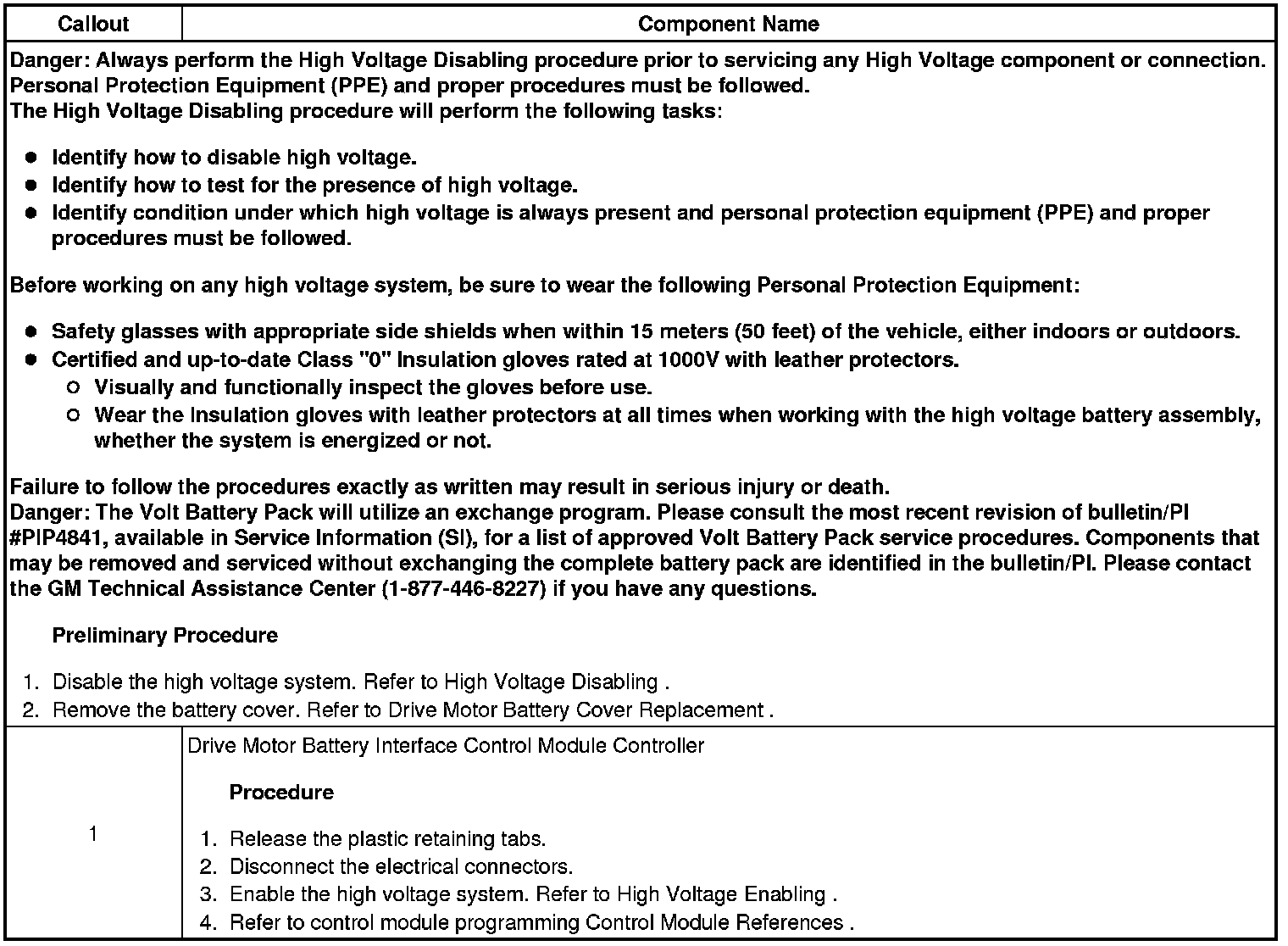

Drive Motor Battery Interface Control Module Replacement (Module 2)
Drive Motor Battery Interface Control Module Replacement (Module 2)
Drive Motor Battery Interface Control Module Replacement (Module 2)
