Air Conditioning and Heater Module Assembly

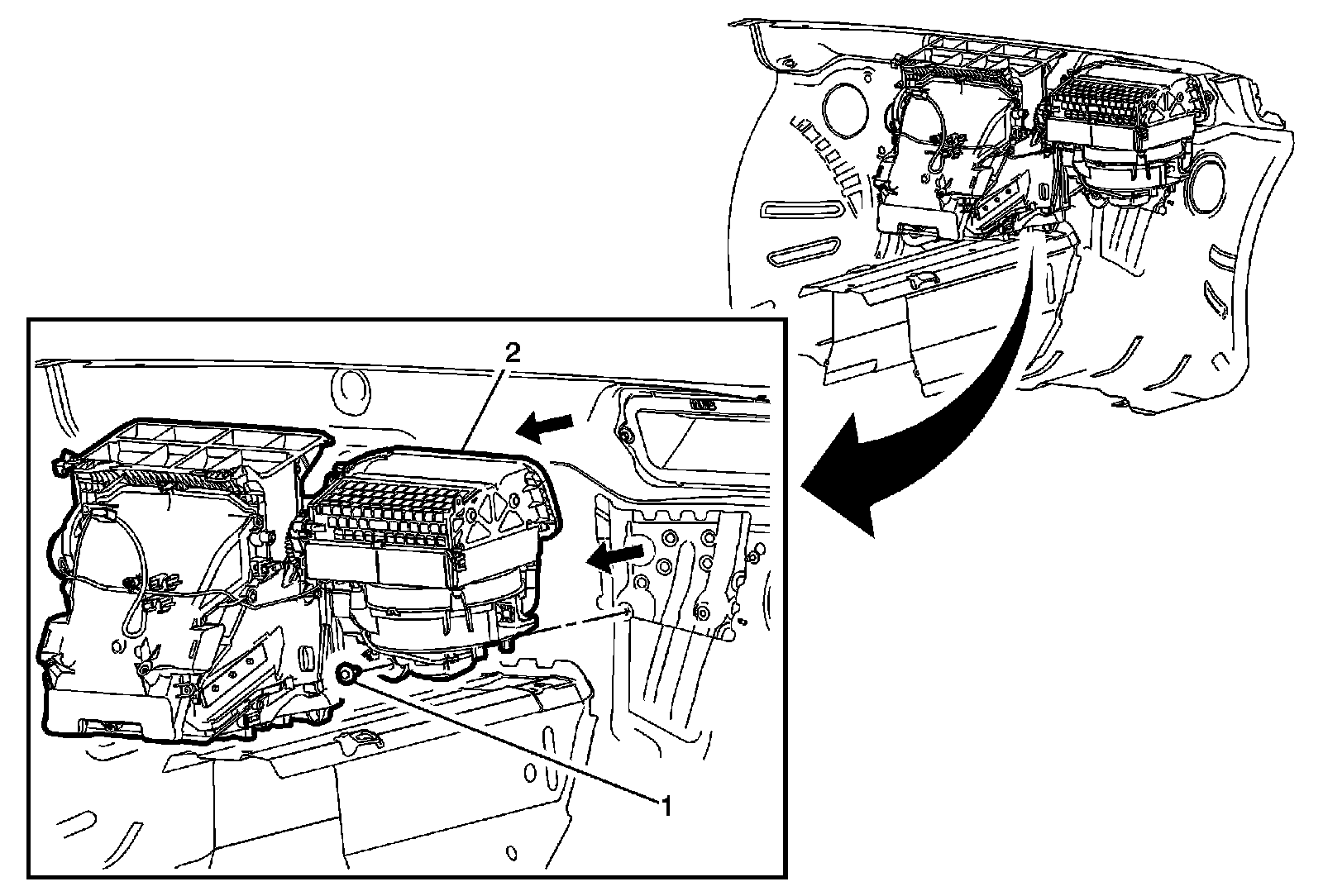

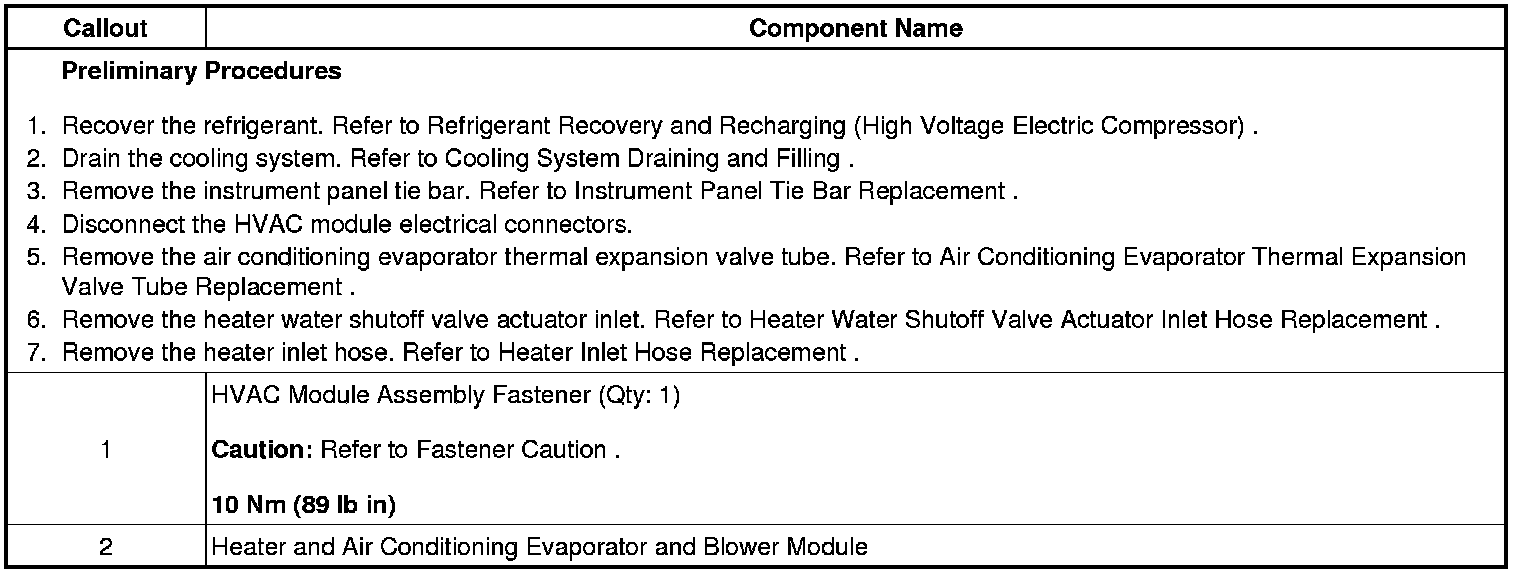

Air Conditioning and Heater Module Assembly Removal and Installation
