Coolant Heater Control Module Jumper Connector
Coolant Heater Control Module Jumper Connector
Component Connector End Views

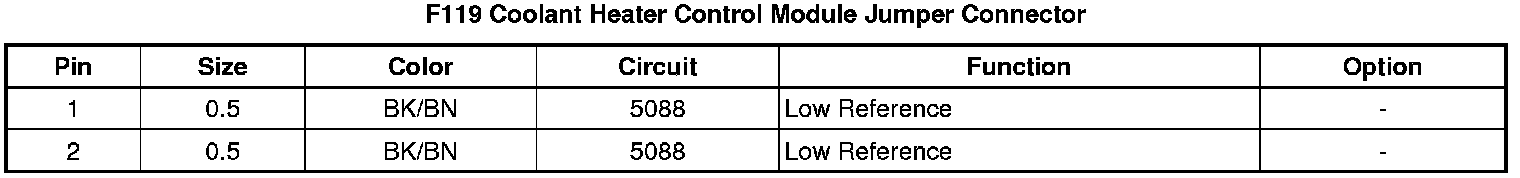

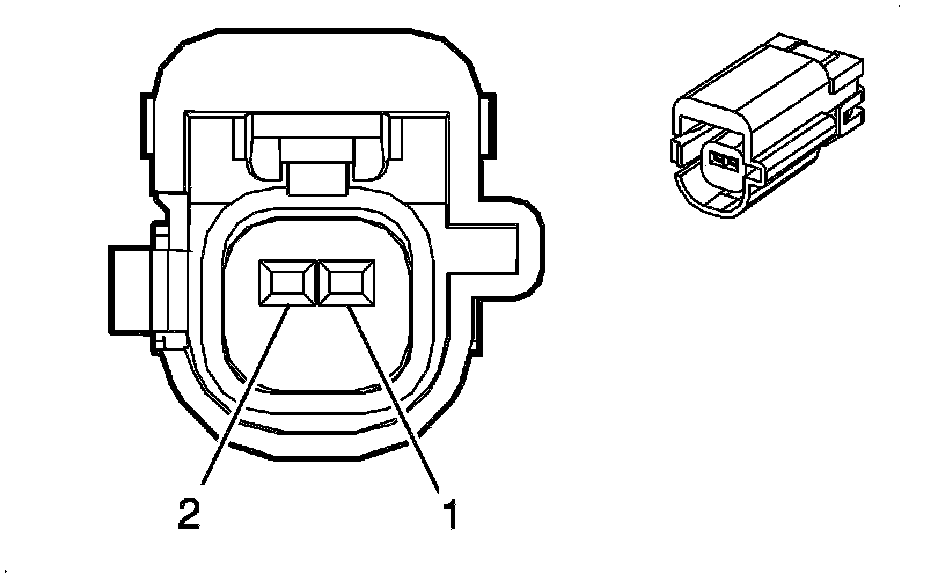

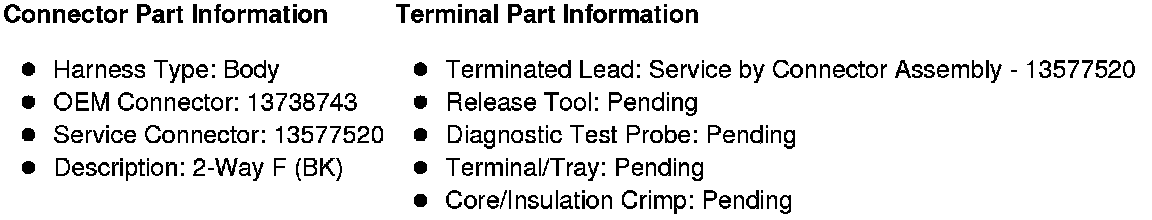

F119 Coolant Heater Control Module Jumper Connector
