Power Inverter Module Assembly X2




Component Connector End Views

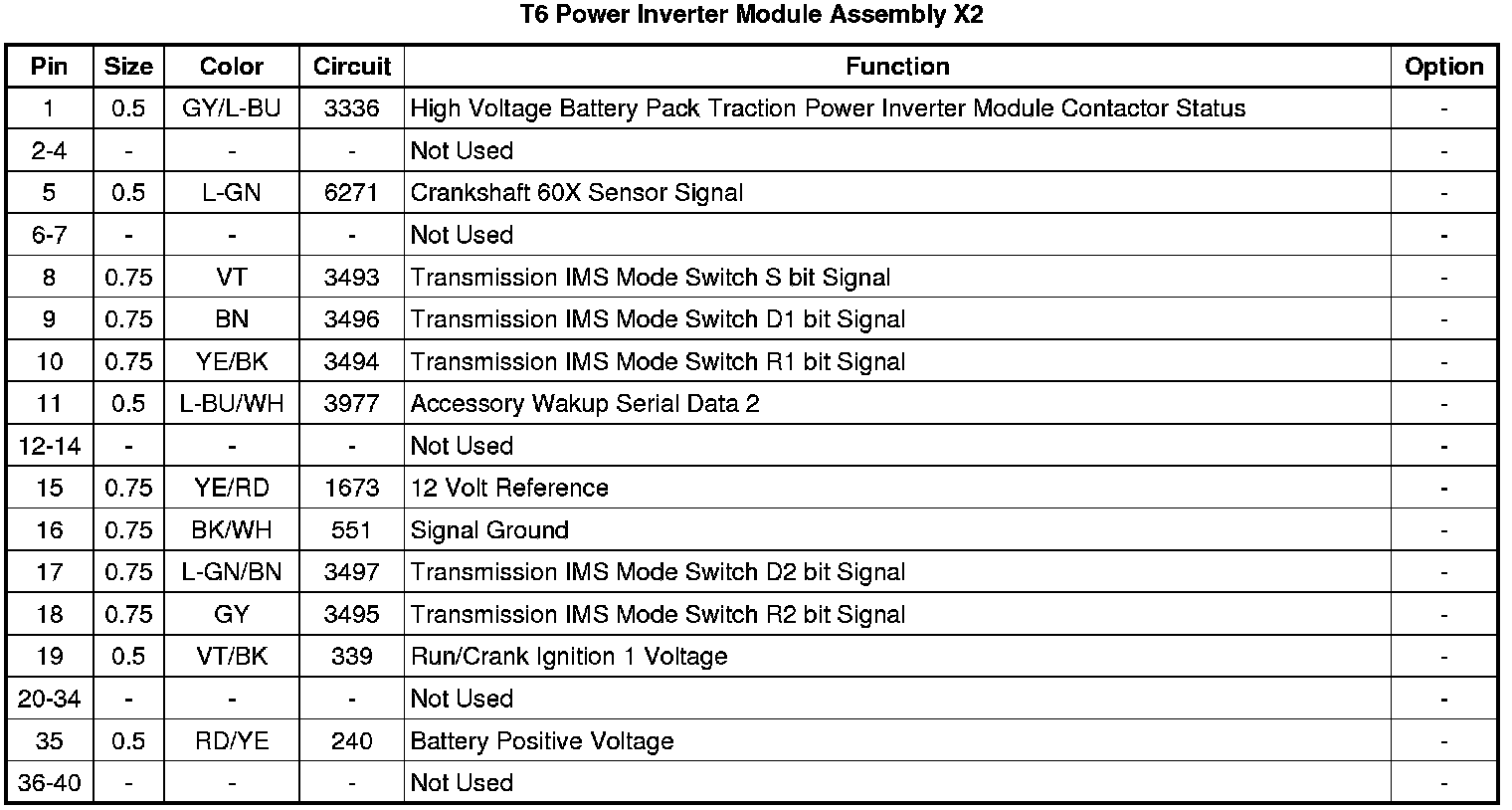

T6 Power Inverter Module Assembly X2
