Hybrid/EV Battery Interface Control Module 3 X3
Hybrid/EV Battery Interface Control Module 3 X3
Component Connector End Views

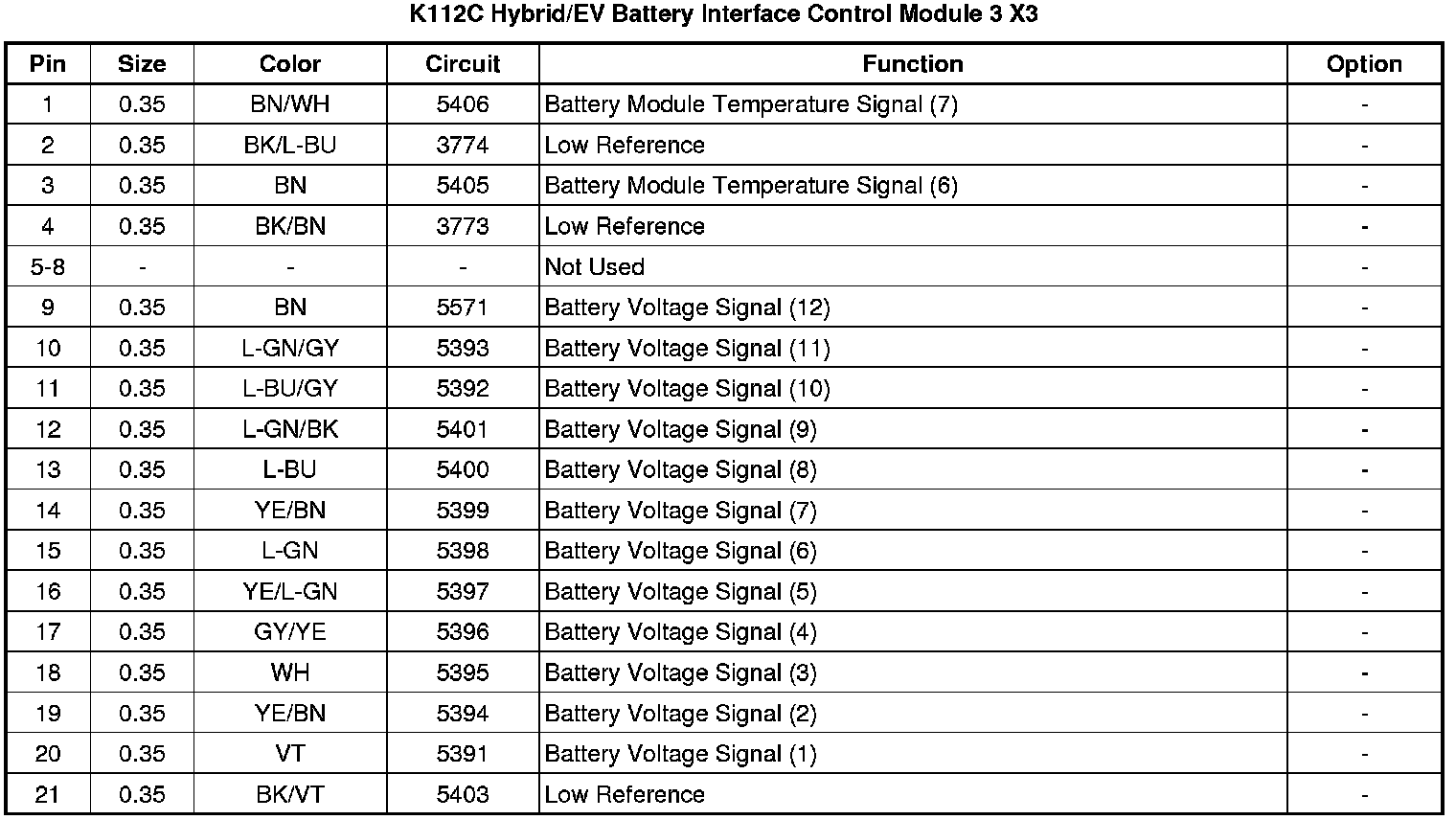

K112C Hybrid/EV Battery Interface Control Module 3 X3
