Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

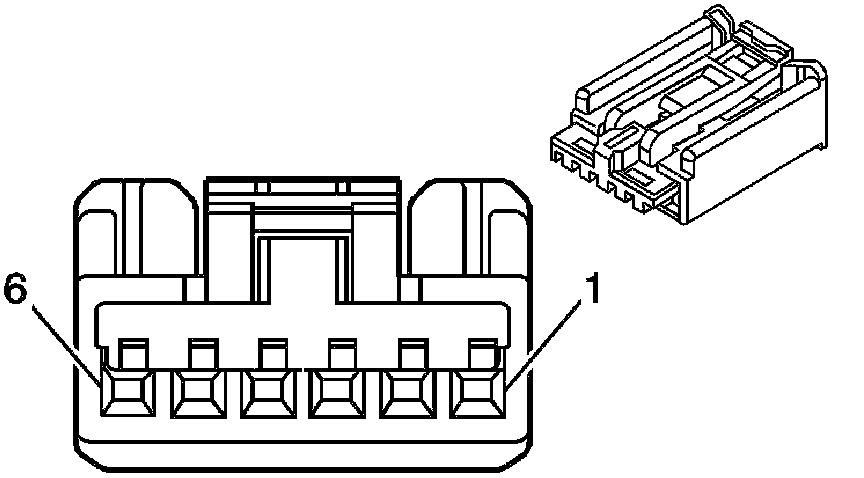

Component Connector End Views

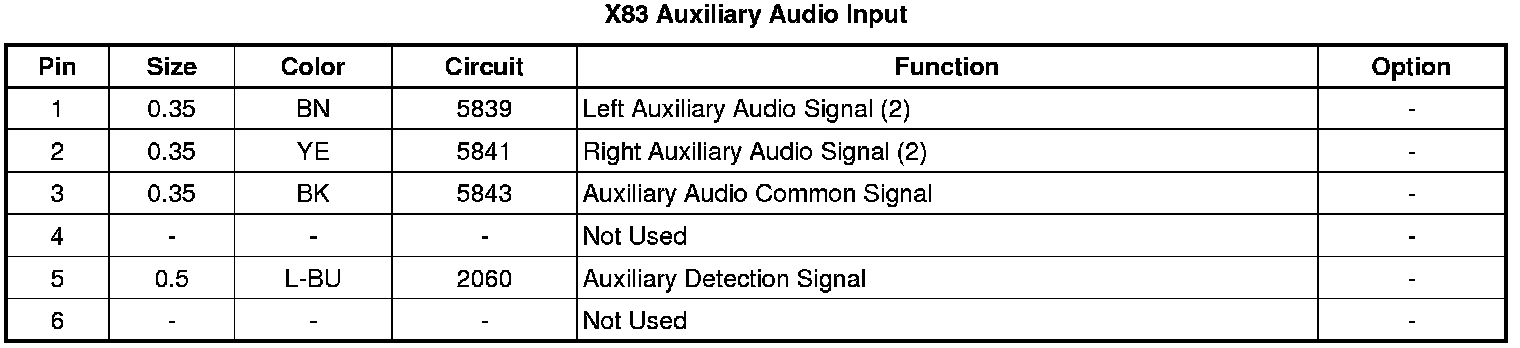

X83 Auxiliary Audio Input
