Washer Fluid Level Switch: Locations

Front of Vehicle/Engine Compartment Component Views

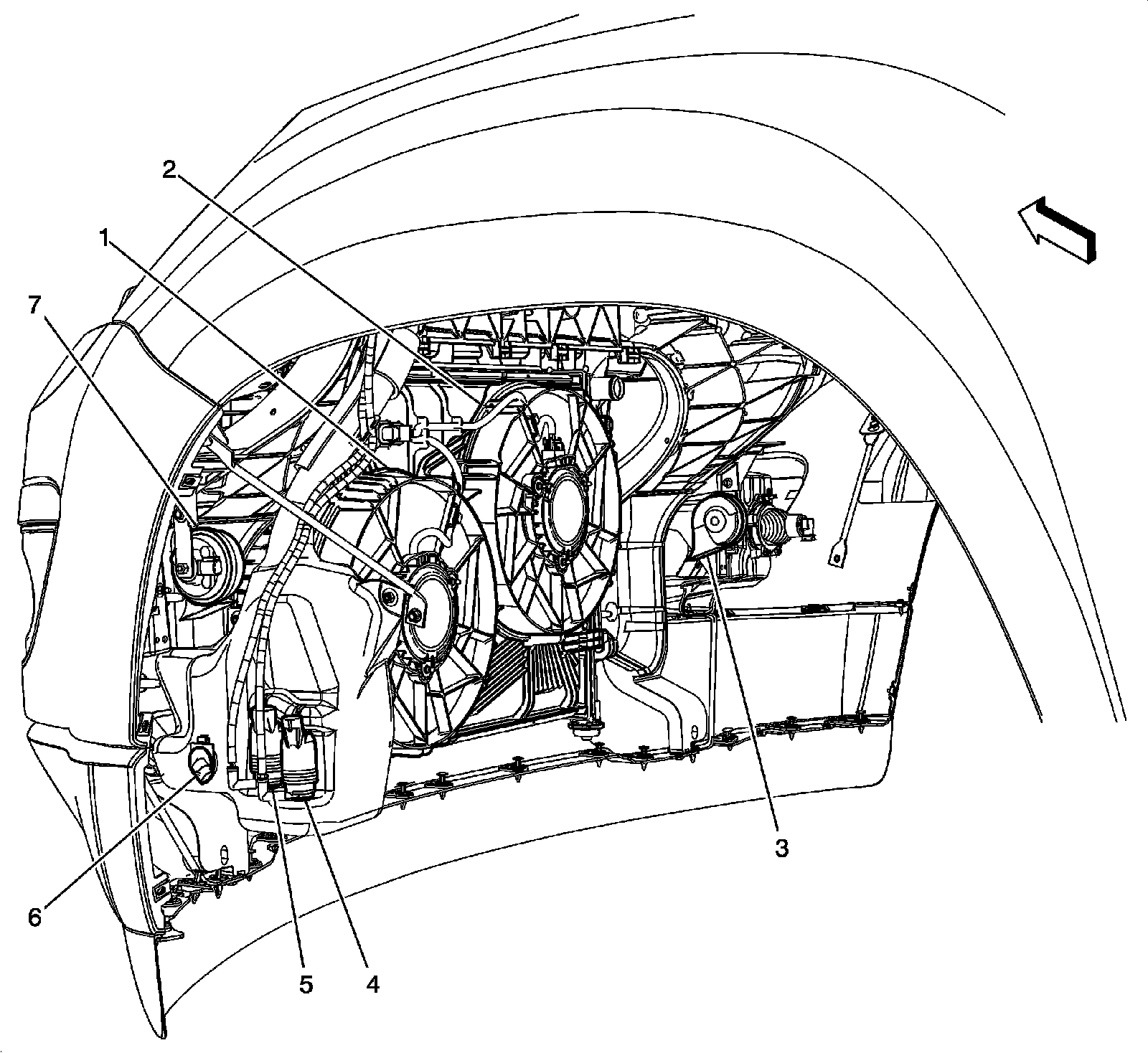

Front Center of the Engine Compartment





1 - Engine Cooling Fan- Left

2 - Engine Cooling Fan- Right

3 - Horn- High Note

4 - Windshield Washer Fluid Pump

5 - Rear Window Washer Fluid Pump

6 - Windshield Washer Fluid Level Switch

7 - Horn- Low Note
