Seat Back Ventilation Heating and Cooling Module - Driver (KB6)

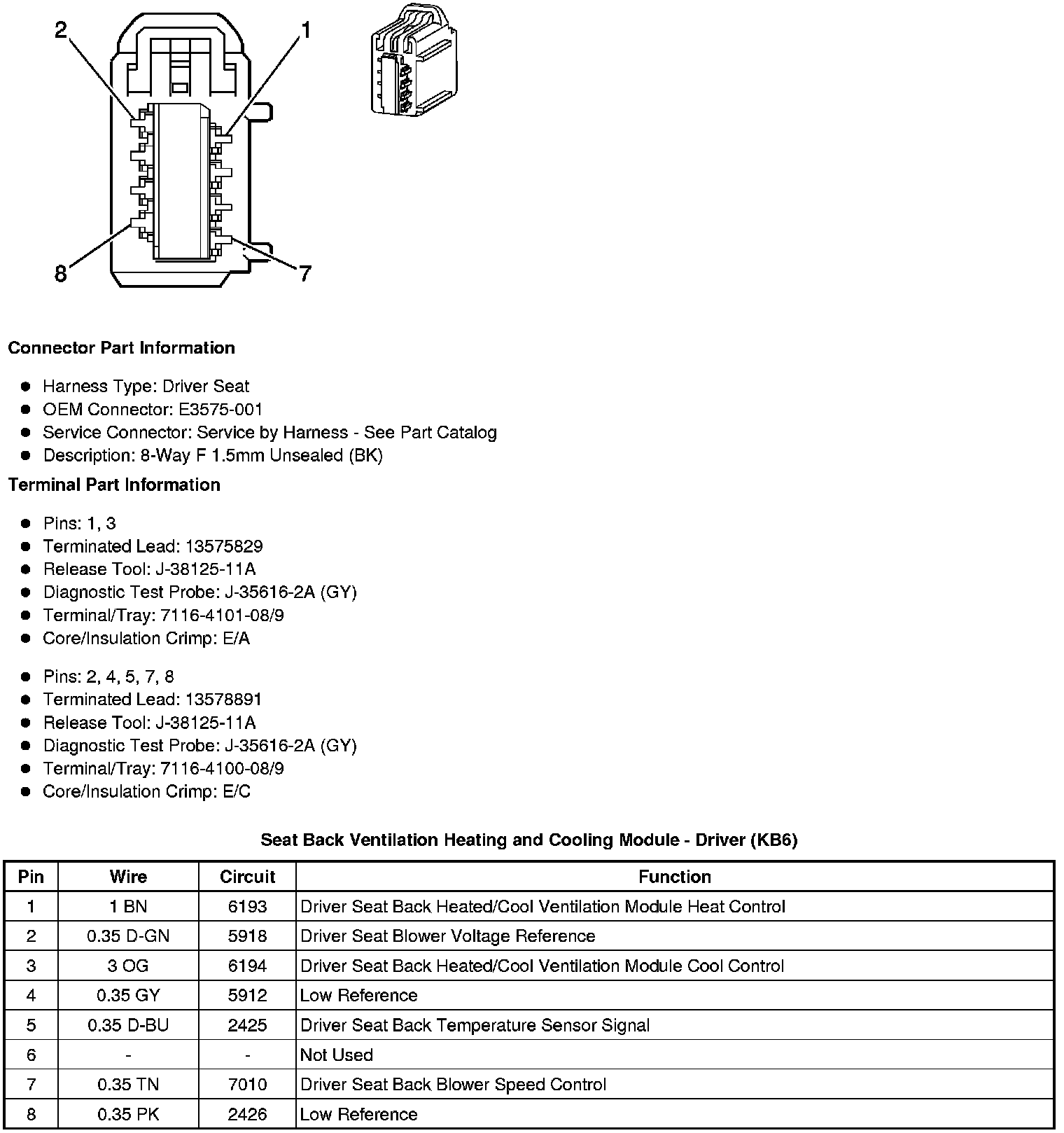

Component Connector End Views

Seat Back Ventilation Heating and Cooling Module - Driver (KB6)
