Fuel Pump Relay
Fuel Pump Relay

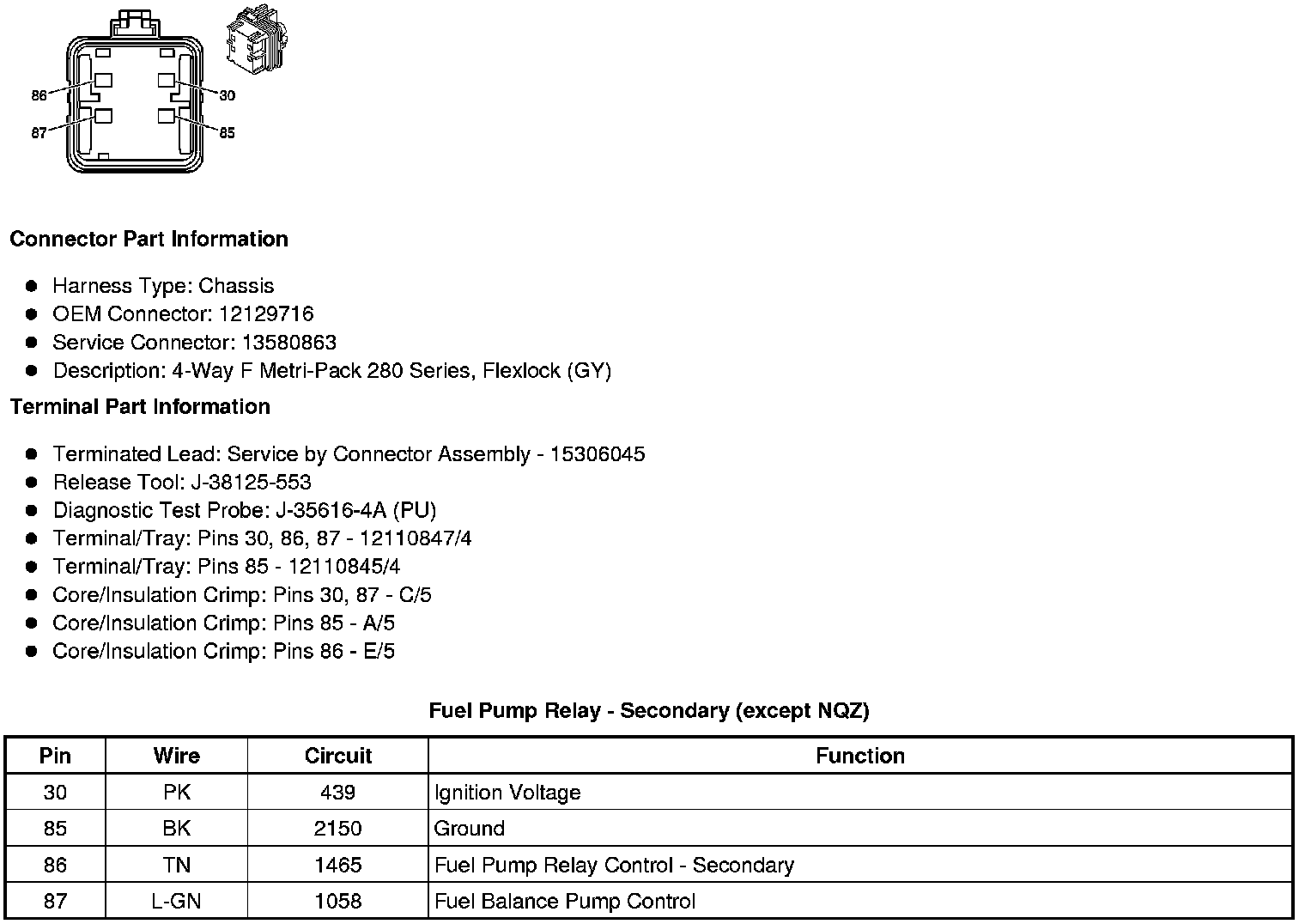

Component Connector End Views
Fuel Pump Relay
- Secondary (except NQZ)
