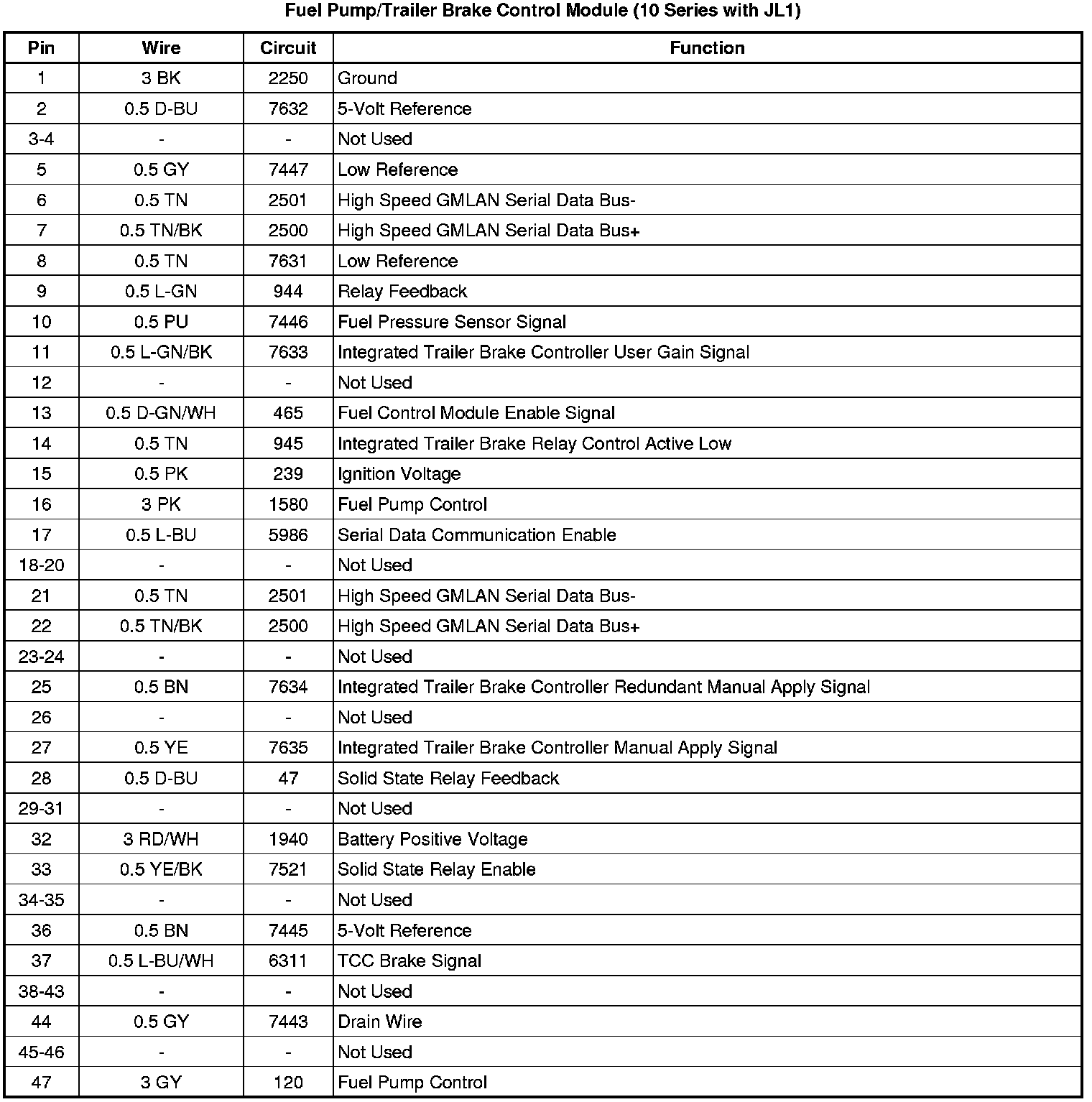

Fuel Pump/Trailer Brake Control Module (10 Series with JL1)

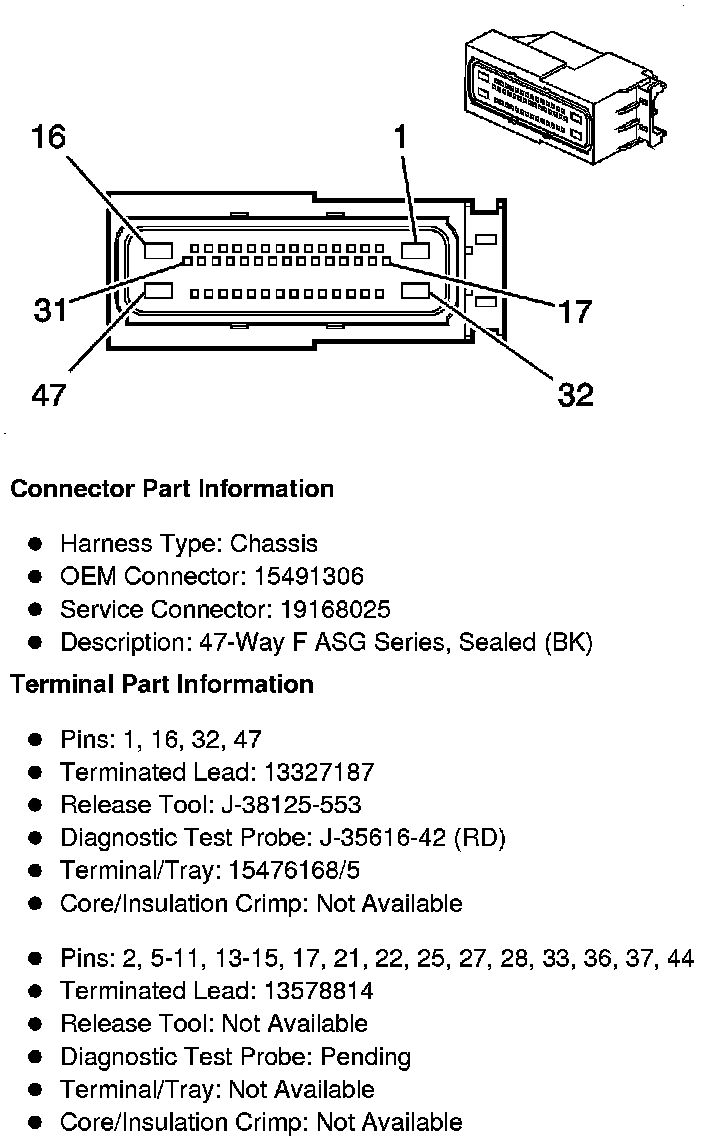

Component Connector End Views
Fuel Pump/
Trailer Brake Control Module
(10 Series with JL1)
