Engine - Coolant Temperature Sensor/Switch
Engine - Coolant Temperature Sensor/Switch

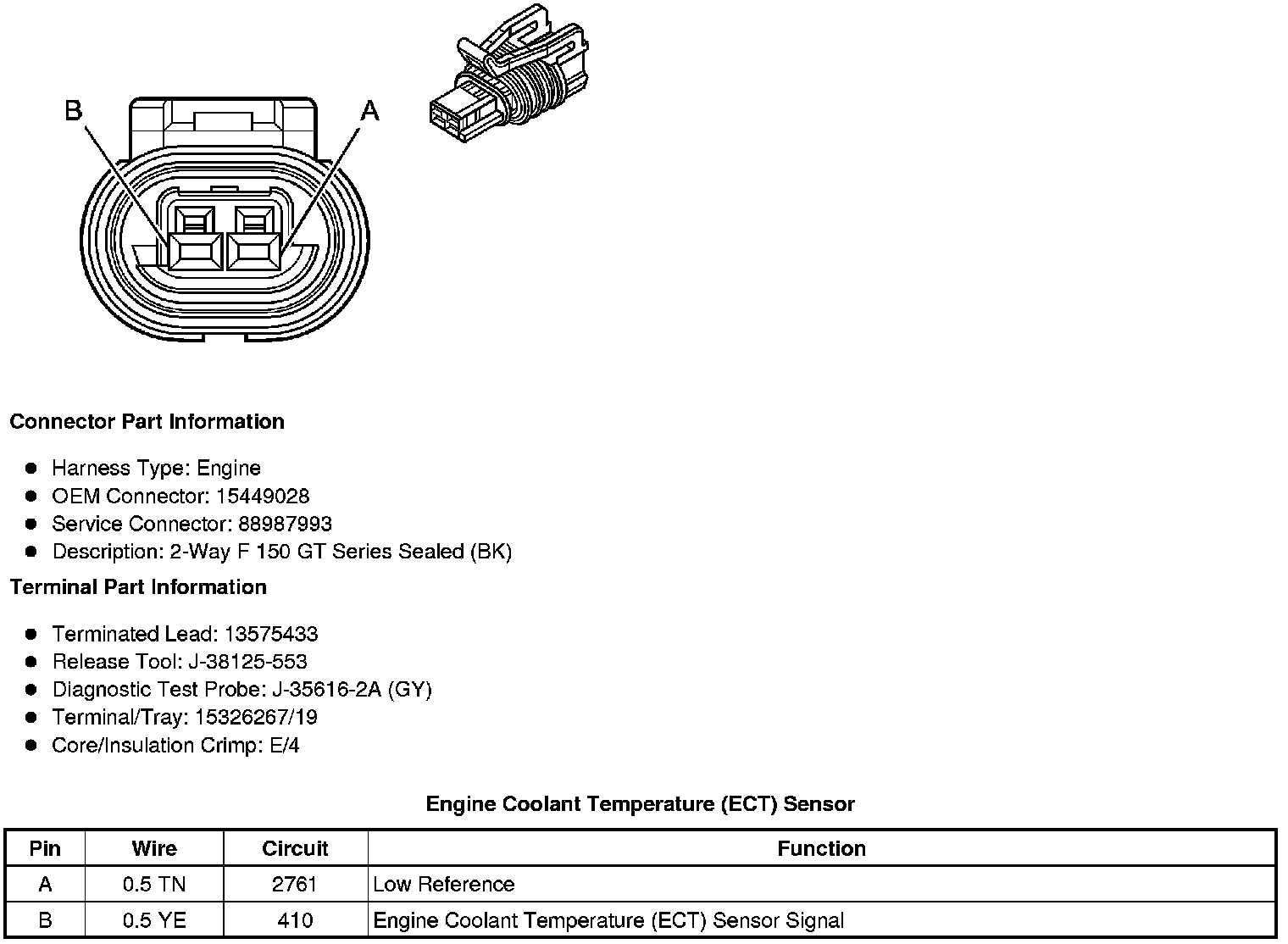

Component Connector End Views
Engine Coolant Temperature (ECT) Sensor
