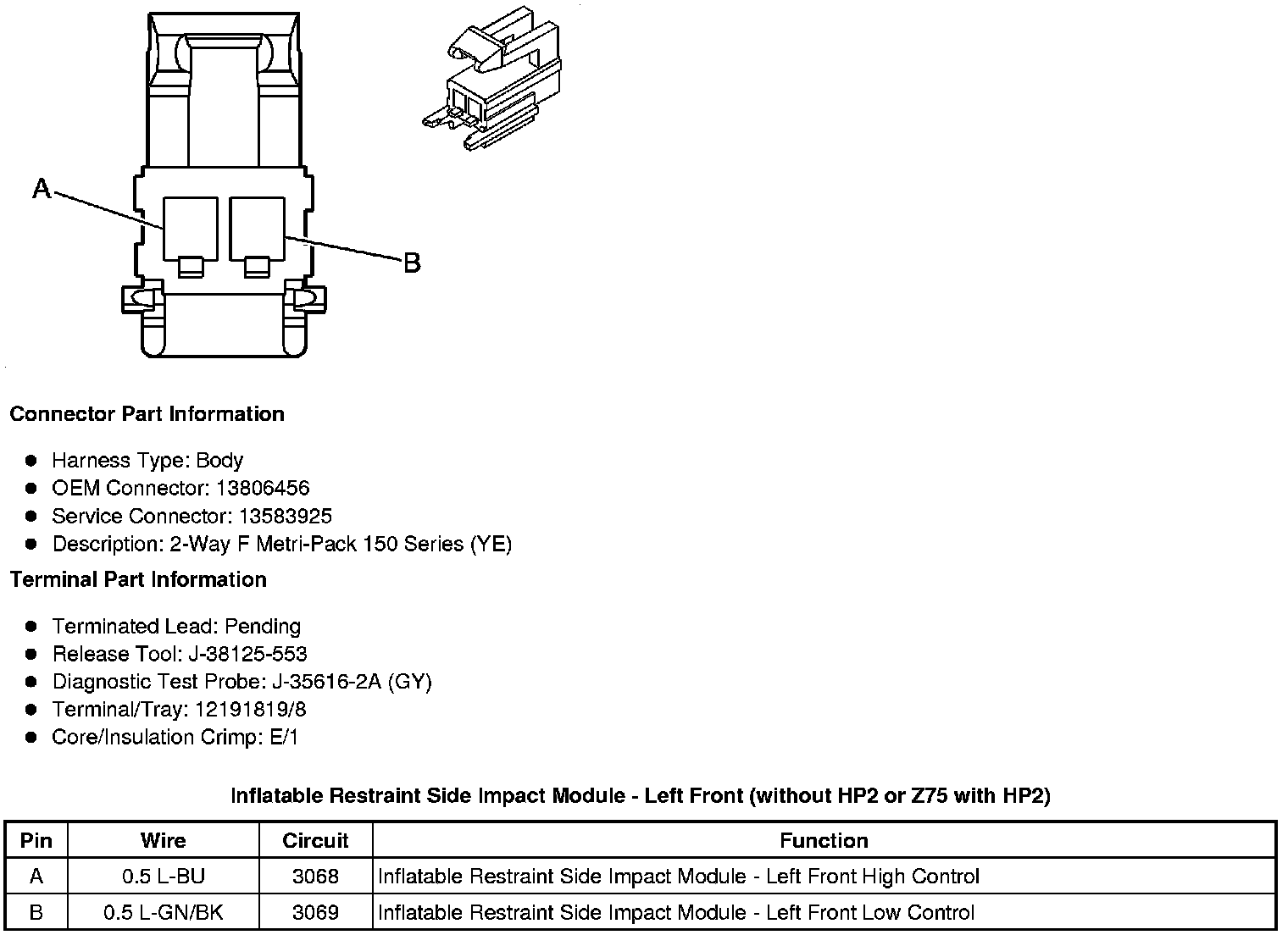

Inflatable Restraint Side Impact Module - Left Front




Component Connector End Views

Inflatable Restraint Side Impact Module - Left Front (without HP2 or Z75 with HP2)
