Turn Signal/Multifunction Switch X4 (C25)
Turn Signal/Multifunction Switch X4 (C25)
Component Connector End Views

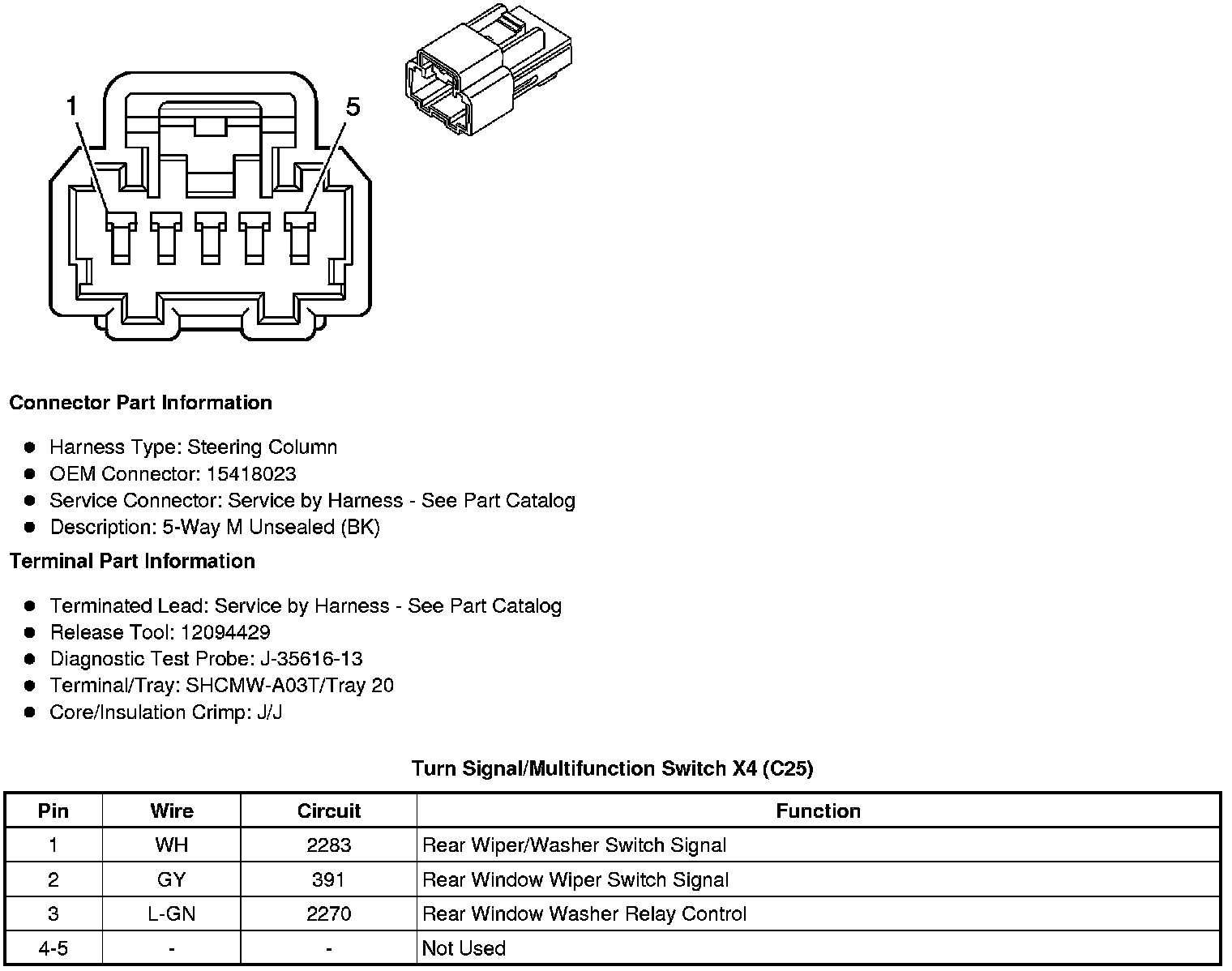

Turn Signal/Multifunction Switch X4 (C25)
