Seat Temperature Control Module
>>

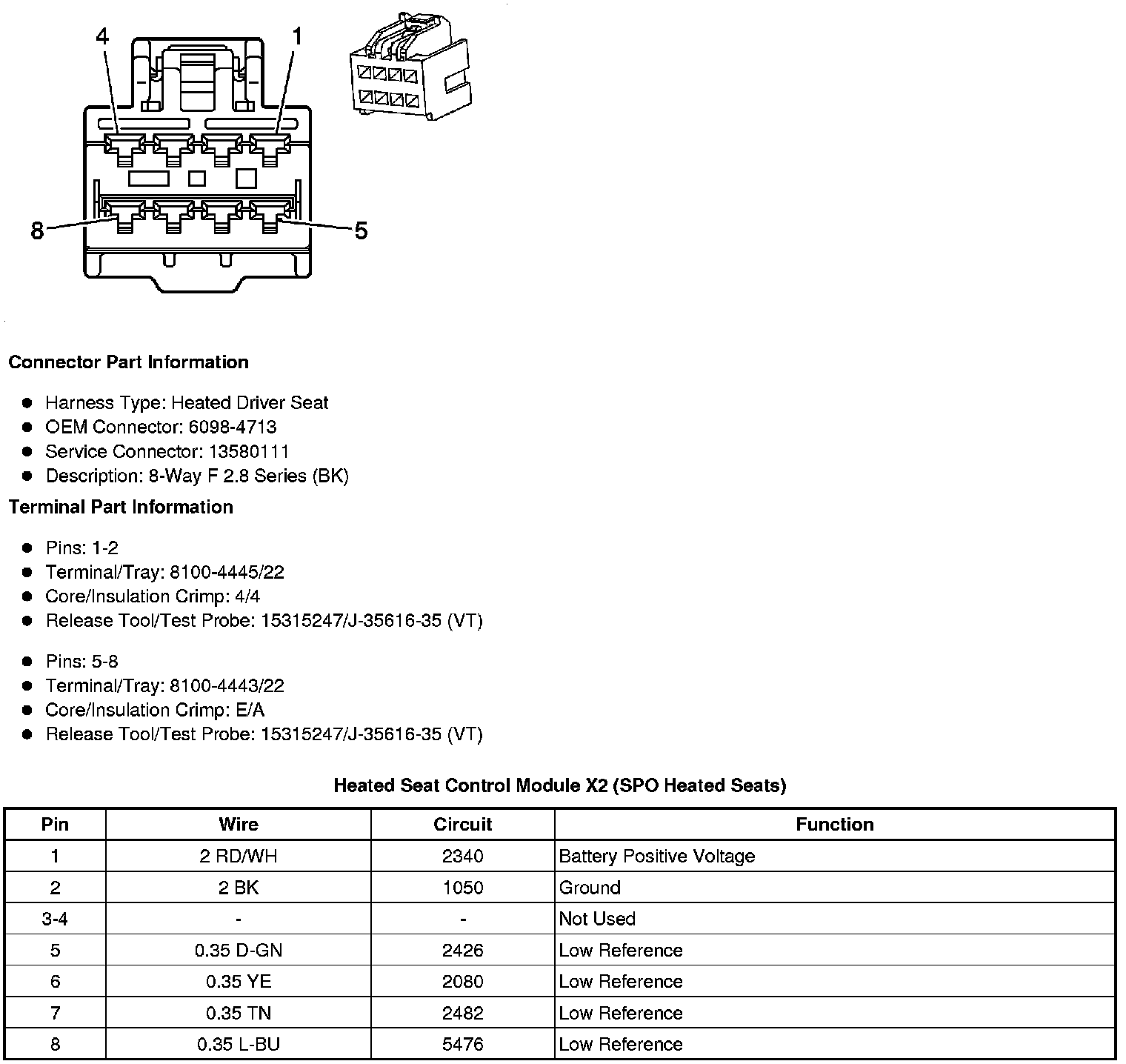

Heated Seat Control Module X2 (SPO Heated Seats)
Heated Seat Control Module X2 (SPO Heated Seats)
Component Connector End Views
Heated Seat Control Module X2 (SPO Heated Seats)
