HVAC Control Module X2 (C67, C42 or MEX)
HVAC Control Module X2 (C67, C42 or MEX)
Component Connector End Views

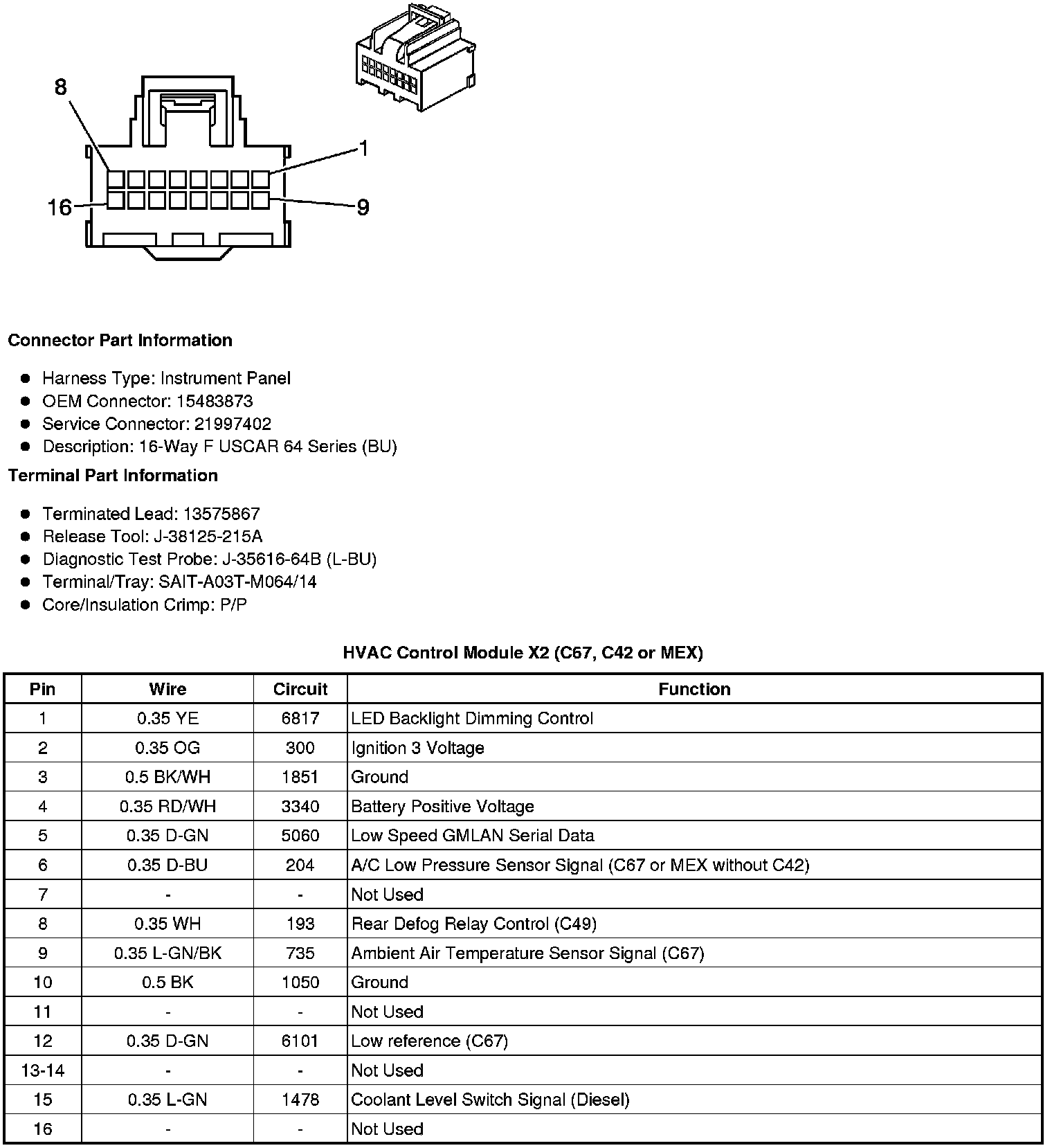

HVAC Control Module X2 (C67, C42 or MEX)
