Transmission Control Module (TCM) (MW7)
Transmission Control Module (TCM) (MW7)

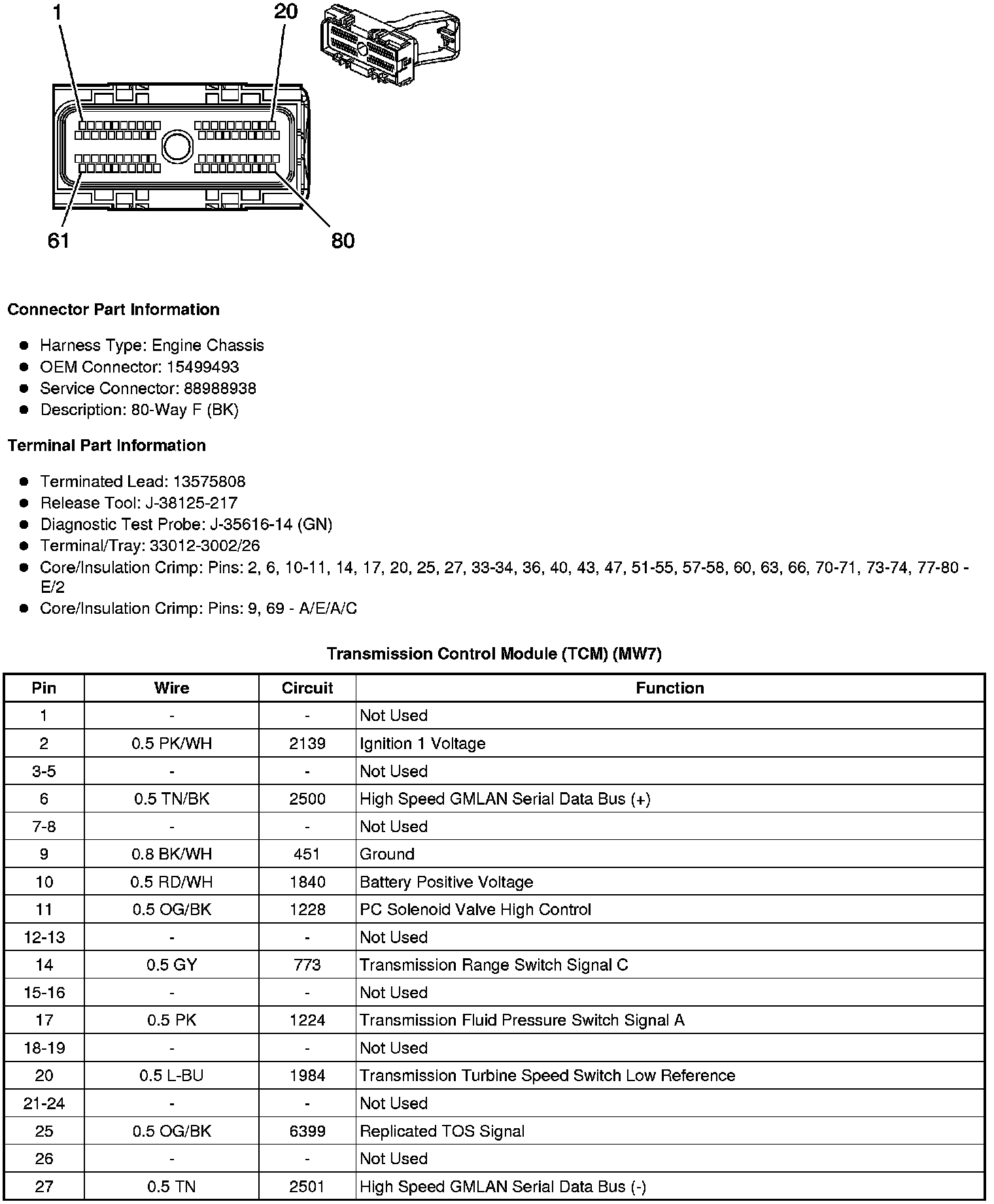

Component Connector End Views

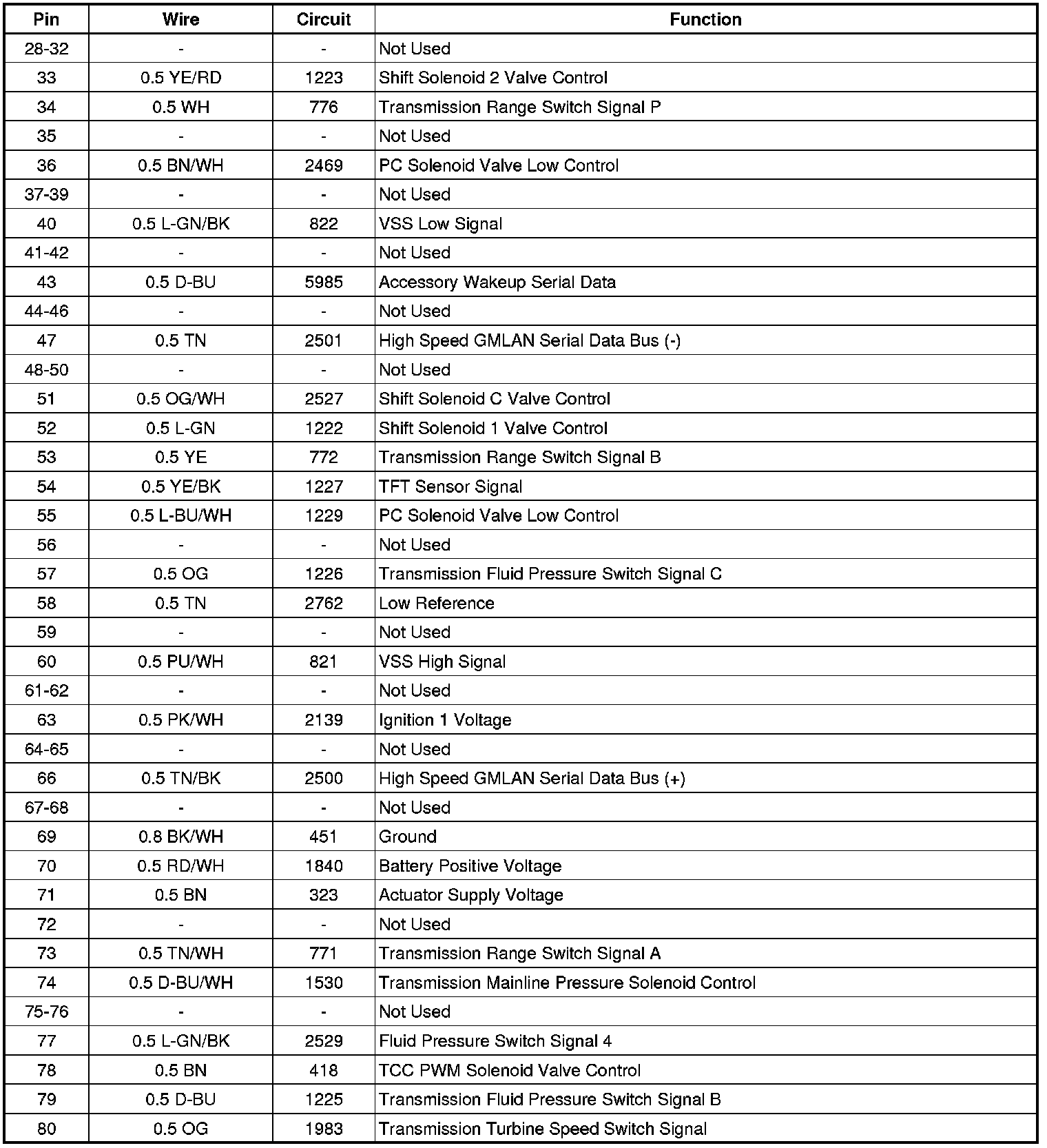

Transmission Control Module (TCM) (MW7)
