Body Control Module (BCM) X7 (except MEX or A52)
Body Control Module (BCM) X7 (except MEX or A52)
Component Connector End Views

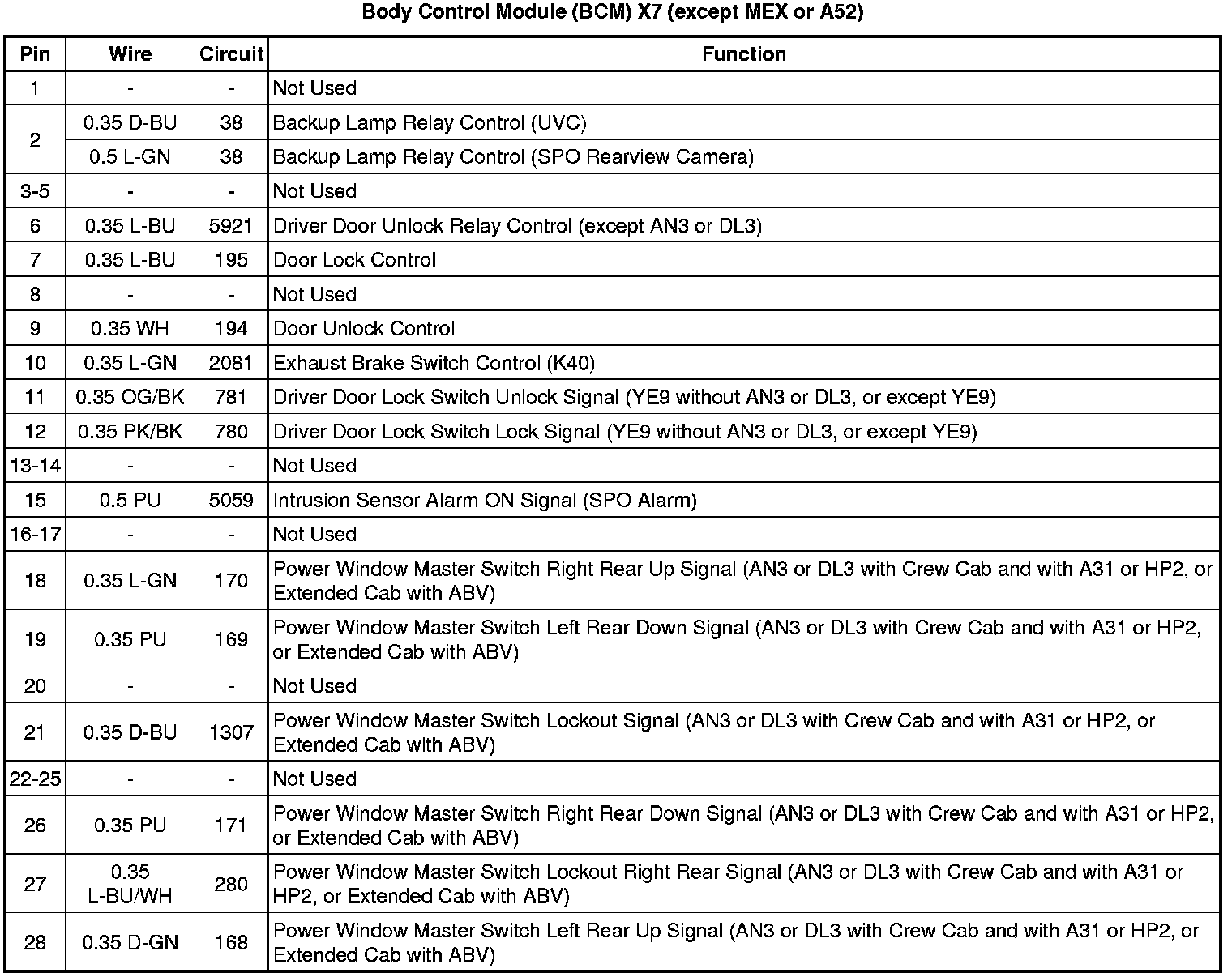

Body Control Module (BCM) X7 (except MEX or A52)
