Home >> Chevrolet >> 2012 >> Silverado 1500 2WD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Receiver

Keyless Entry Receiver

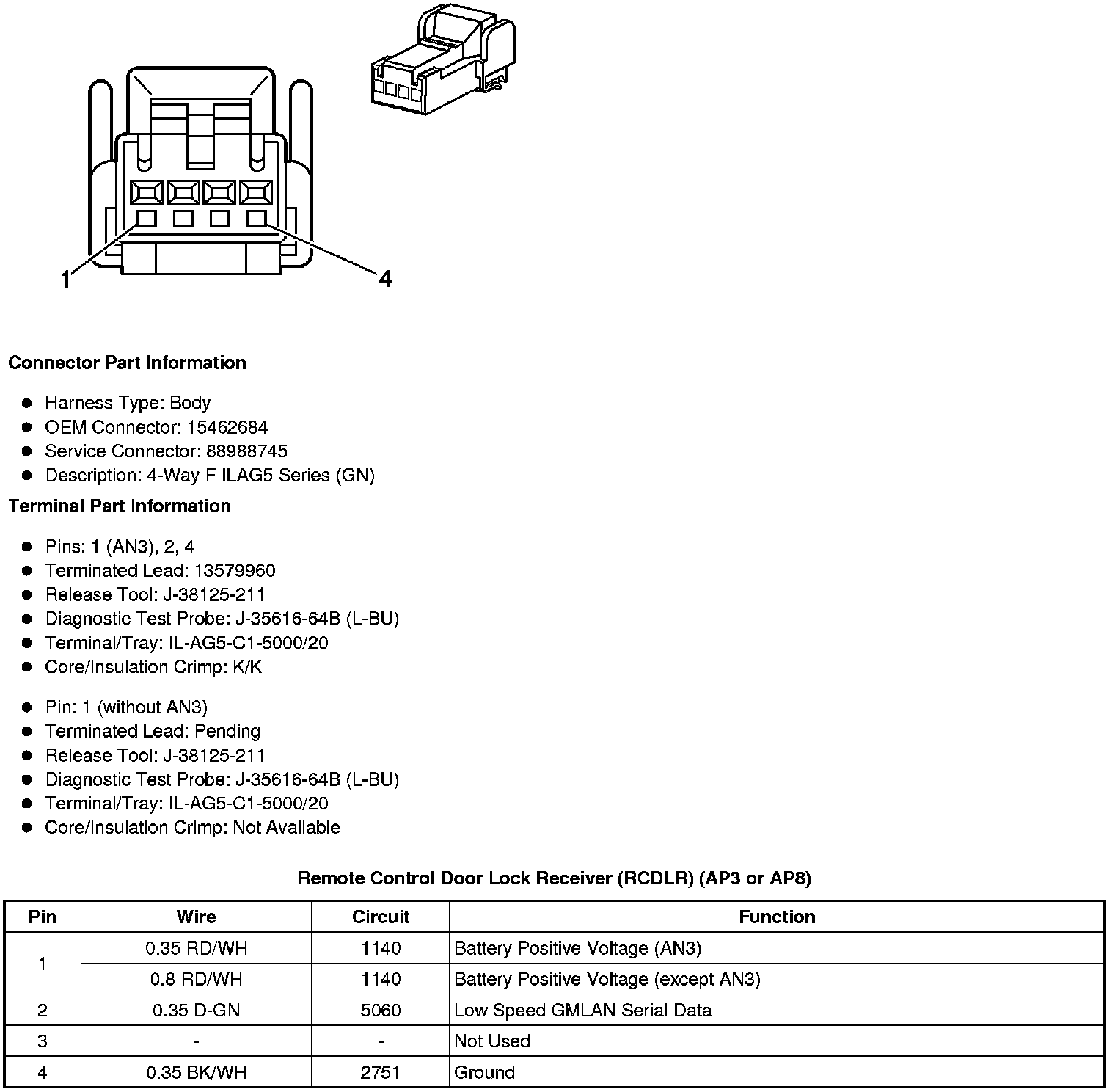

Component Connector End Views

Remote Control Door Lock Receiver (RCDLR) (AP3 or AP8)
