Electronic Brake Control Module
>>

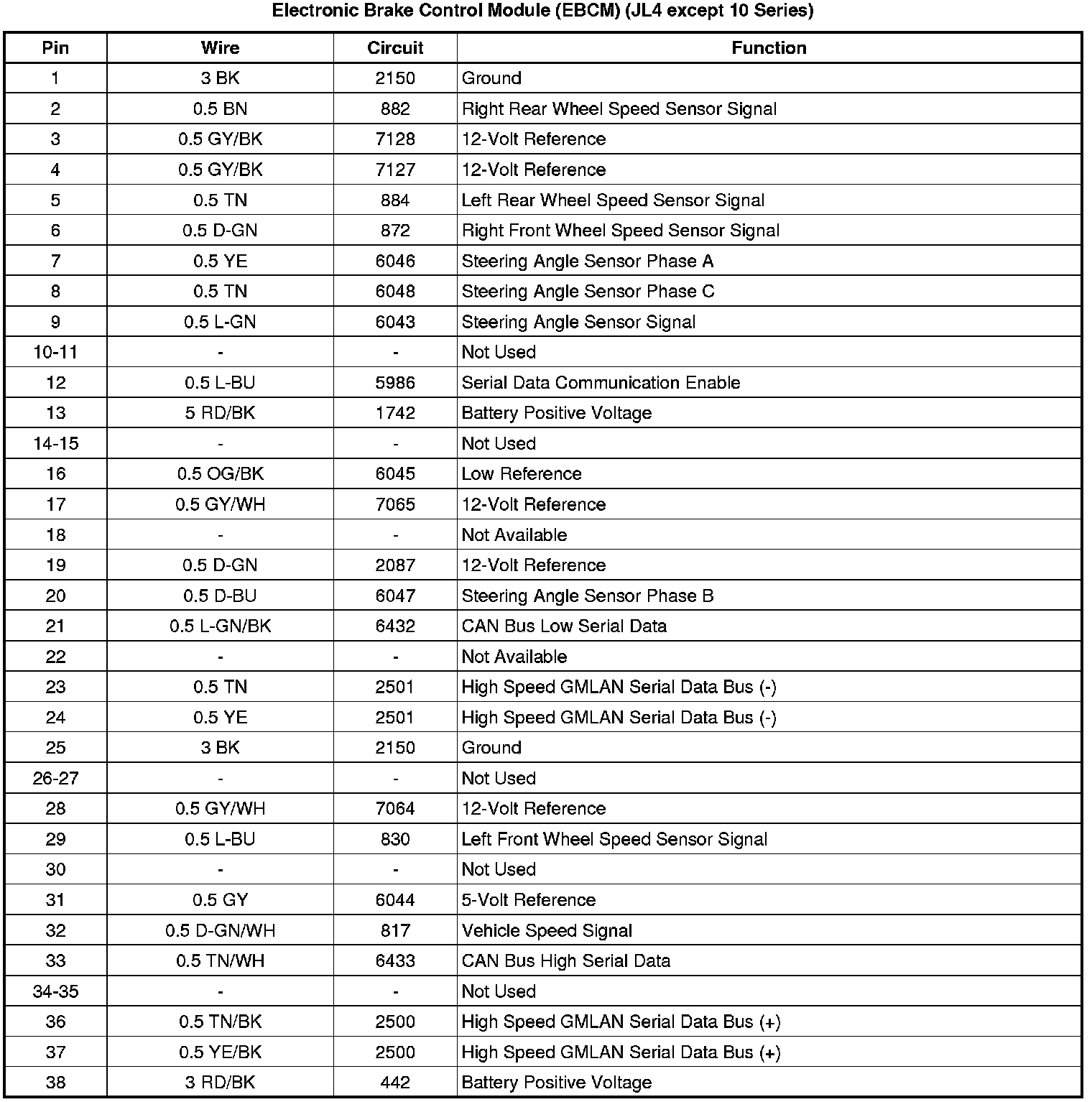

Electronic Brake Control Module (EBCM) (JL4 except 10 Series)
Electronic Brake Control Module (EBCM) (JL4 except 10 Series)

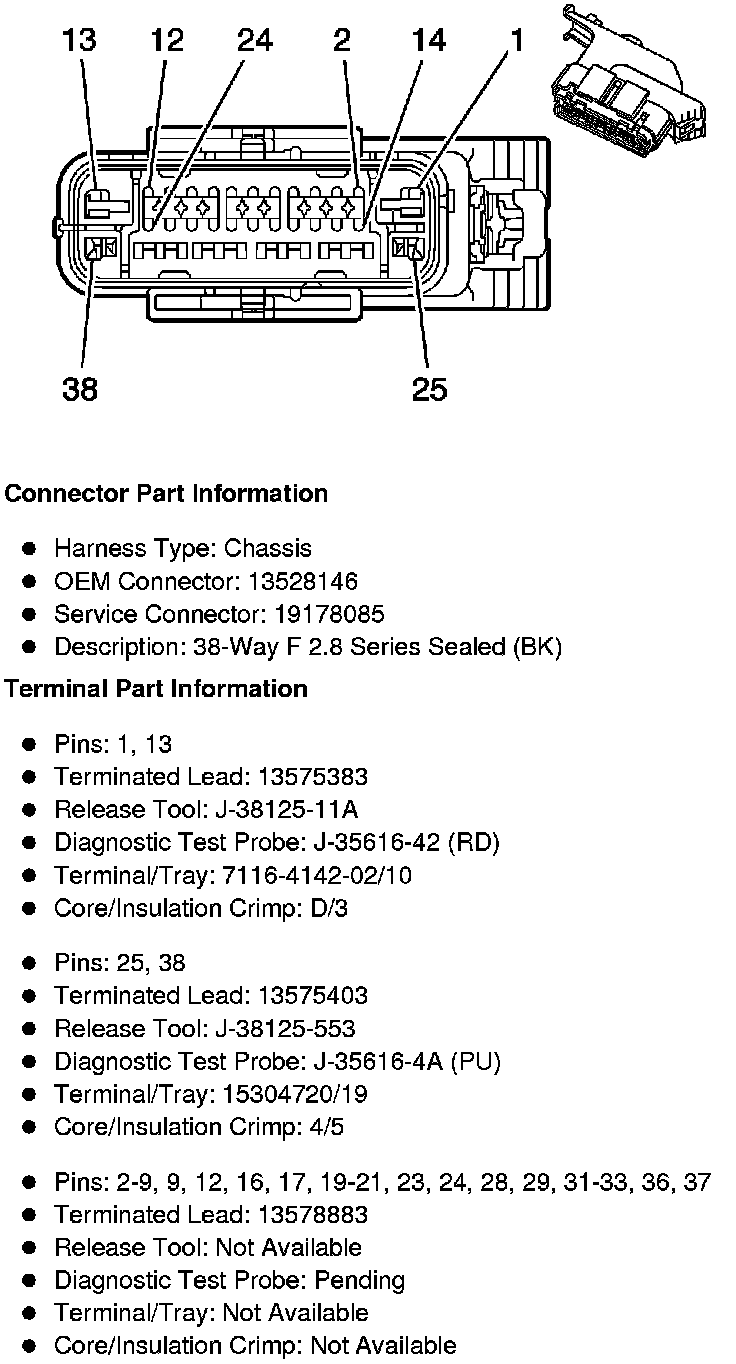

Component Connector End Views
Electronic Brake Control Module
(EBCM) (JL4 except 10 Series)
