Air Bag Control Module
>>

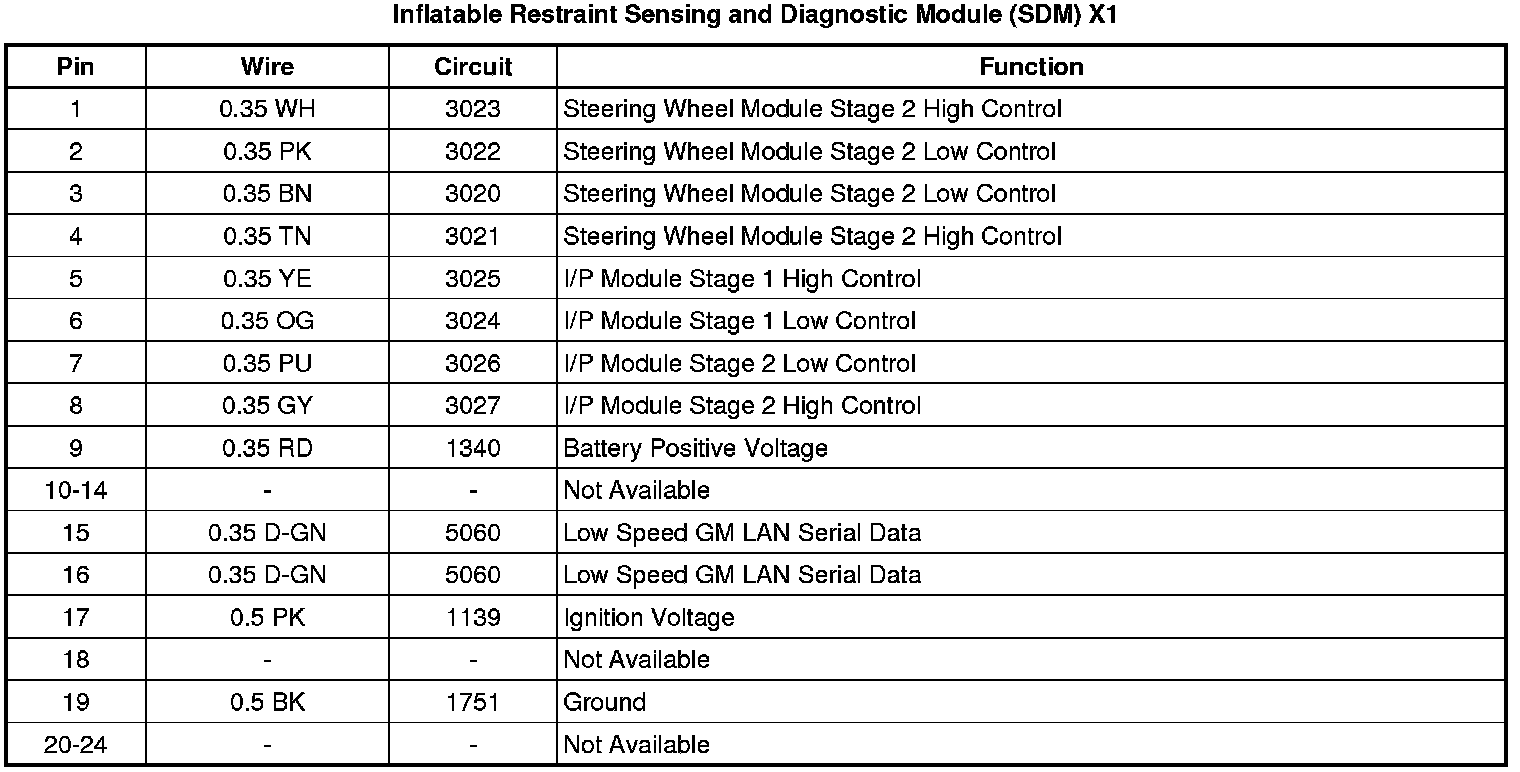

Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
Component Connector End Views
Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
