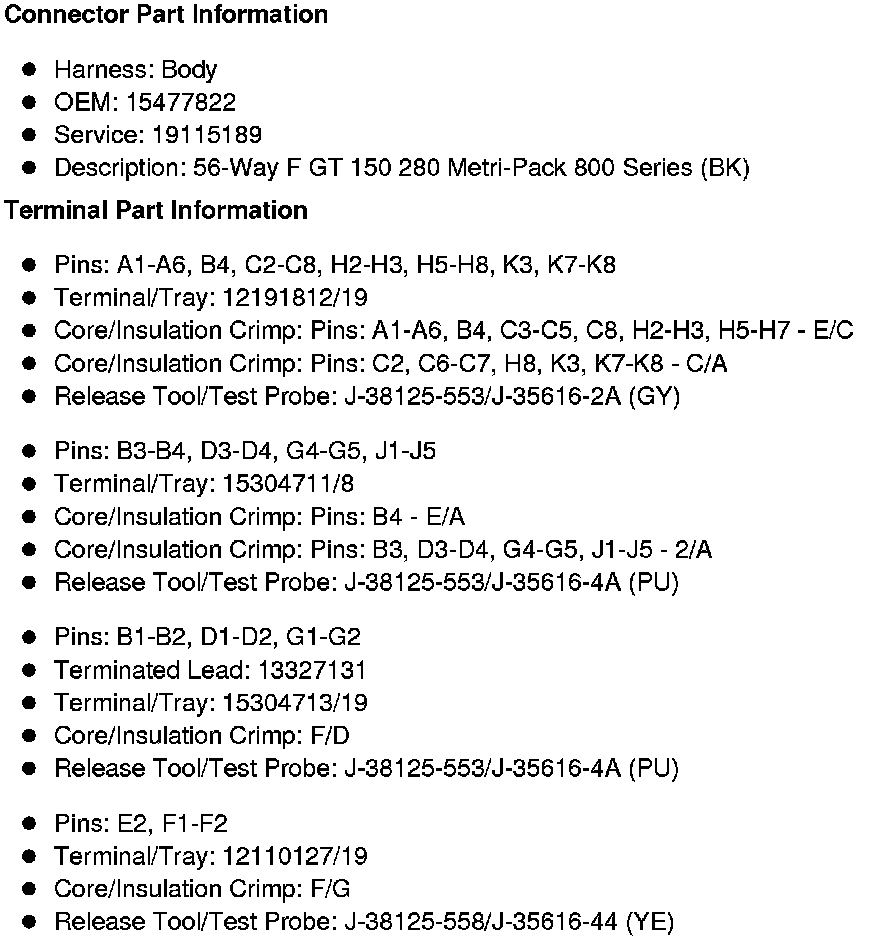

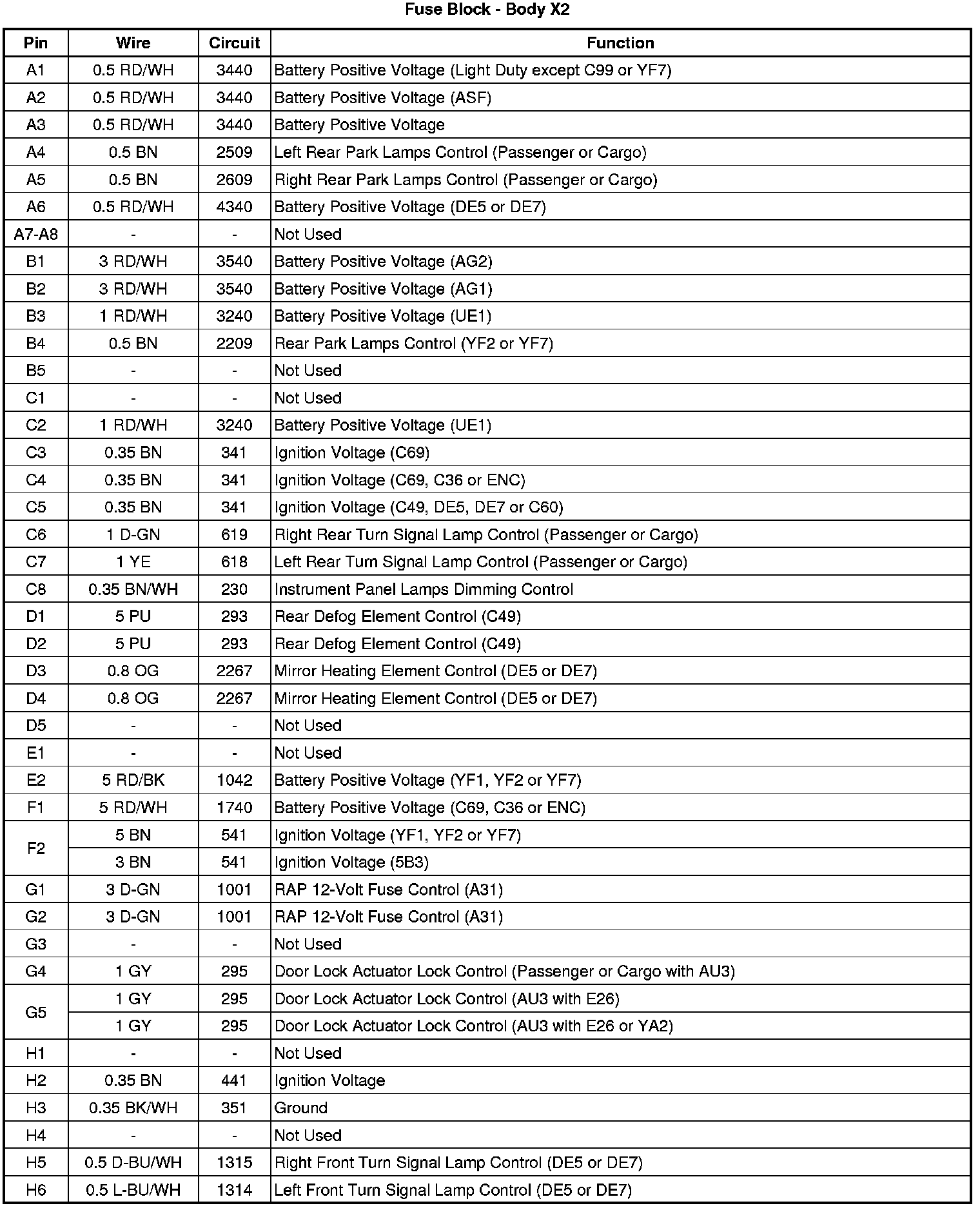

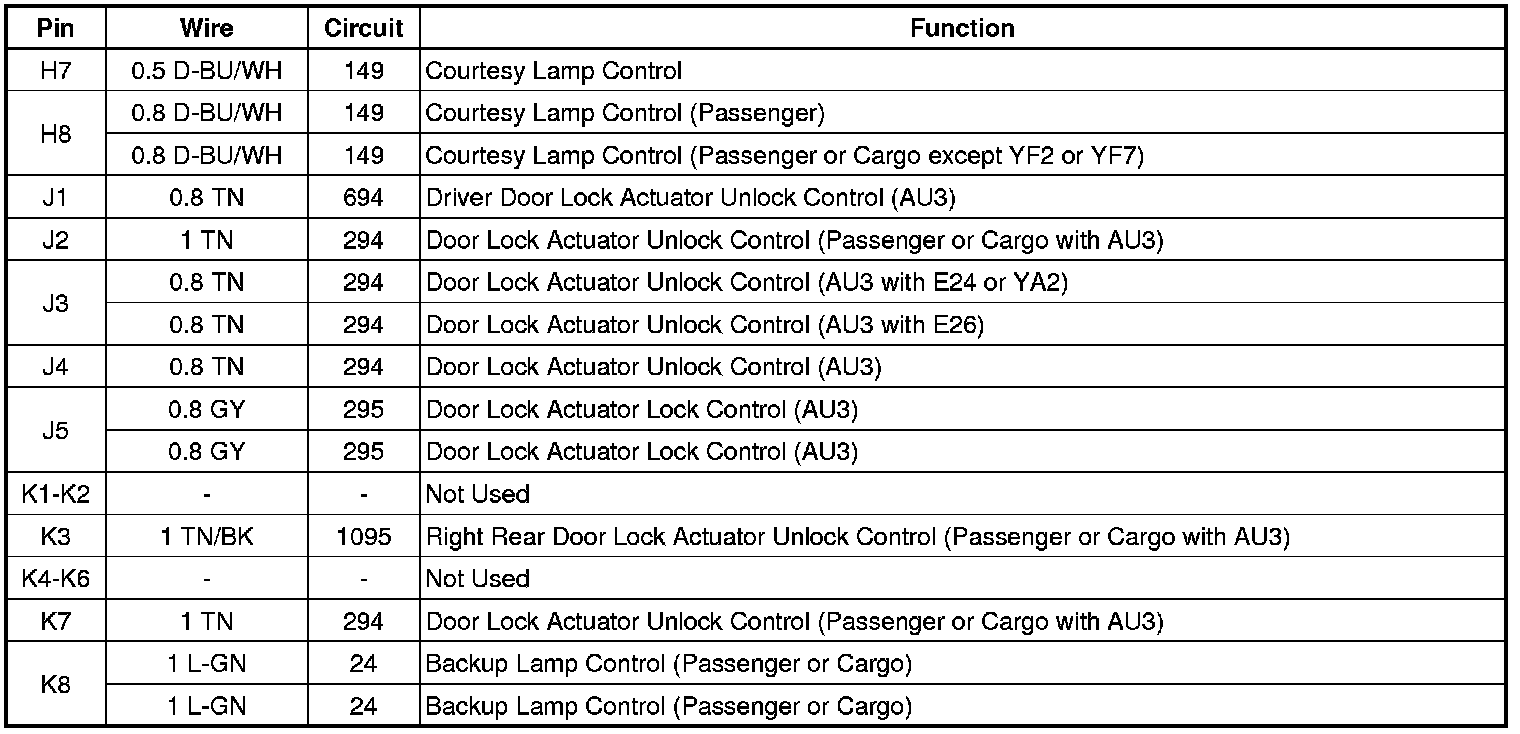

Fuse Block - Body X2
Fuse Block - Body X2
Electrical Center Identification Views
Fuse Block
- Body X2
