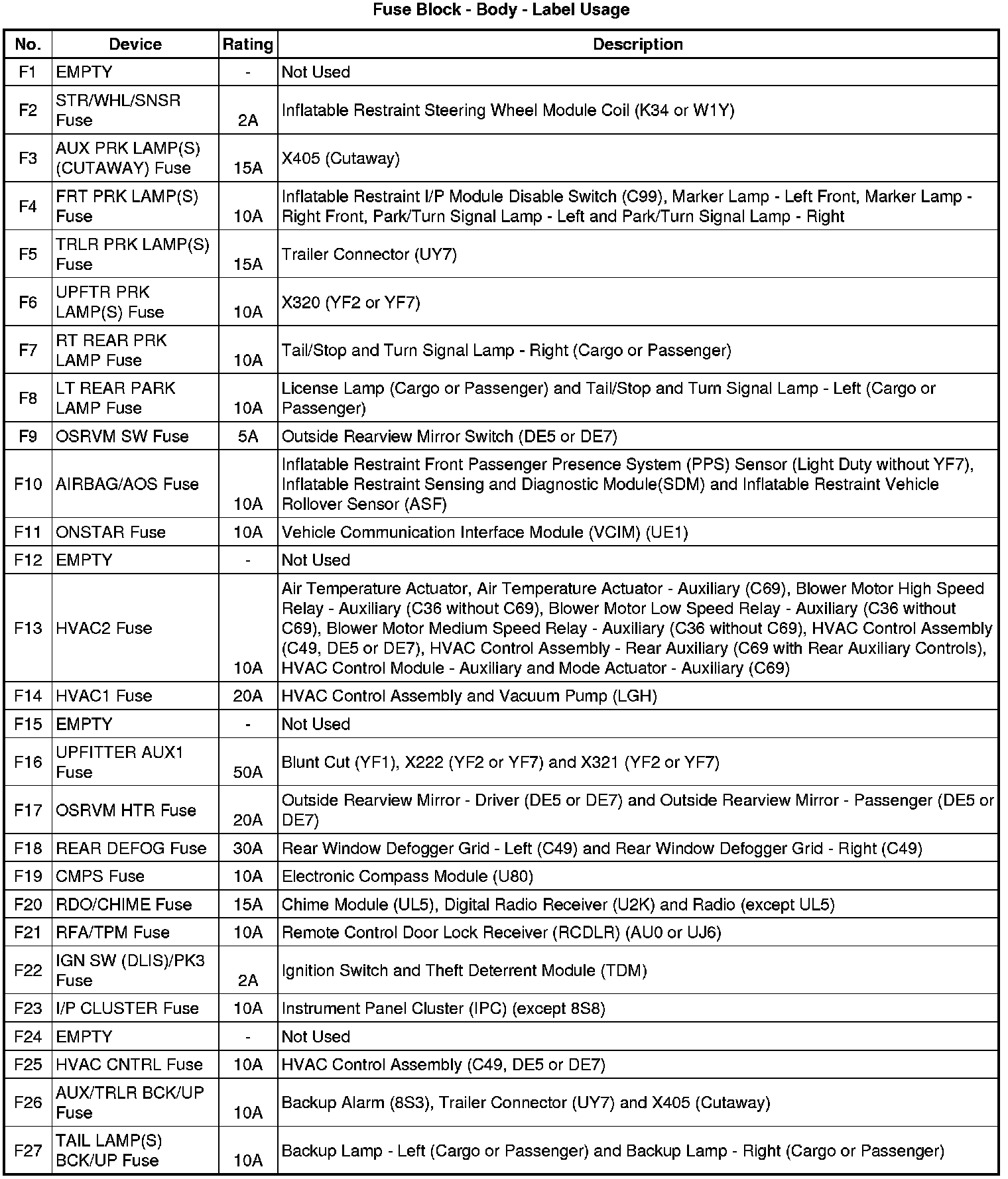

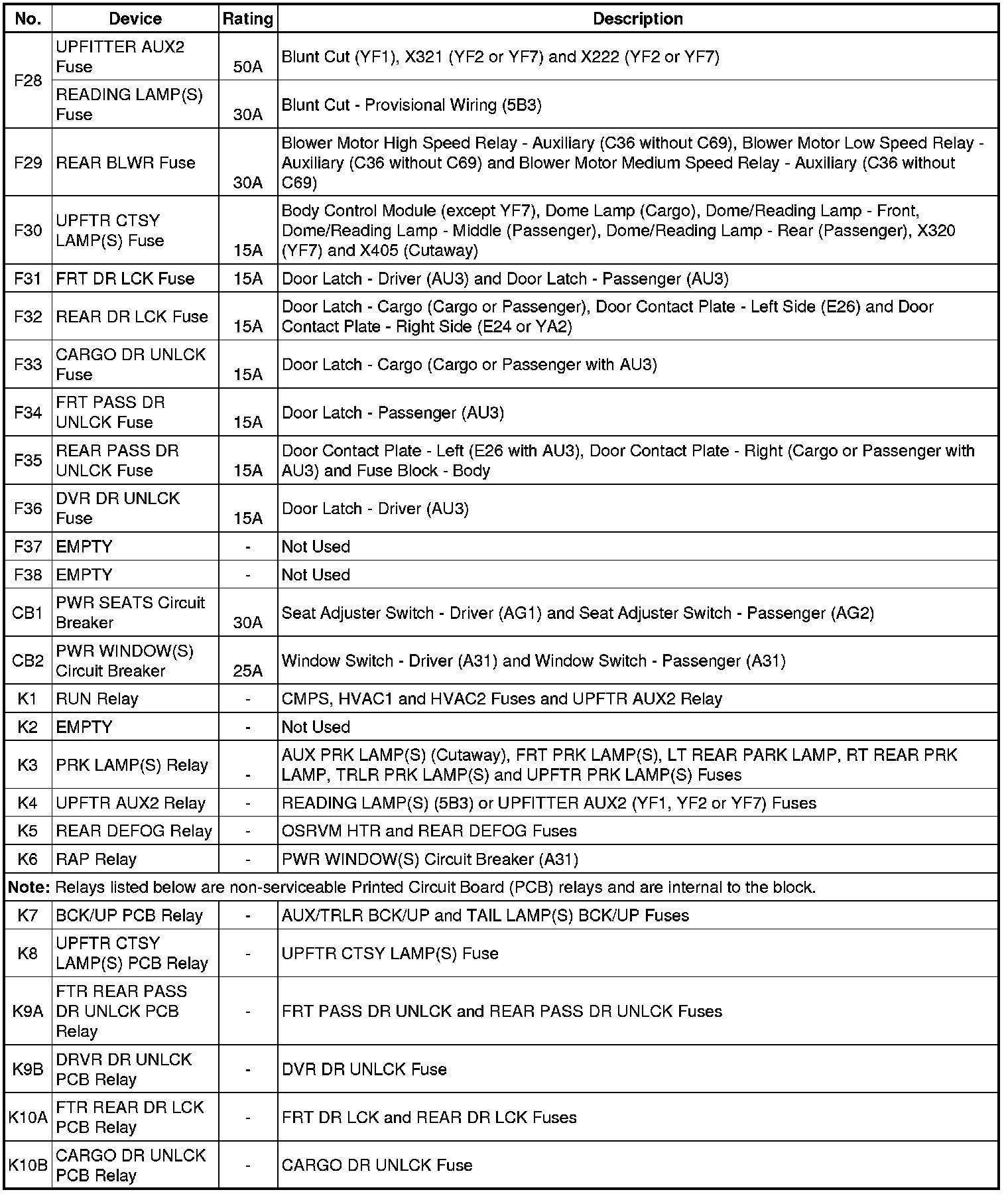

Fuse Block - Body Label
Fuse Block - Body Label
Electrical Center Identification Views

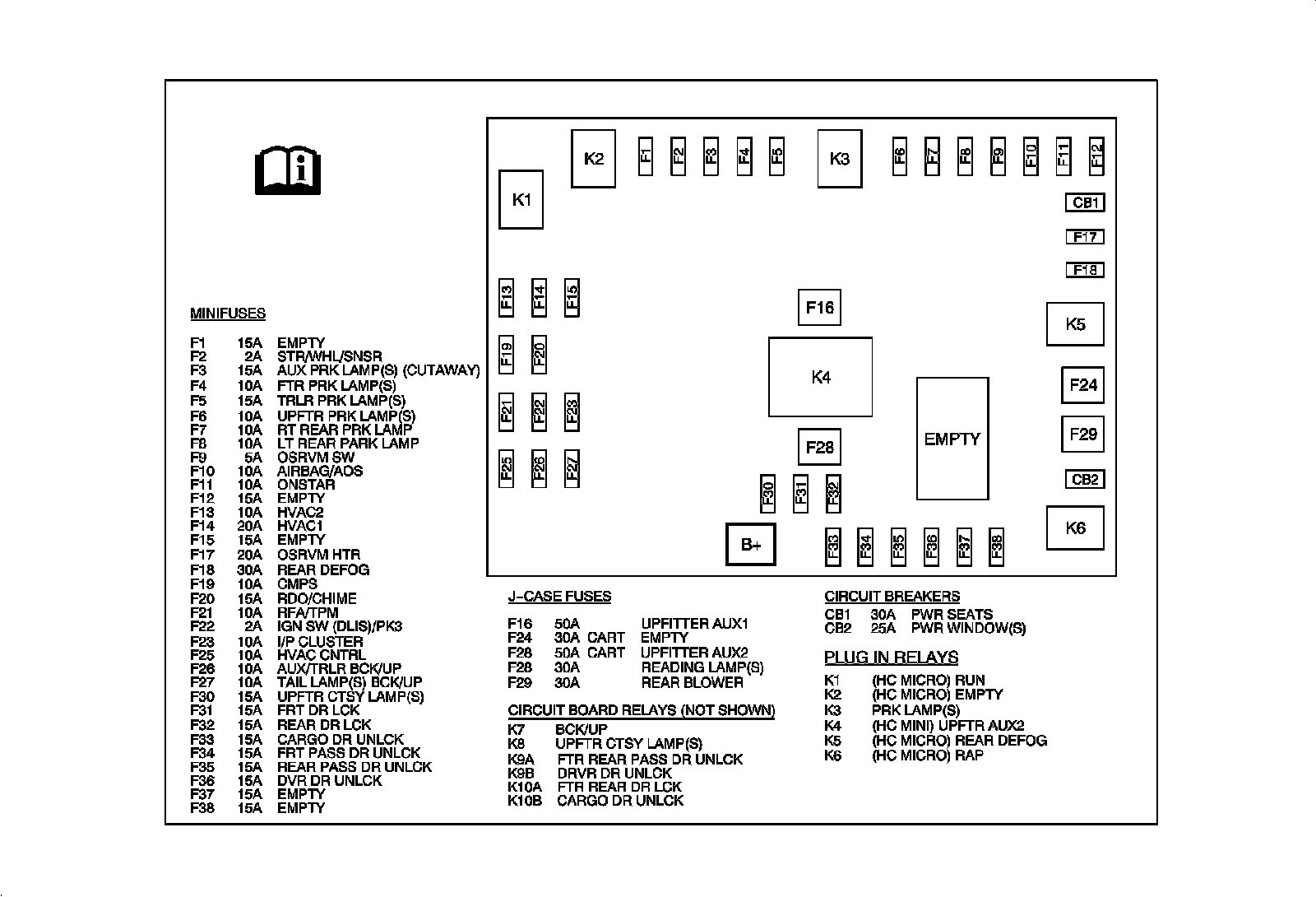

Fuse Block
- Body Label
