Fuse Block - Underhood




Electrical Center Identification Views

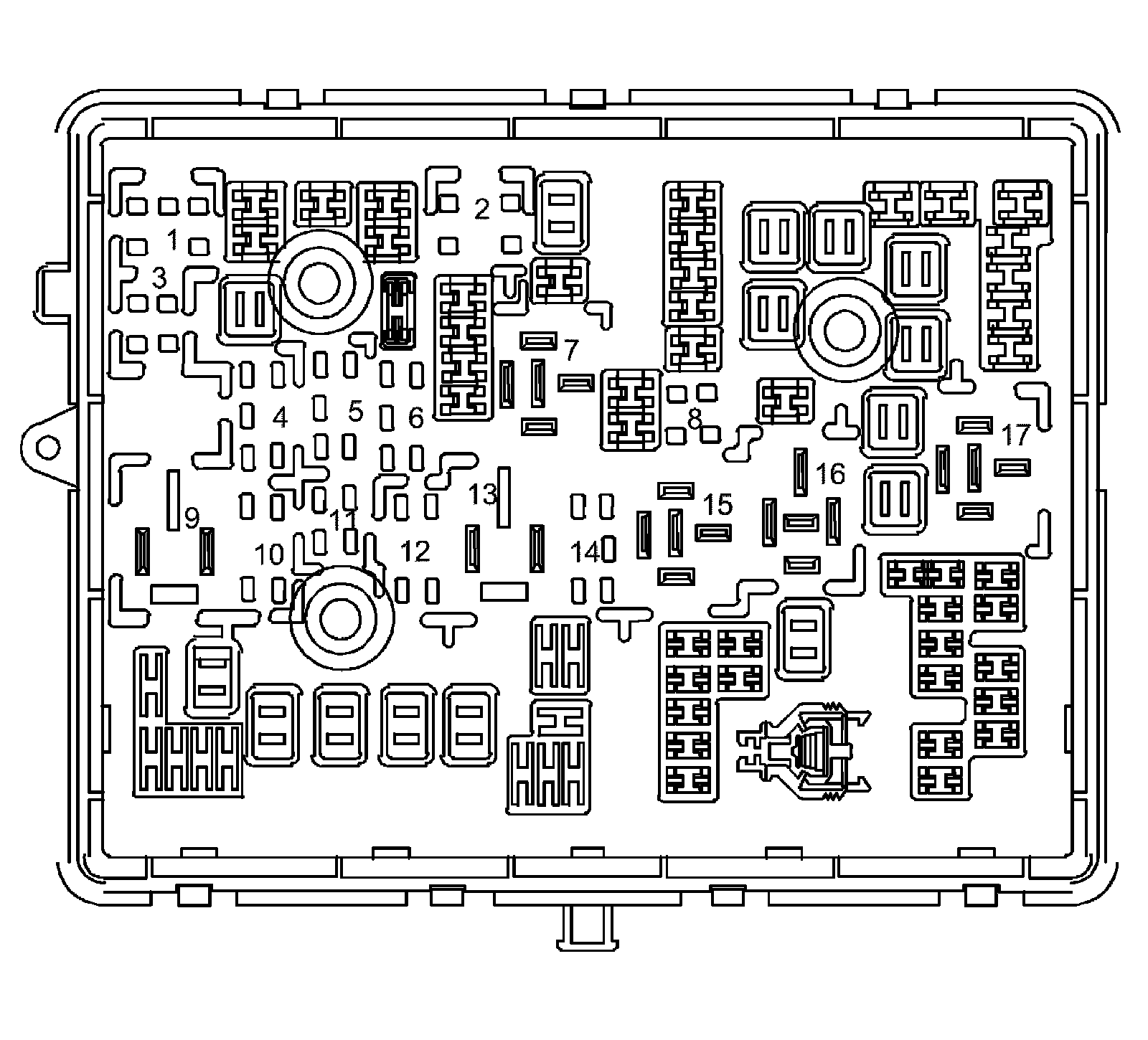

X50A Fuse Block - Underhood Label


















X50A Fuse Block - Underhood Bottom View

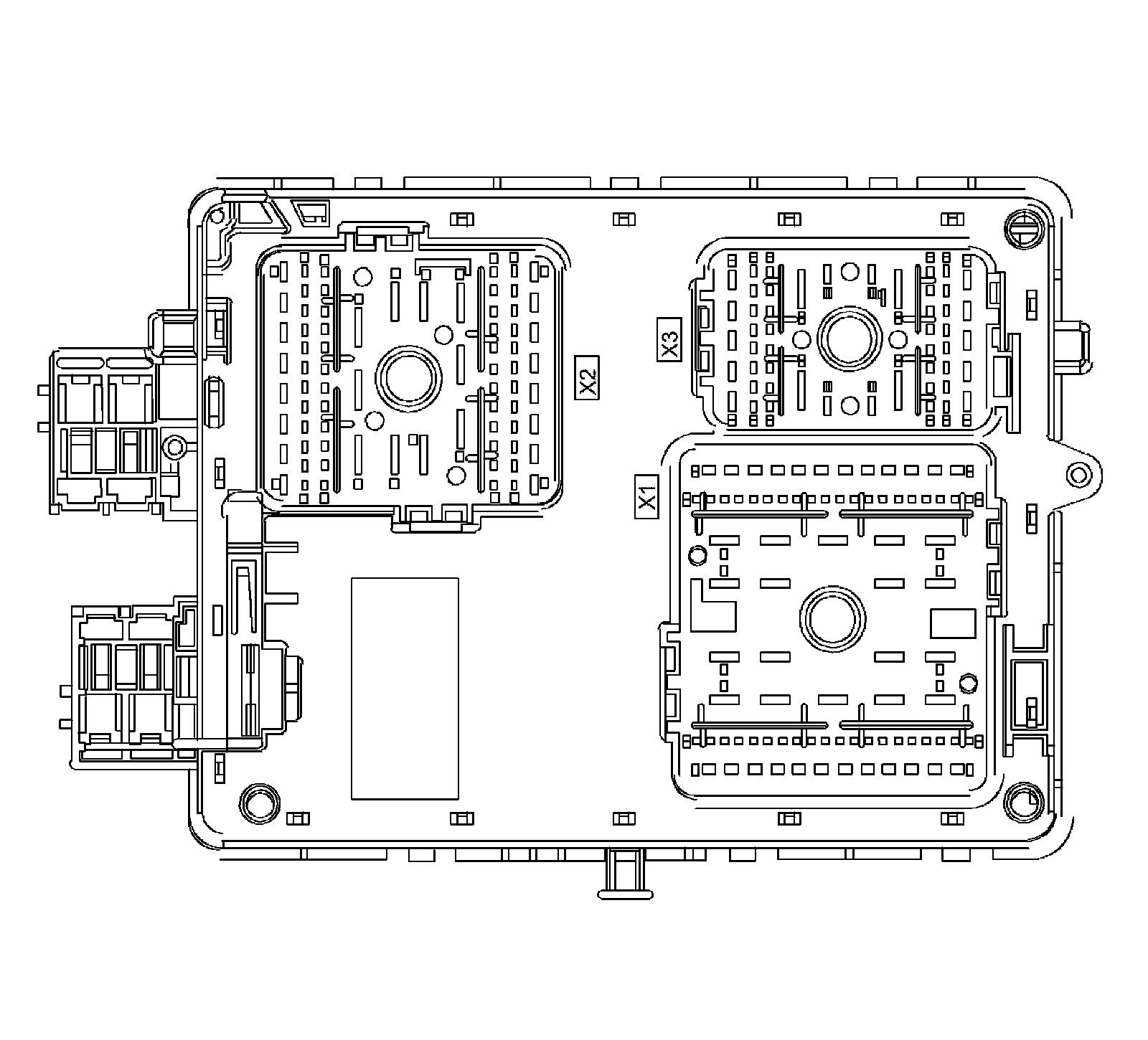

X50A Fuse Block - Underhood Top View

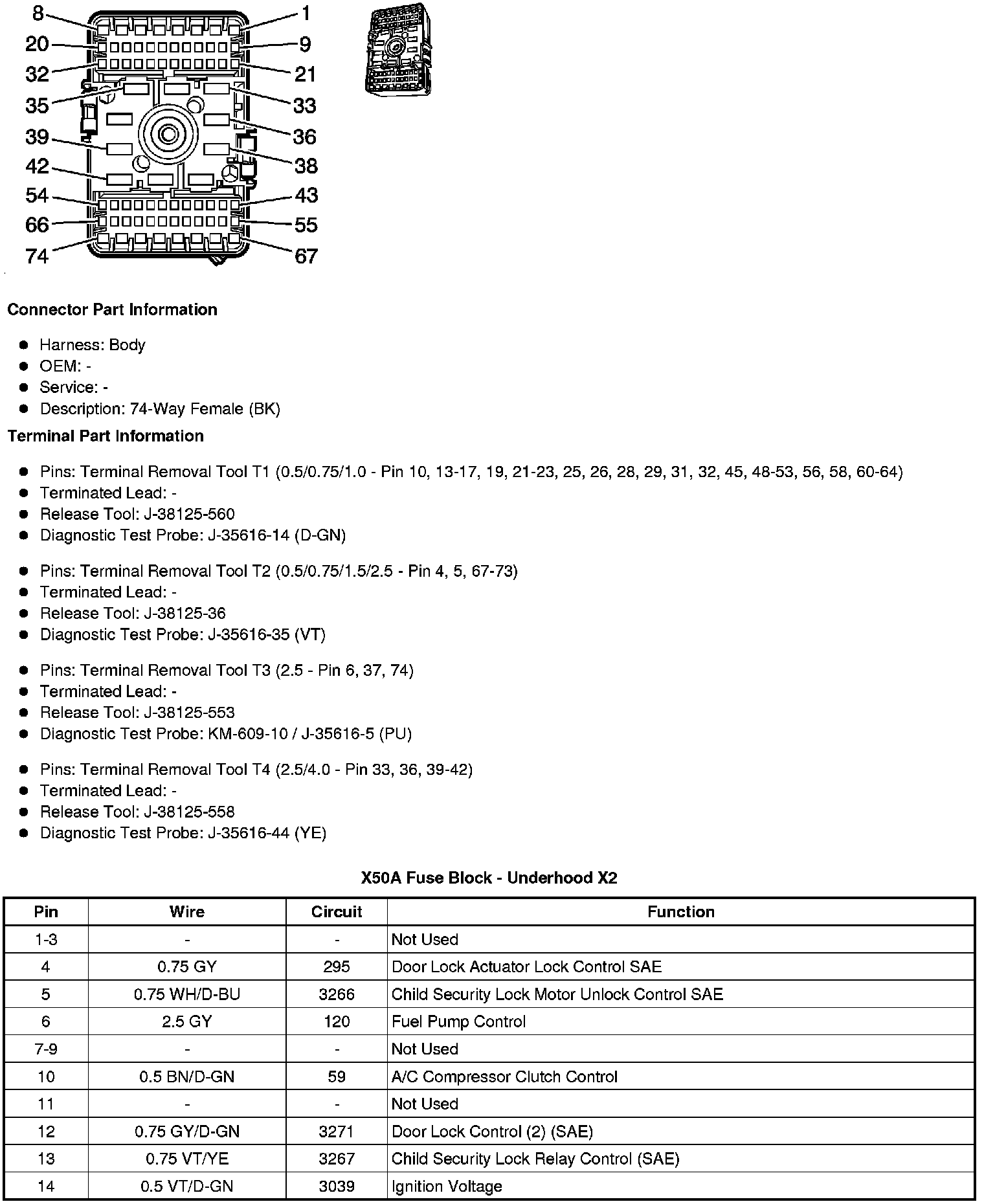

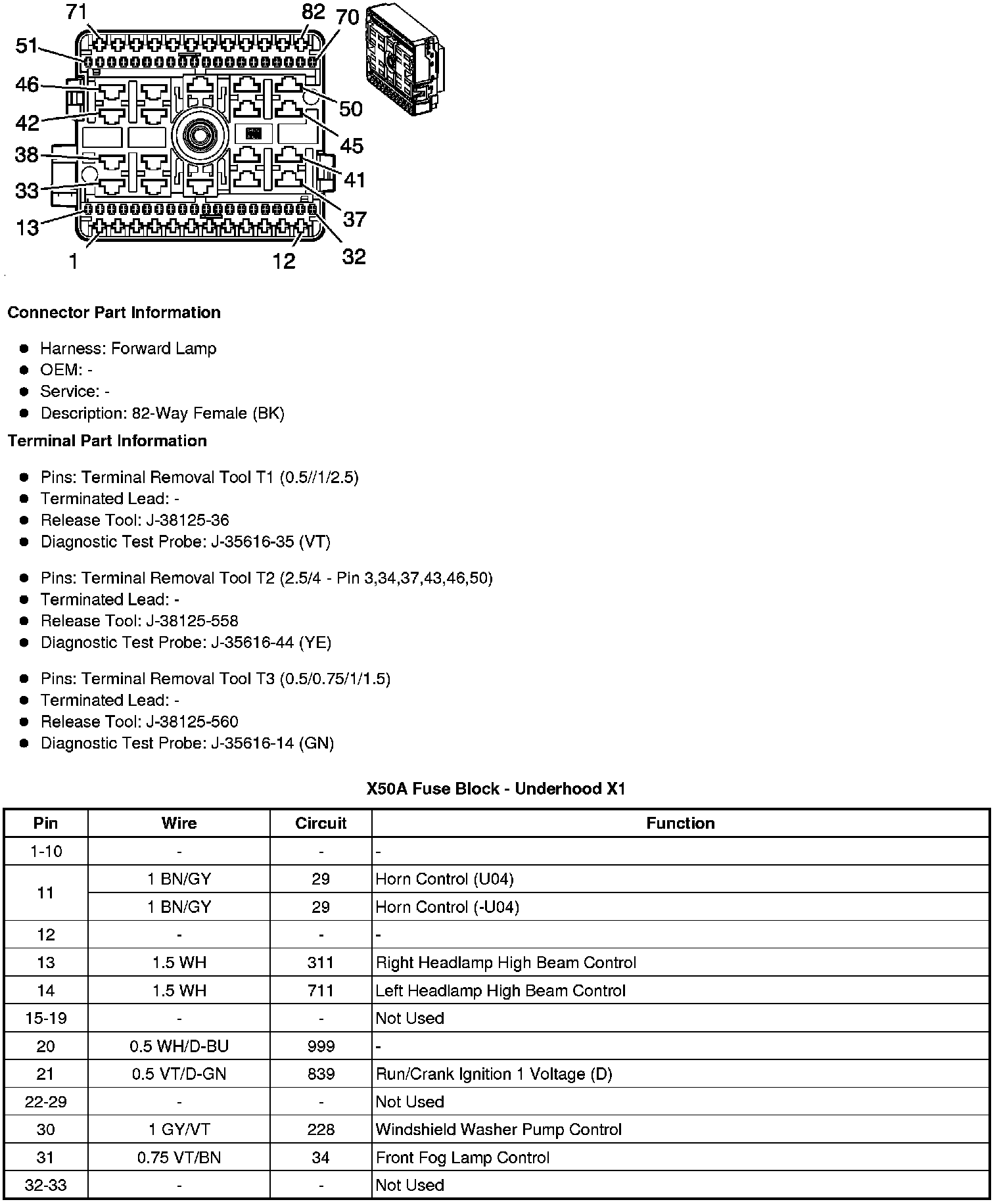

X50A Fuse Block - Underhood X1

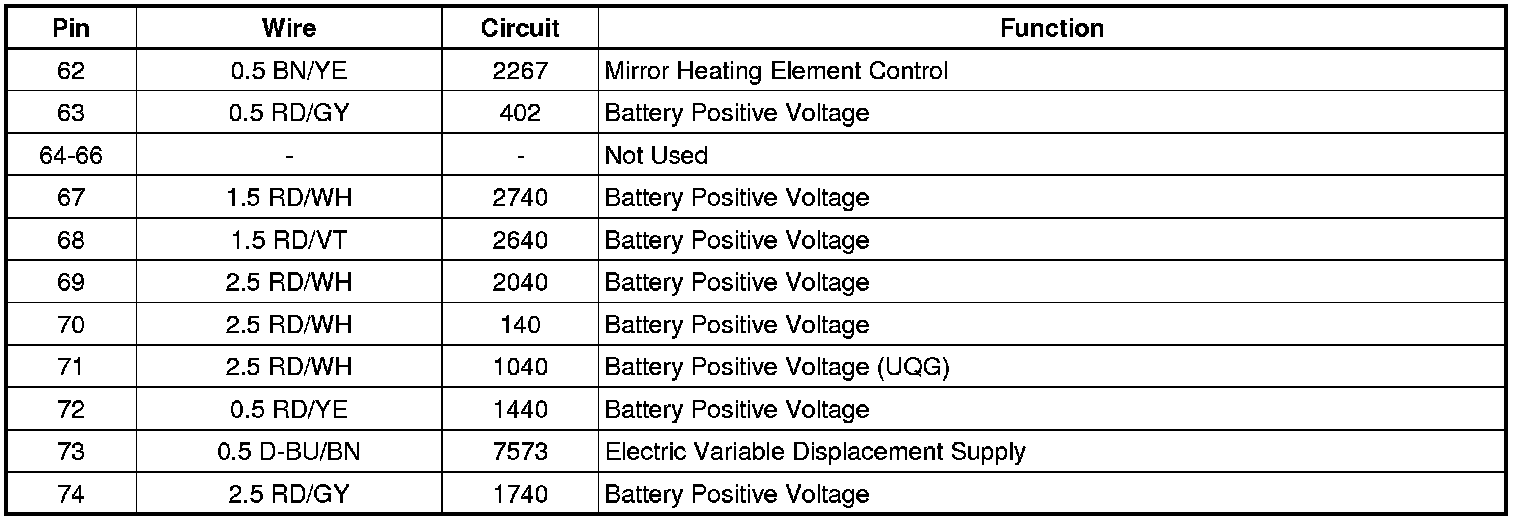

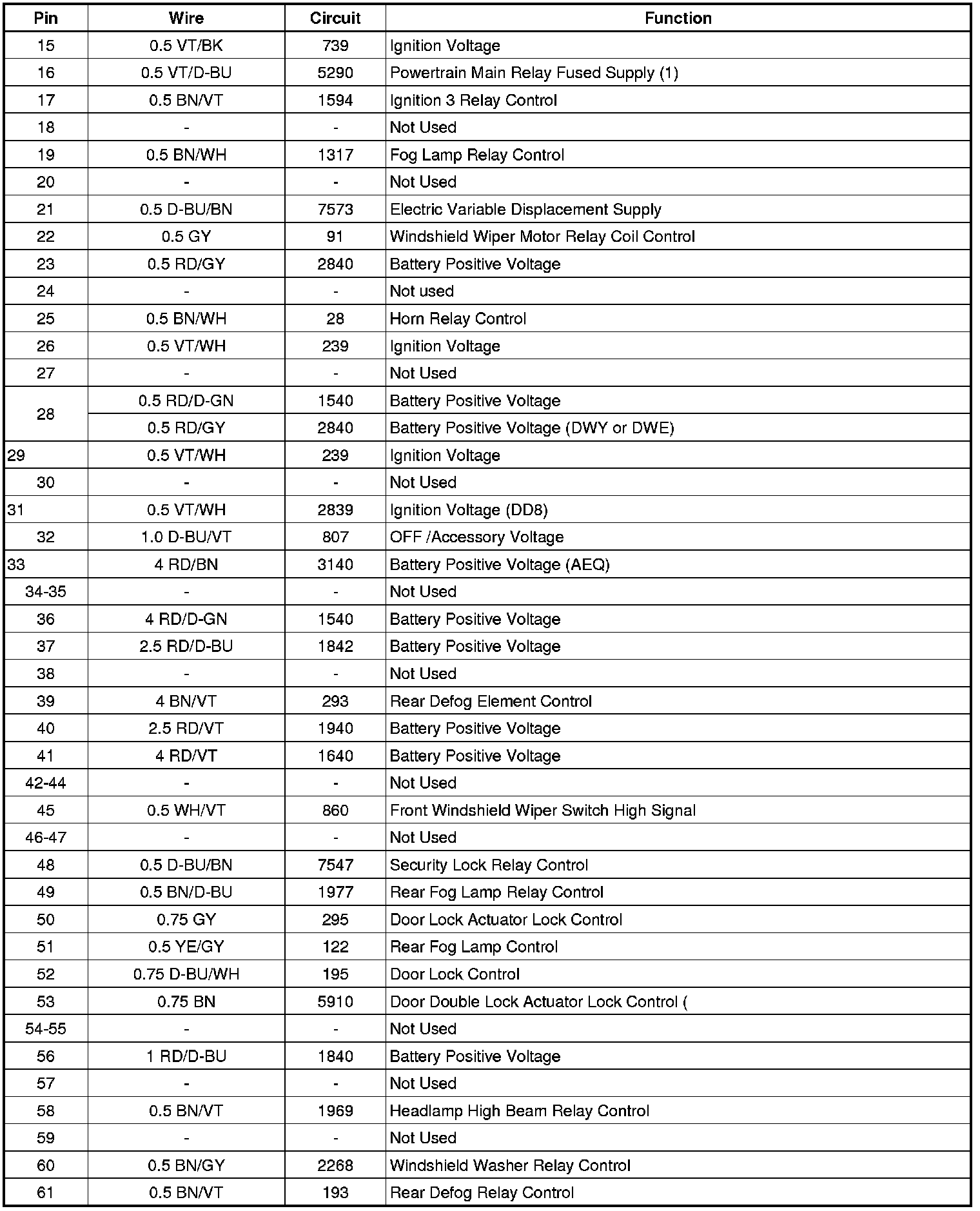

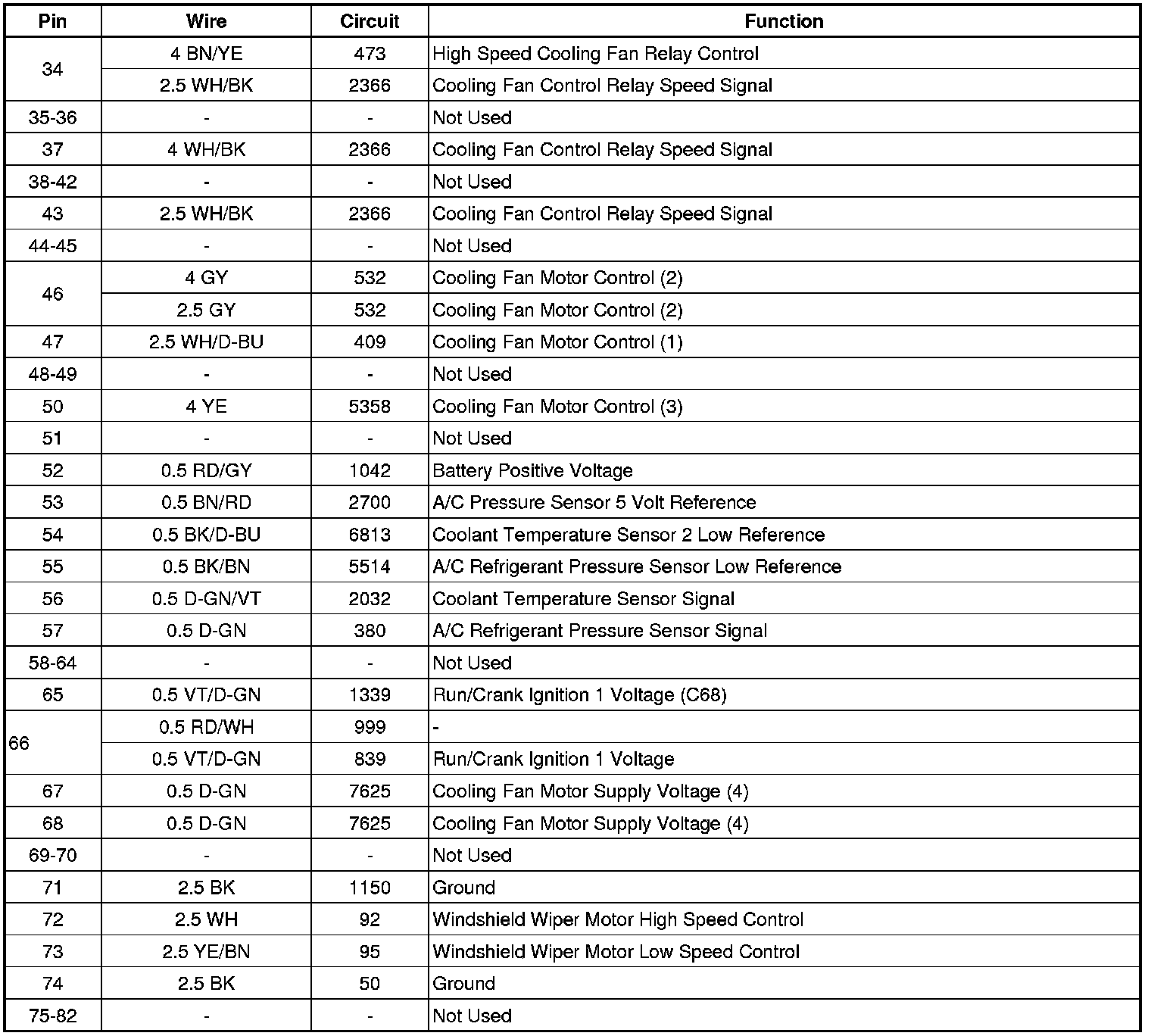

X50A Fuse Block - Underhood X2

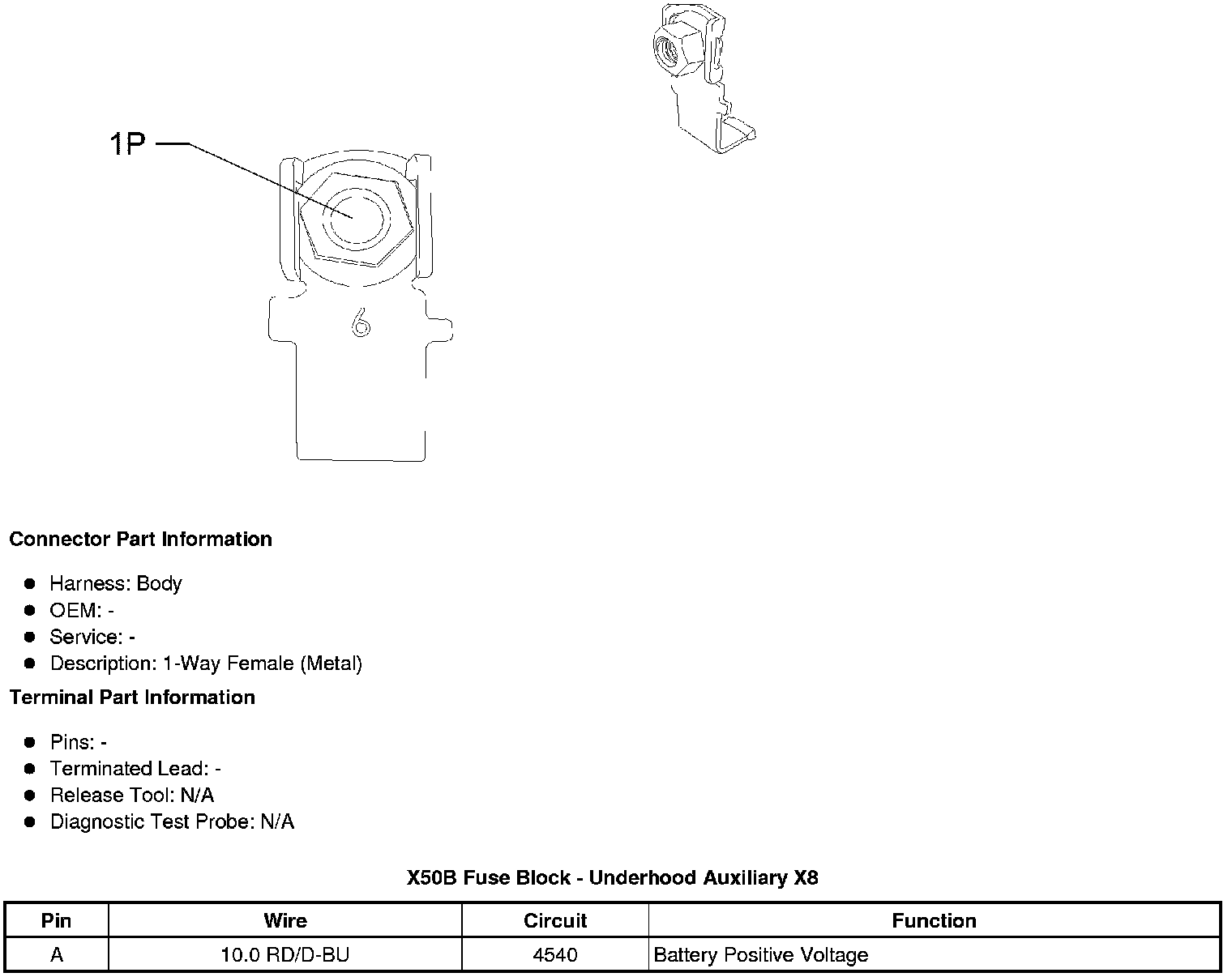

X50B Fuse Block - Underhood Auxiliary X8

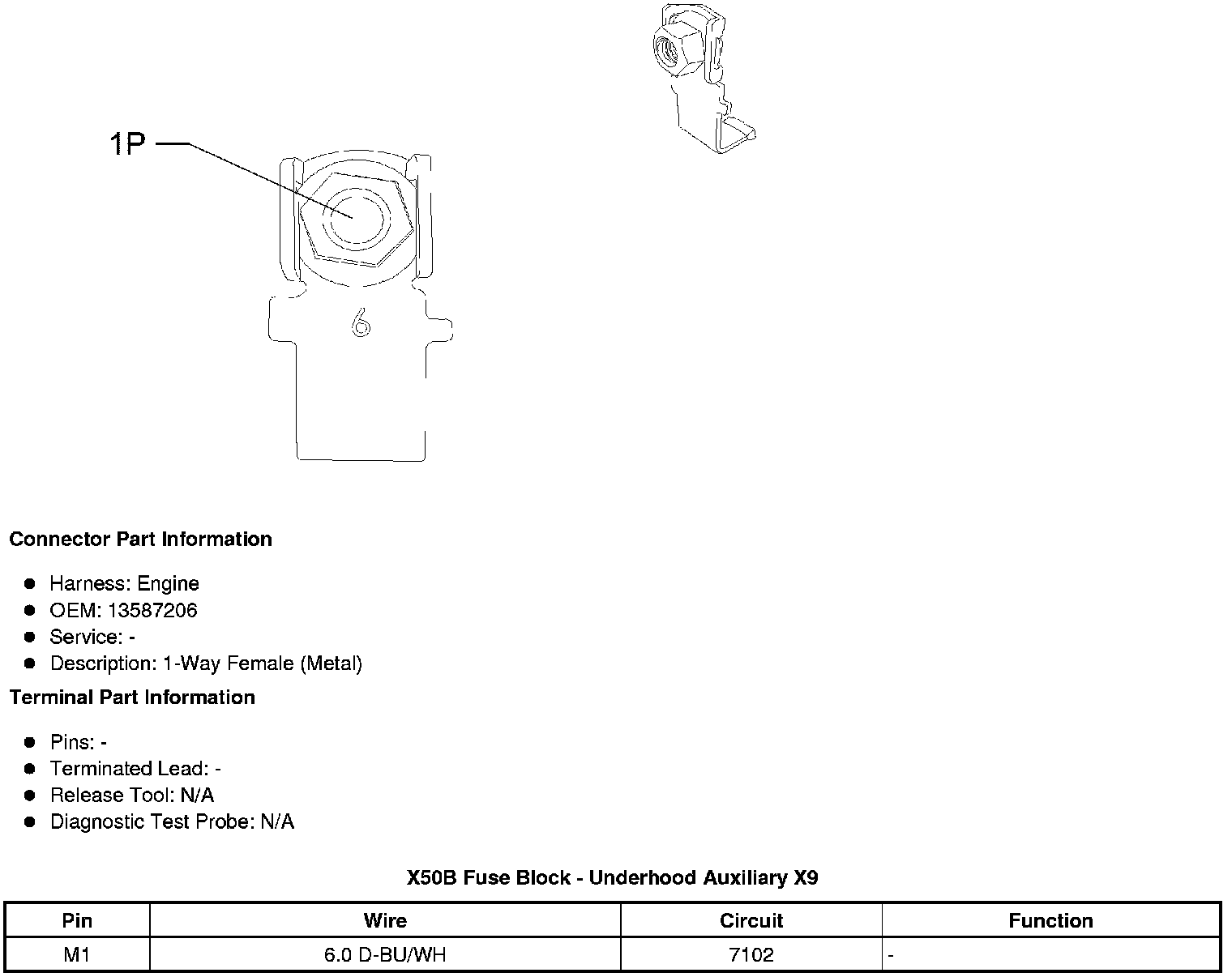

X50B Fuse Block - Underhood Auxiliary X9
