Body Control Systems




Body Control System Schematics

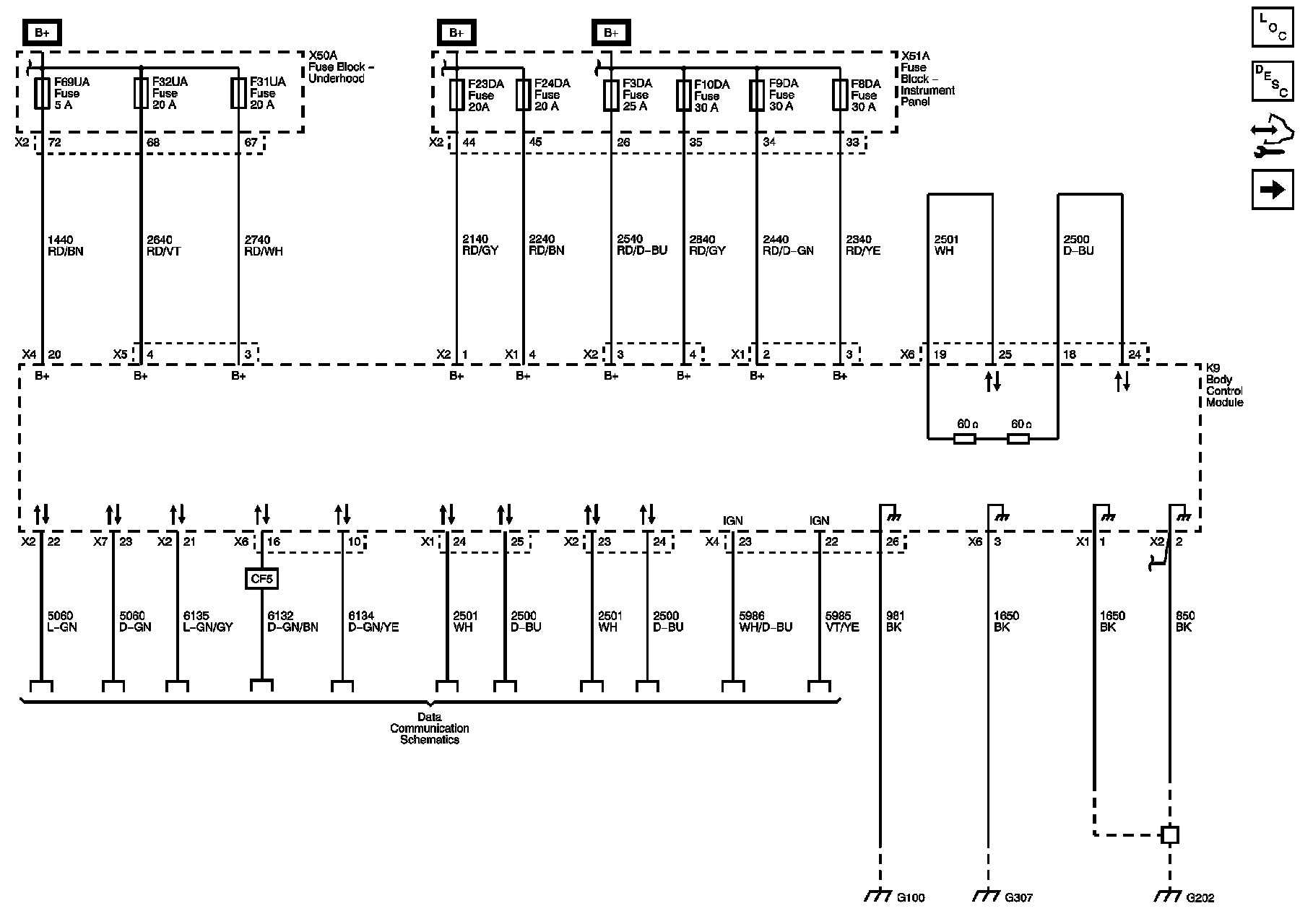

Power, Ground, Data Communications, and Subsystem References (1 of 4)

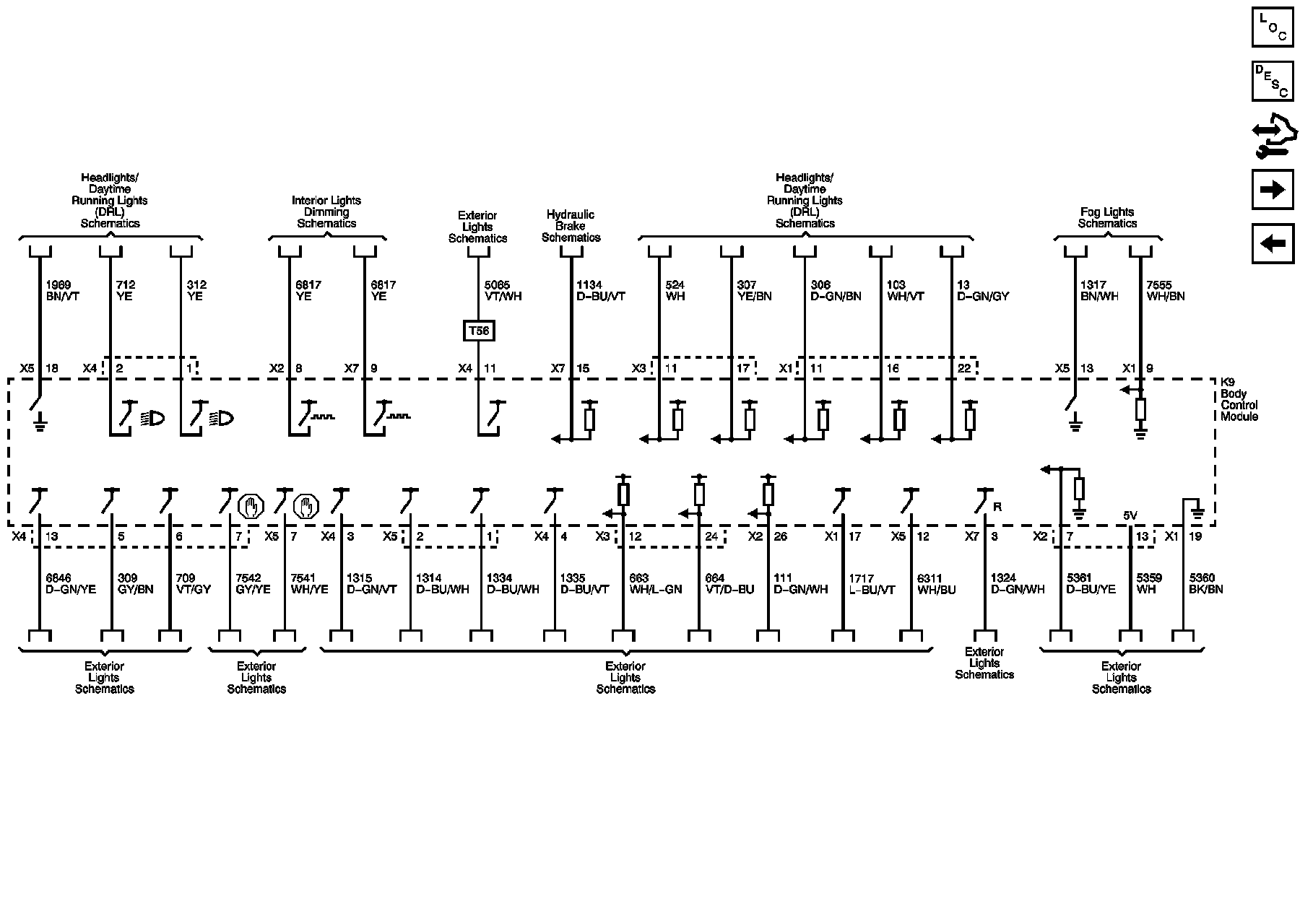

Subsystem References (2 of 4)

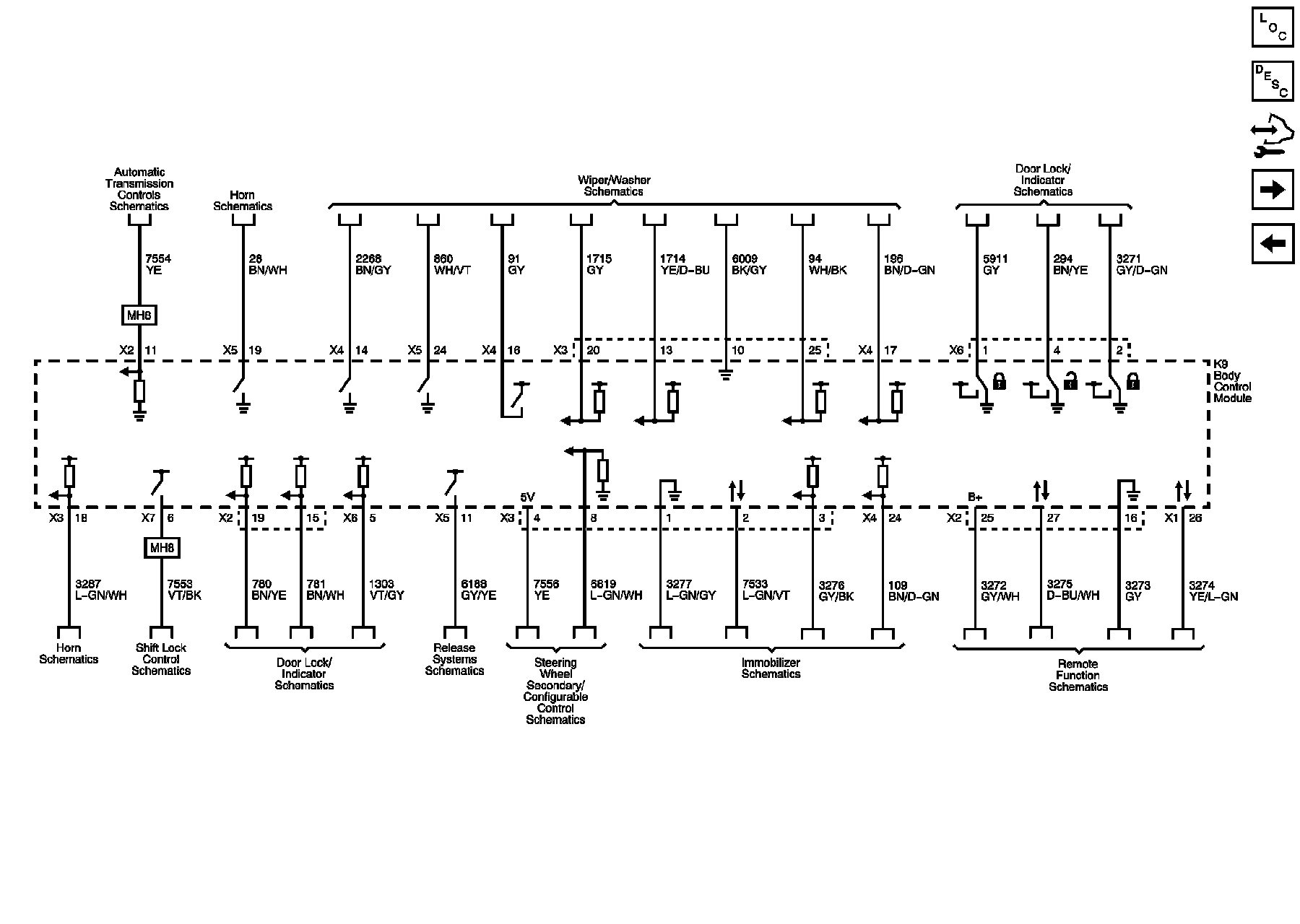

Subsystem References (3 of 4)





Subsystem References (4 of 4)
