Home >> Chevrolet >> 2012 >> Cruze L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - Right Rear

Window Switch - Right Rear




Component Connector End Views

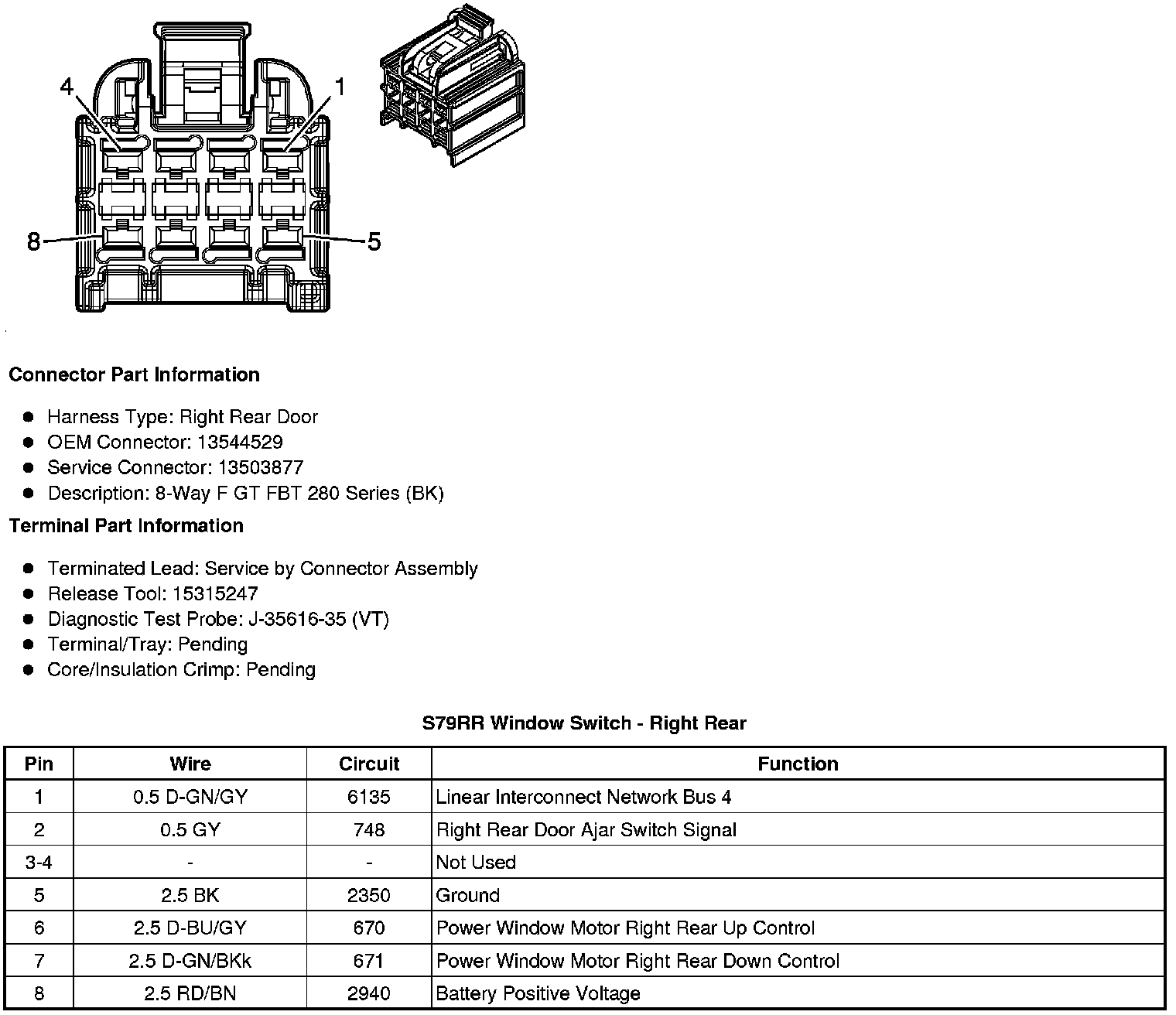

S79RR Window Switch - Right Rear
