Power Window Switch
>>
Window Switch - Passenger
Window Switch - Passenger

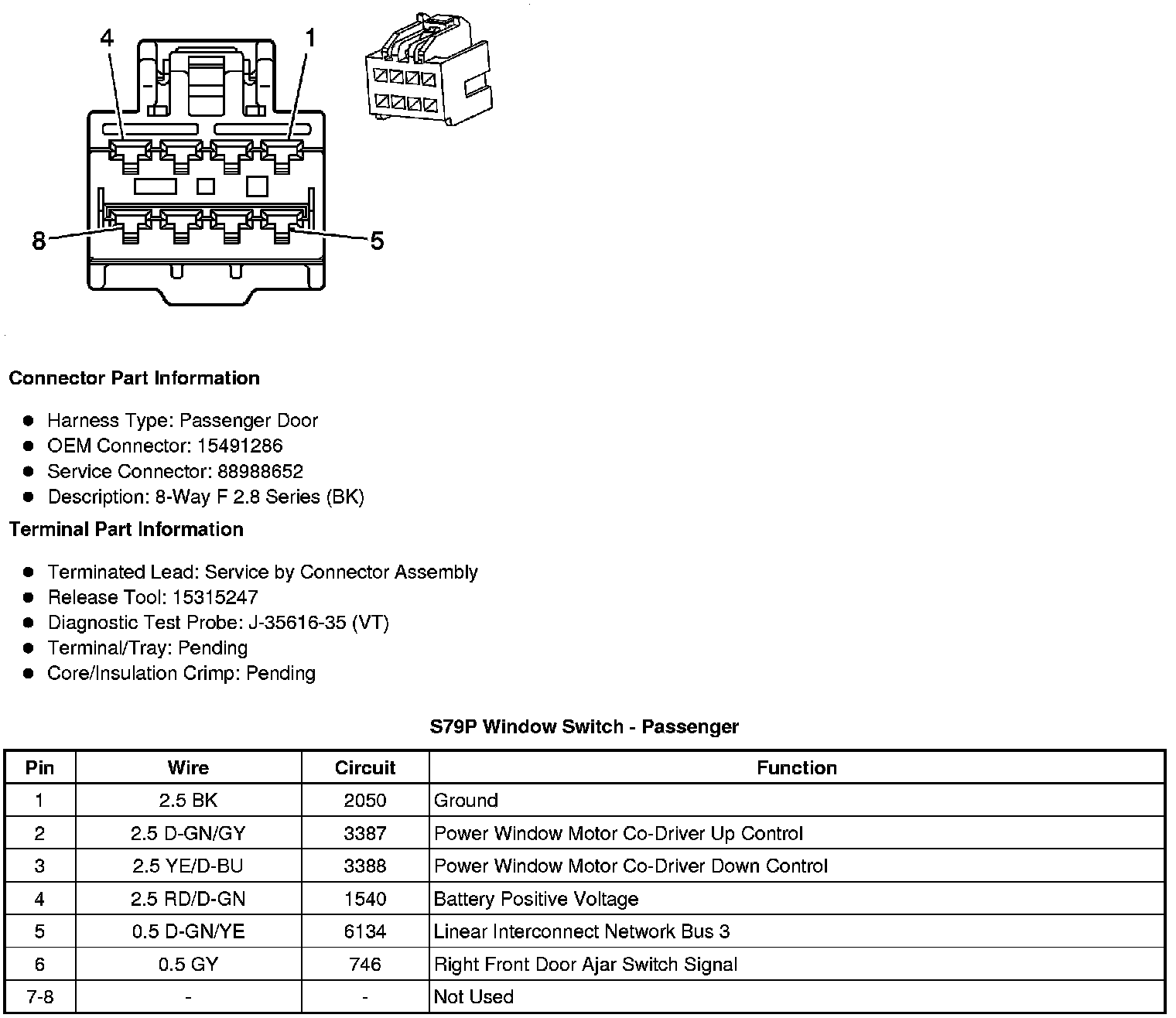

Component Connector End Views
S79P Window Switch - Passenger
