Power Window Switch
>>
Window Switch - Left Rear
Window Switch - Left Rear

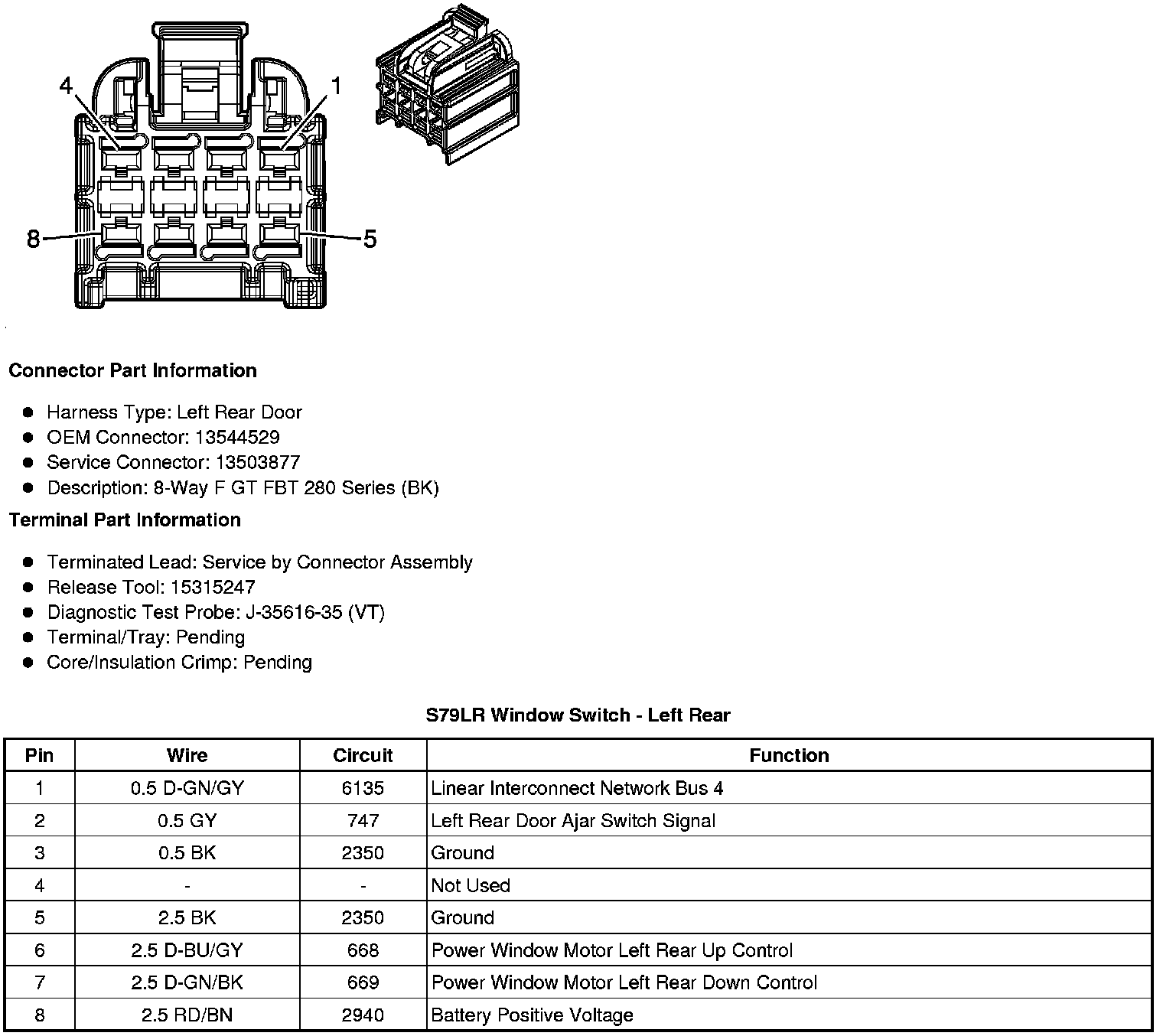

Component Connector End Views
S79LR Window Switch - Left Rear
