Cruze L4-1.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
Window Motor - Driver (AXG)
Window Motor - Driver (AXG)

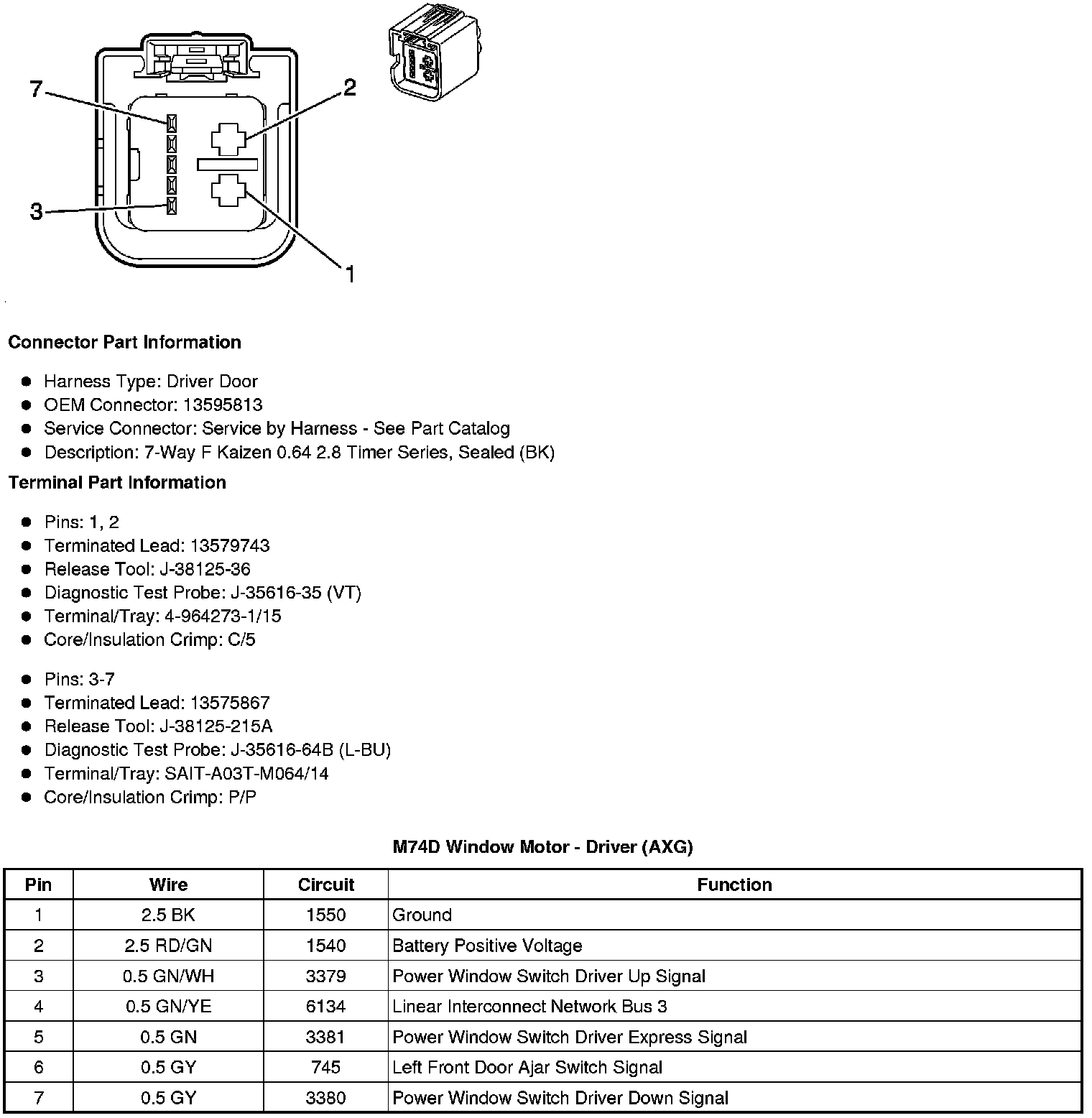

Component Connector End Views
M74D Window Motor - Driver (AXG)
