Power Seat Switch
Power Seat Switch

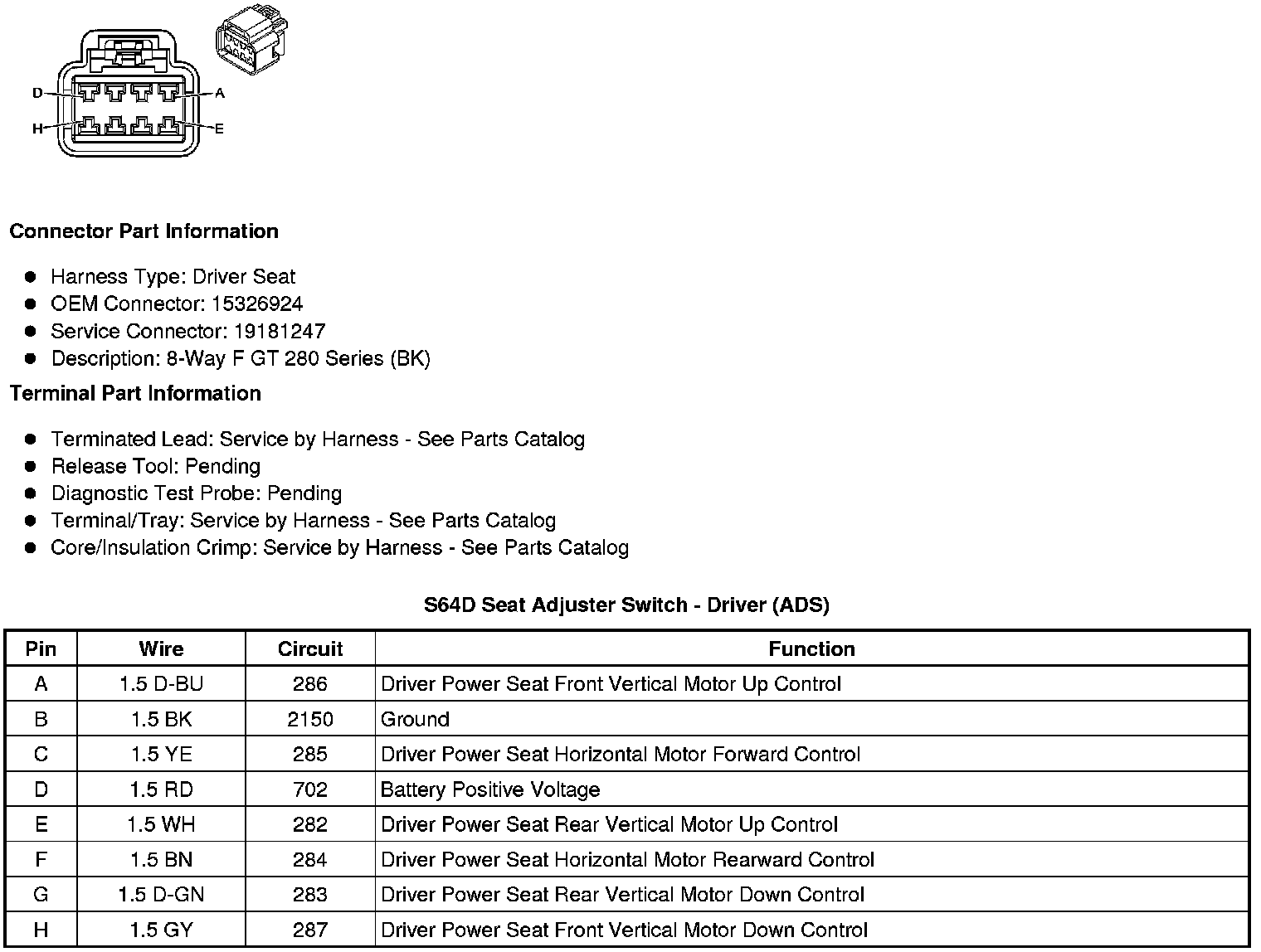

Component Connector End Views
S64D Seat Adjuster Switch - Driver (ADS)
