Fuel Injector
>>
Fuel Injector 3
Fuel Injector 3

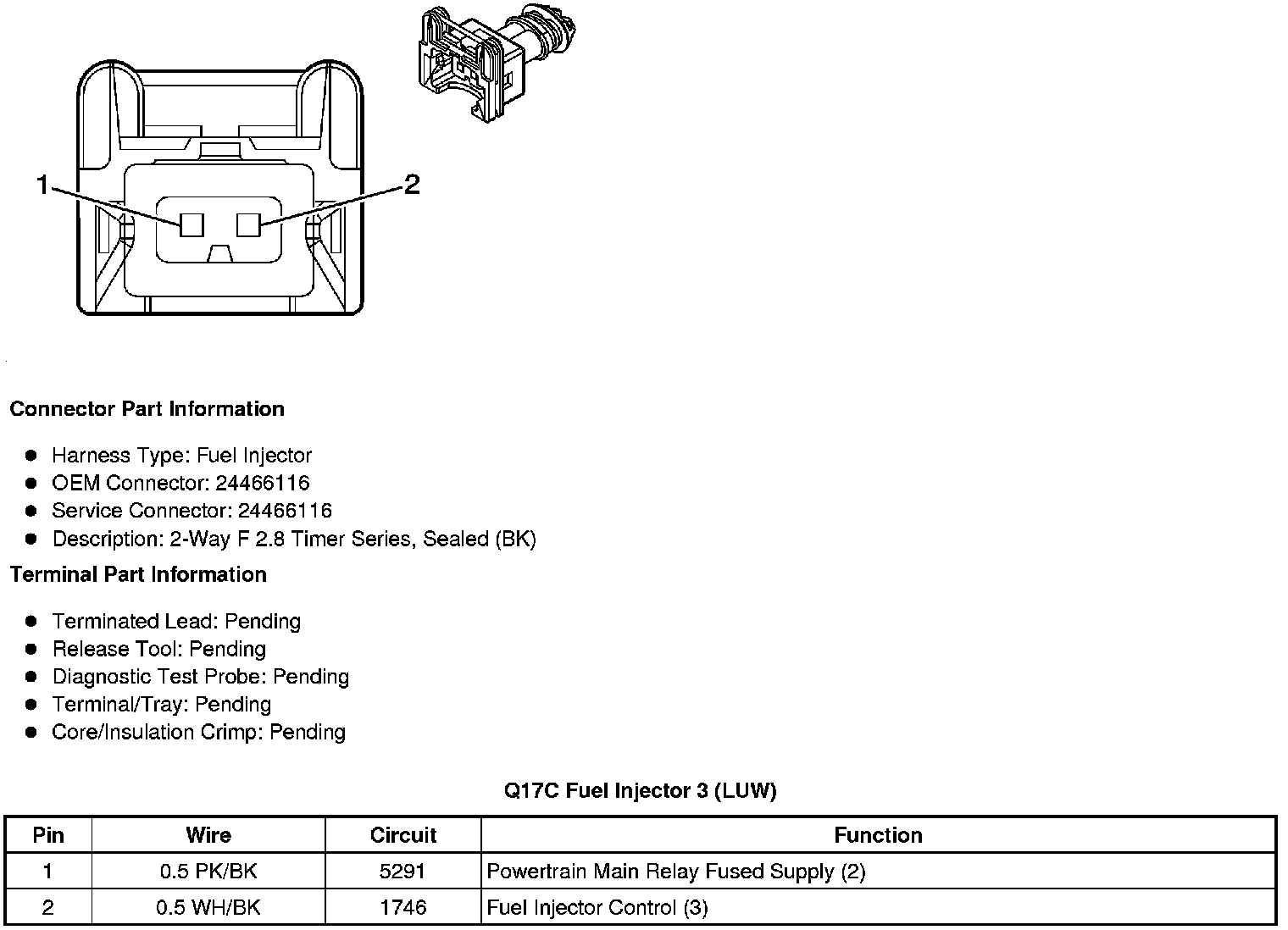

Component Connector End Views
Q17C
Fuel Injector
3 (LUW)
