Rear Object Sensor - Left Middle (UD7)

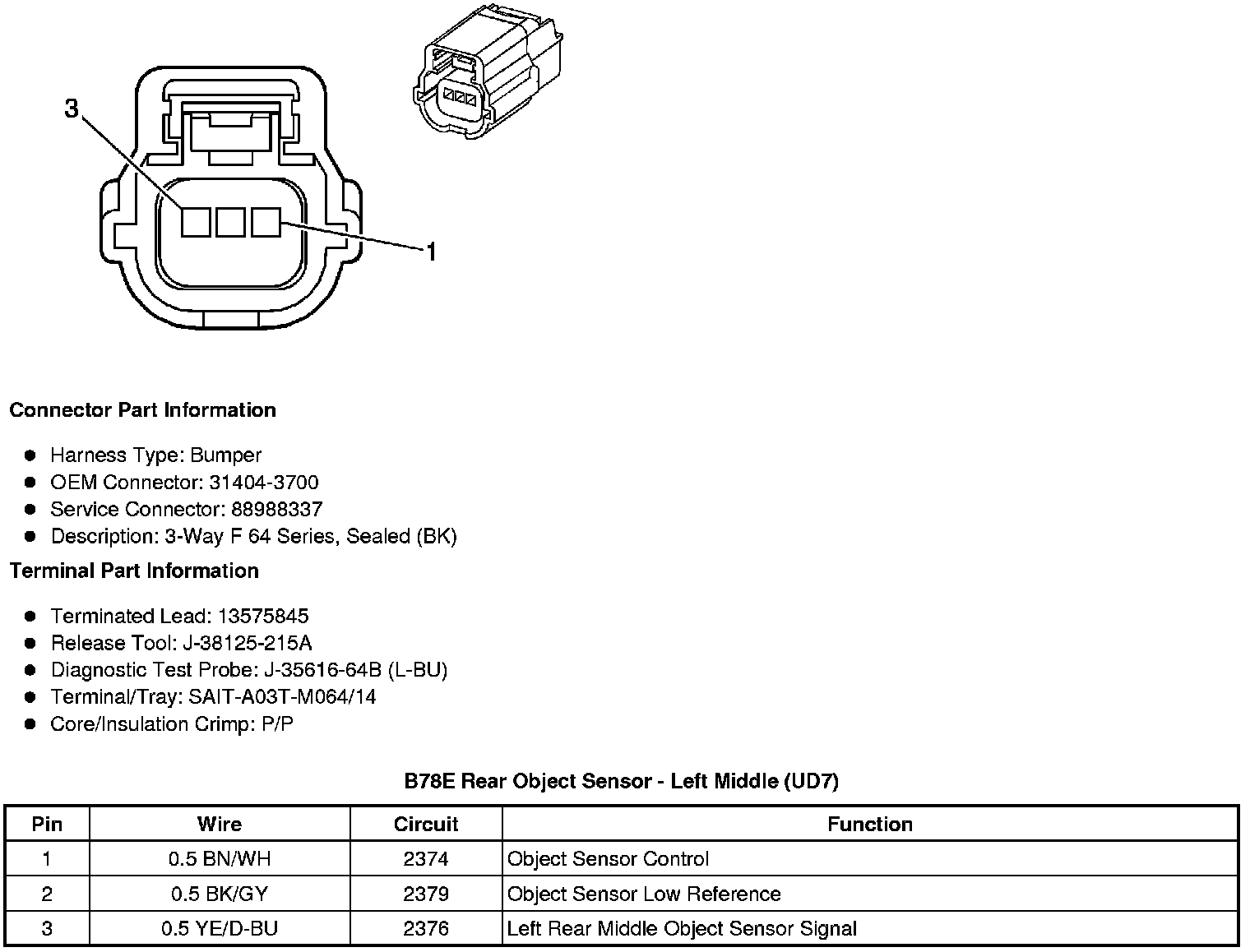

Component Connector End Views

B78E Rear Object Sensor - Left Middle (UD7)
