Clutch Pedal Position Sensor / Switch
Clutch Pedal Position Sensor / Switch

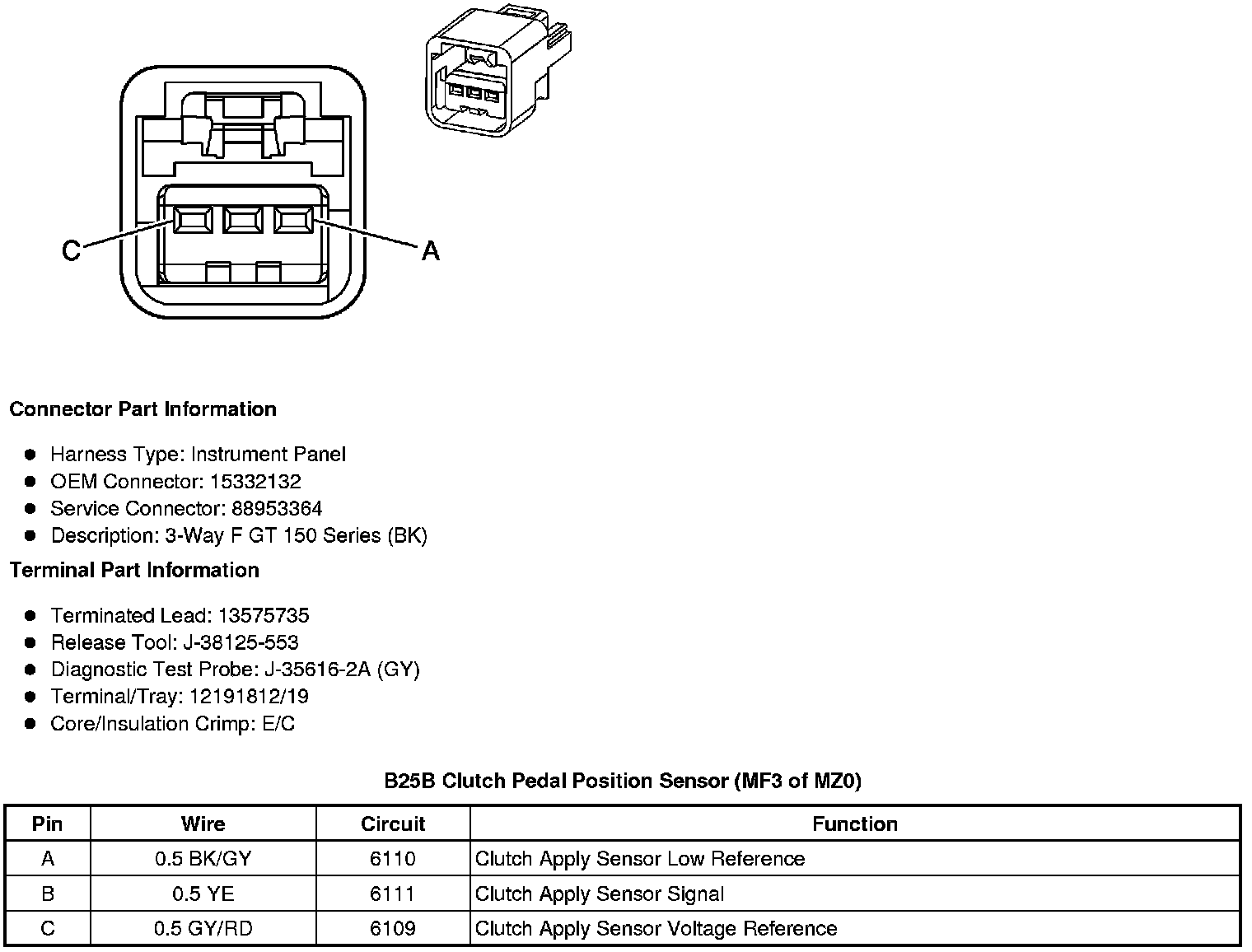

Component Connector End Views
B25B Clutch Pedal Position Sensor (MF3 or MZ0)
