Climate Control Exhaust Gas Sensor
Climate Control Exhaust Gas Sensor

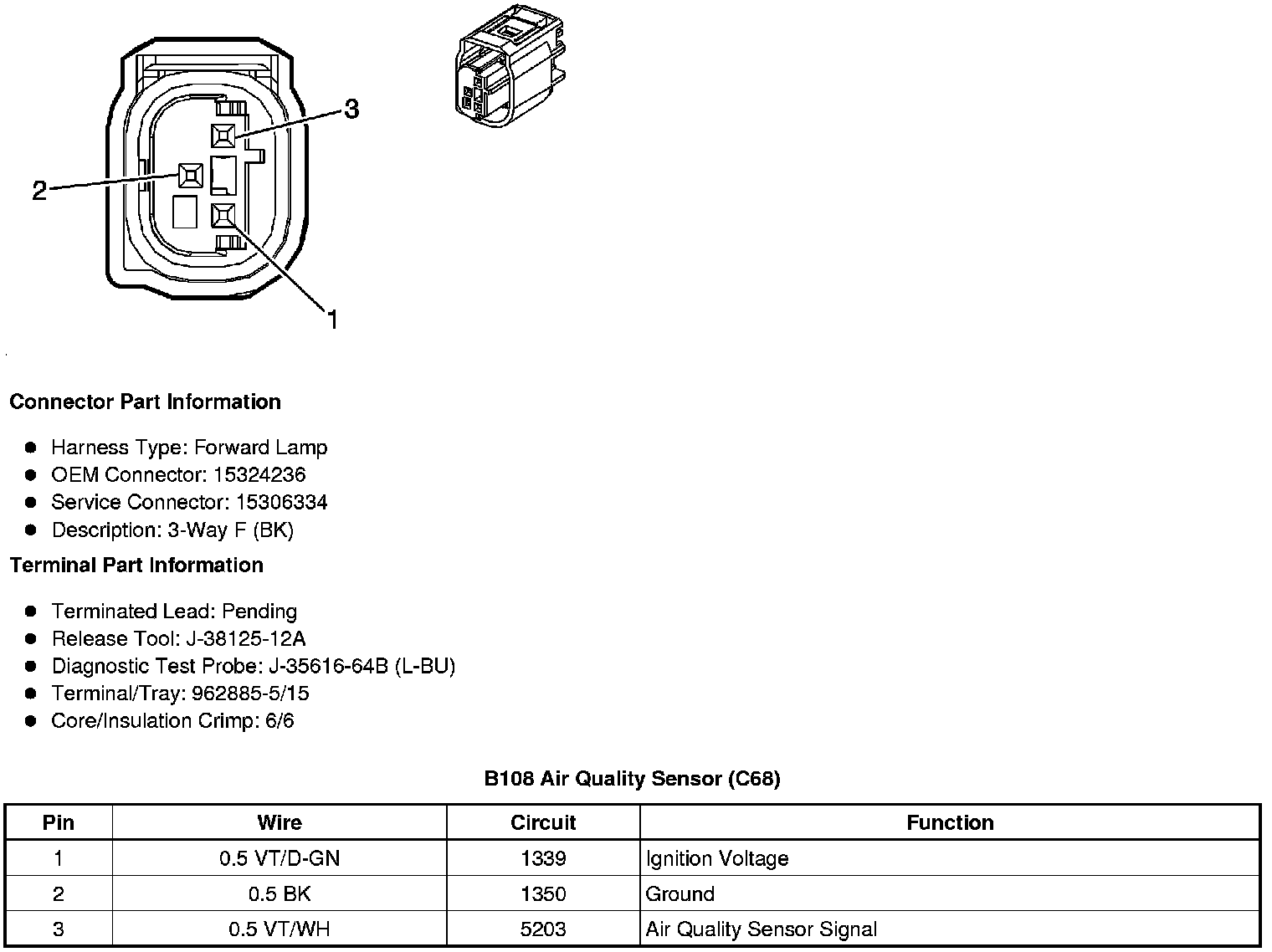

Component Connector End Views
B108 Air Quality Sensor (C68)
