Connector Views
>>
Cellular Phone Microphone
Cellular Phone Microphone

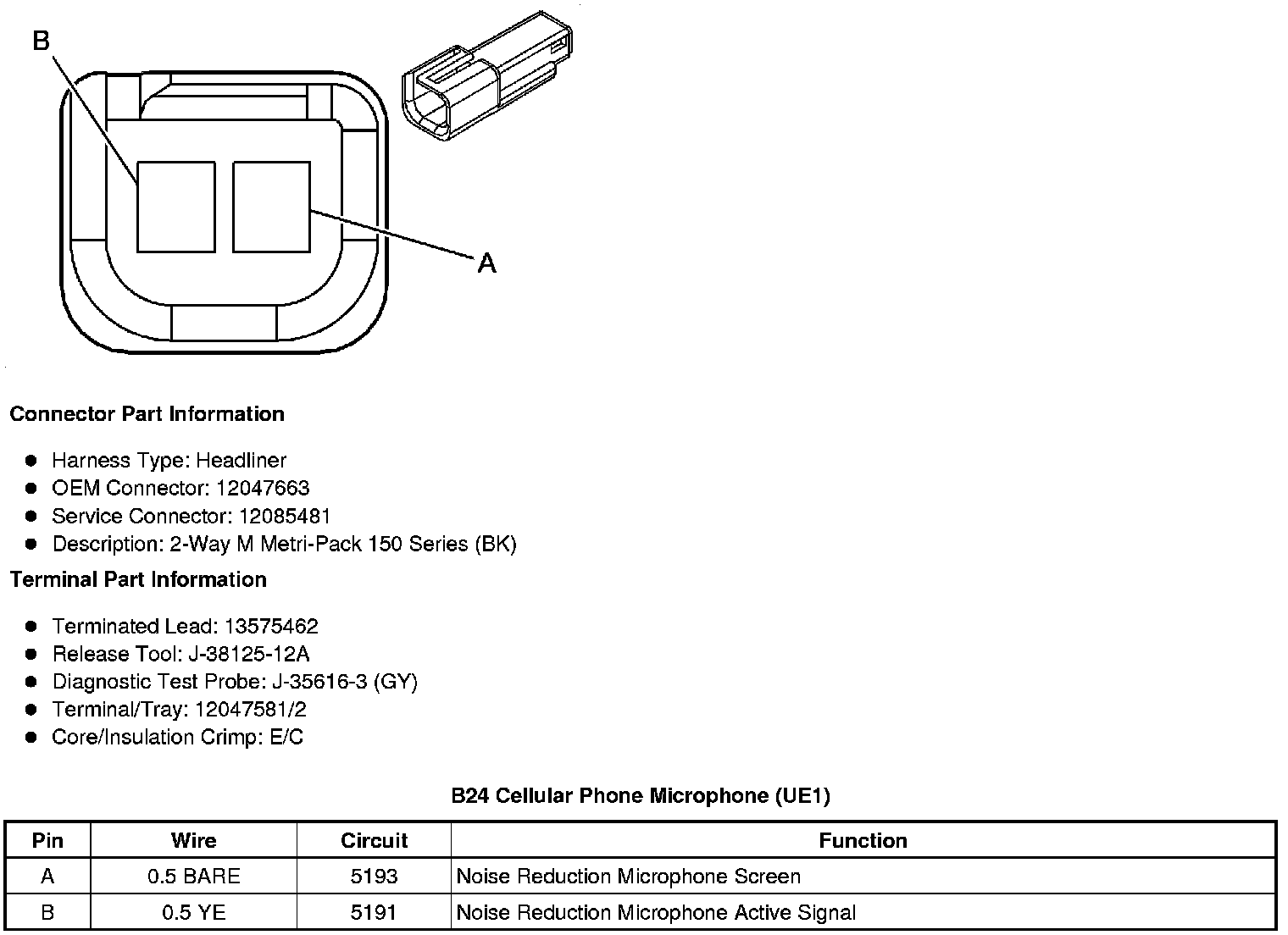

Component Connector End Views
B24
Cellular Phone Microphone
(UE1)
