Brake Booster Vacuum Sensor
Brake Booster Vacuum Sensor

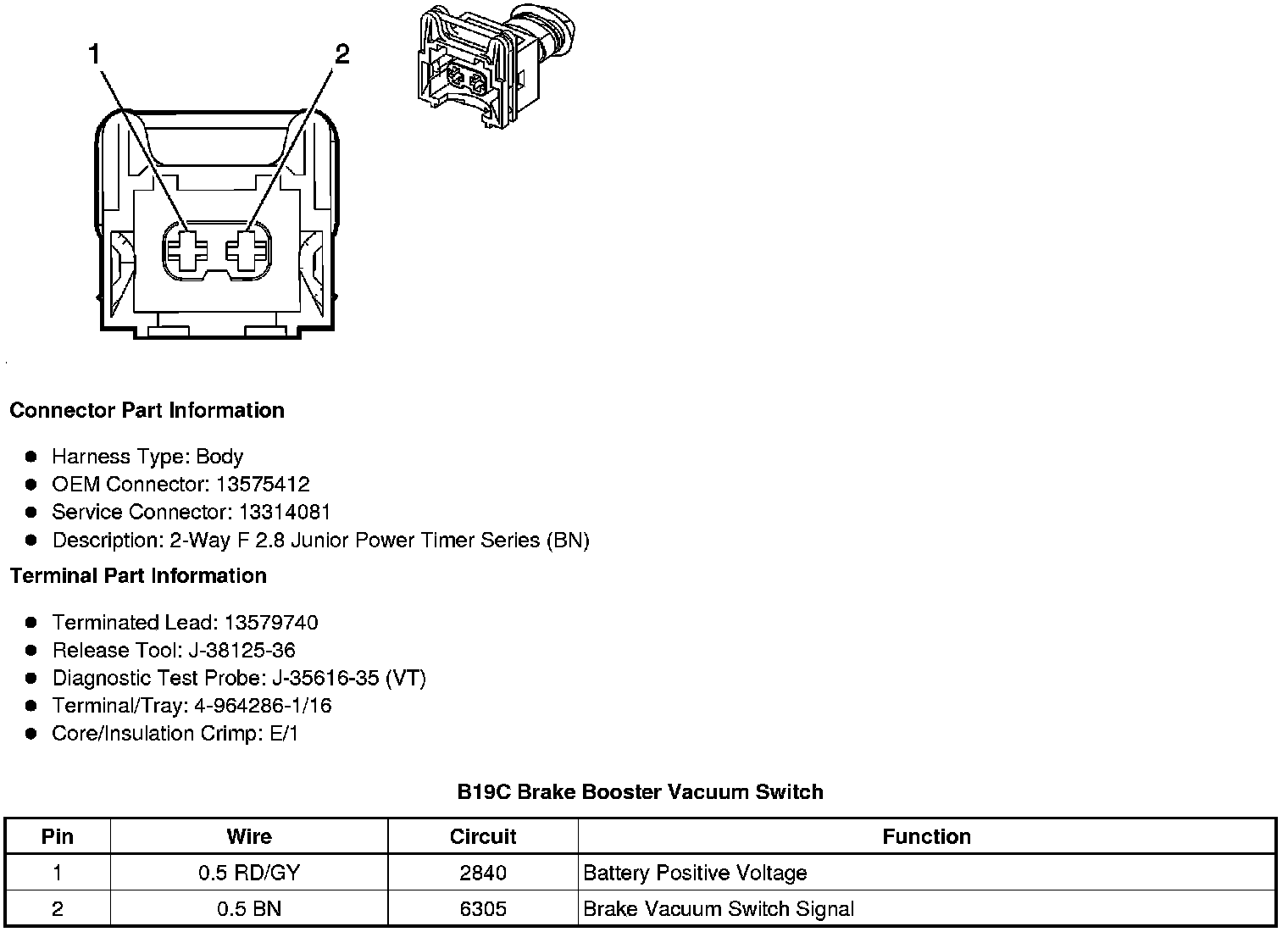

Component Connector End Views
B19C Brake Booster Vacuum Switch
