Home >> Chevrolet >> 2012 >> Cruze L4-1.8L >> Repair and Diagnosis >> Body and Frame >> Application and ID

Body and Frame: Application and ID

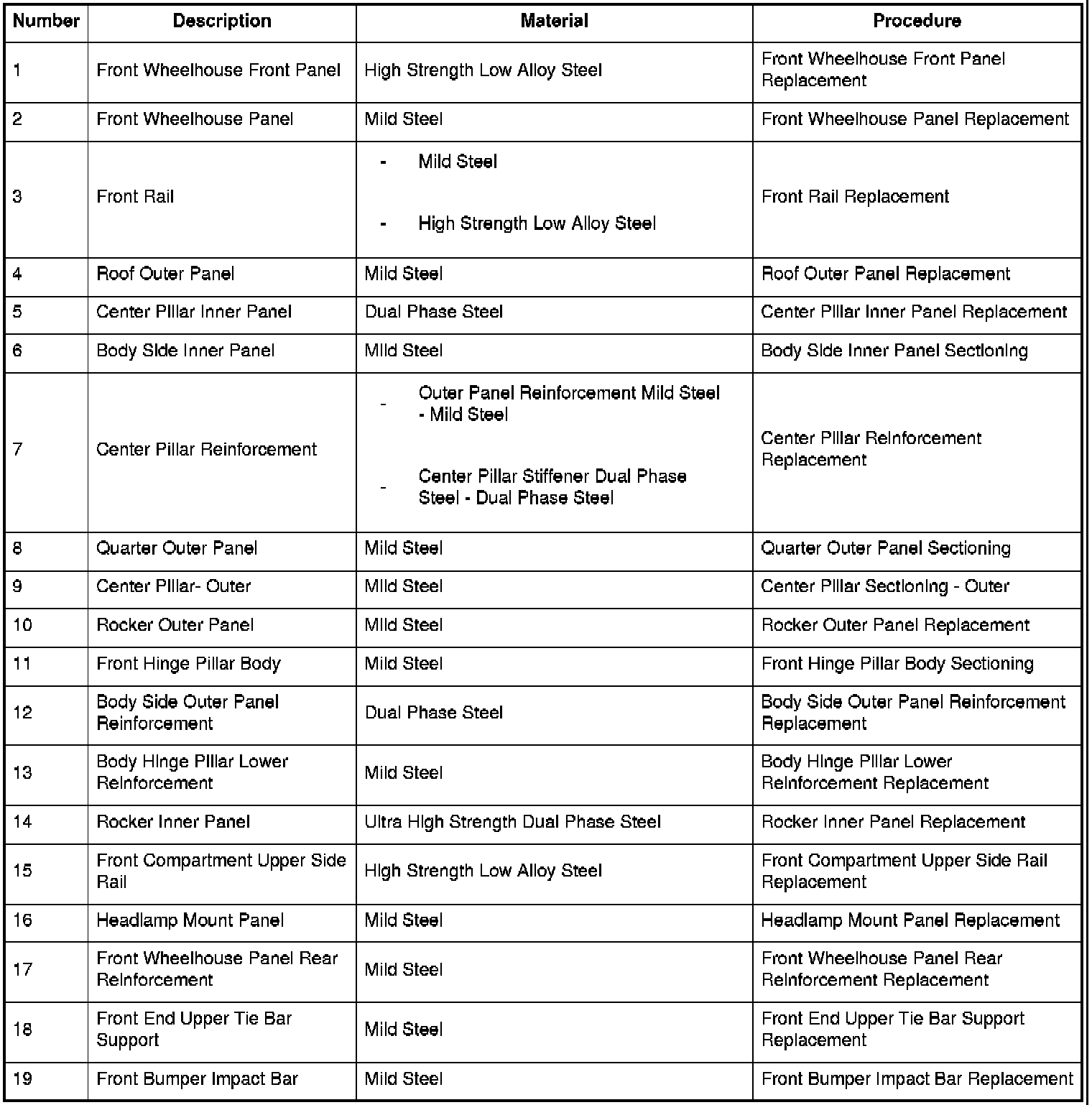

Structure Identification

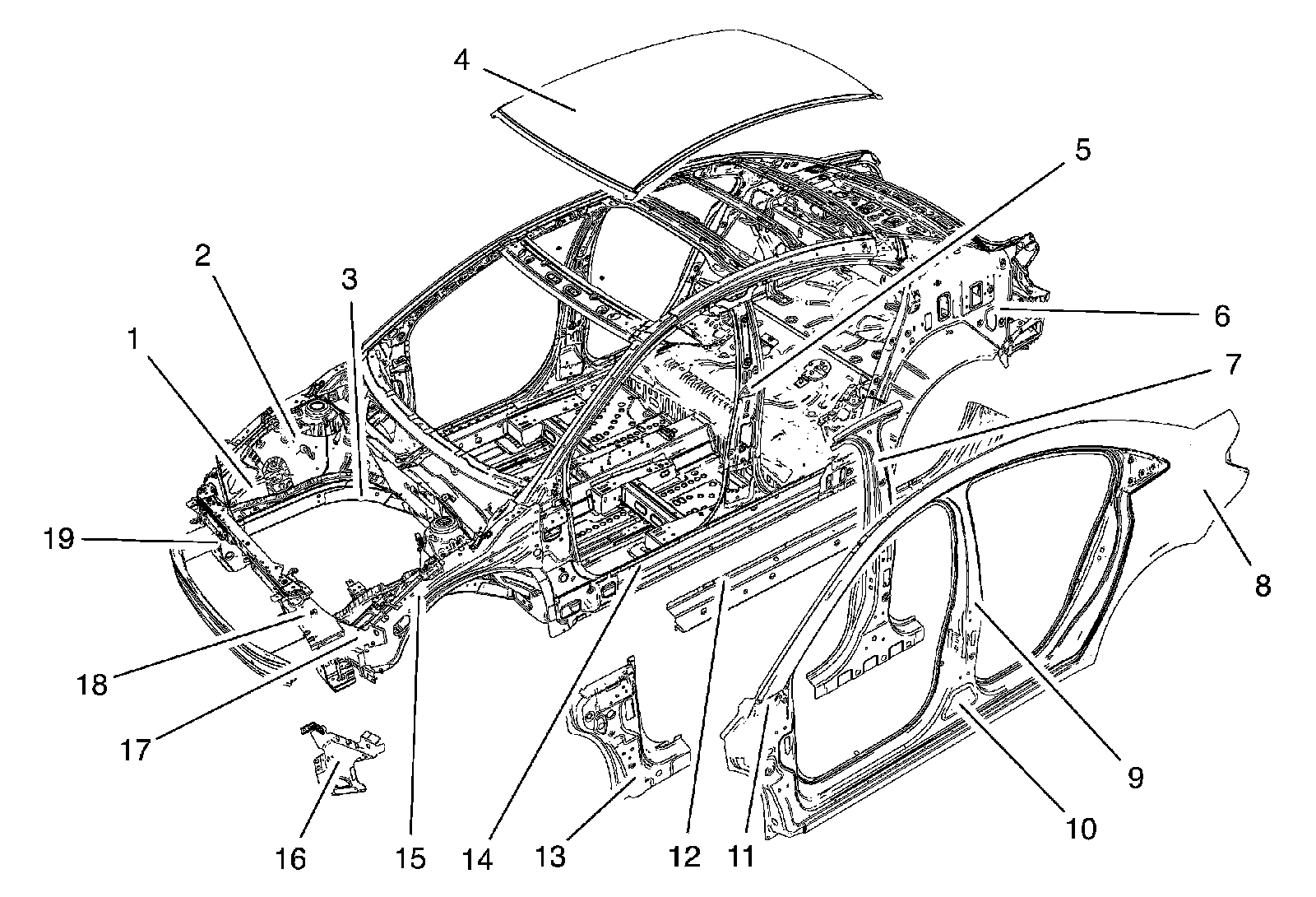

View Front

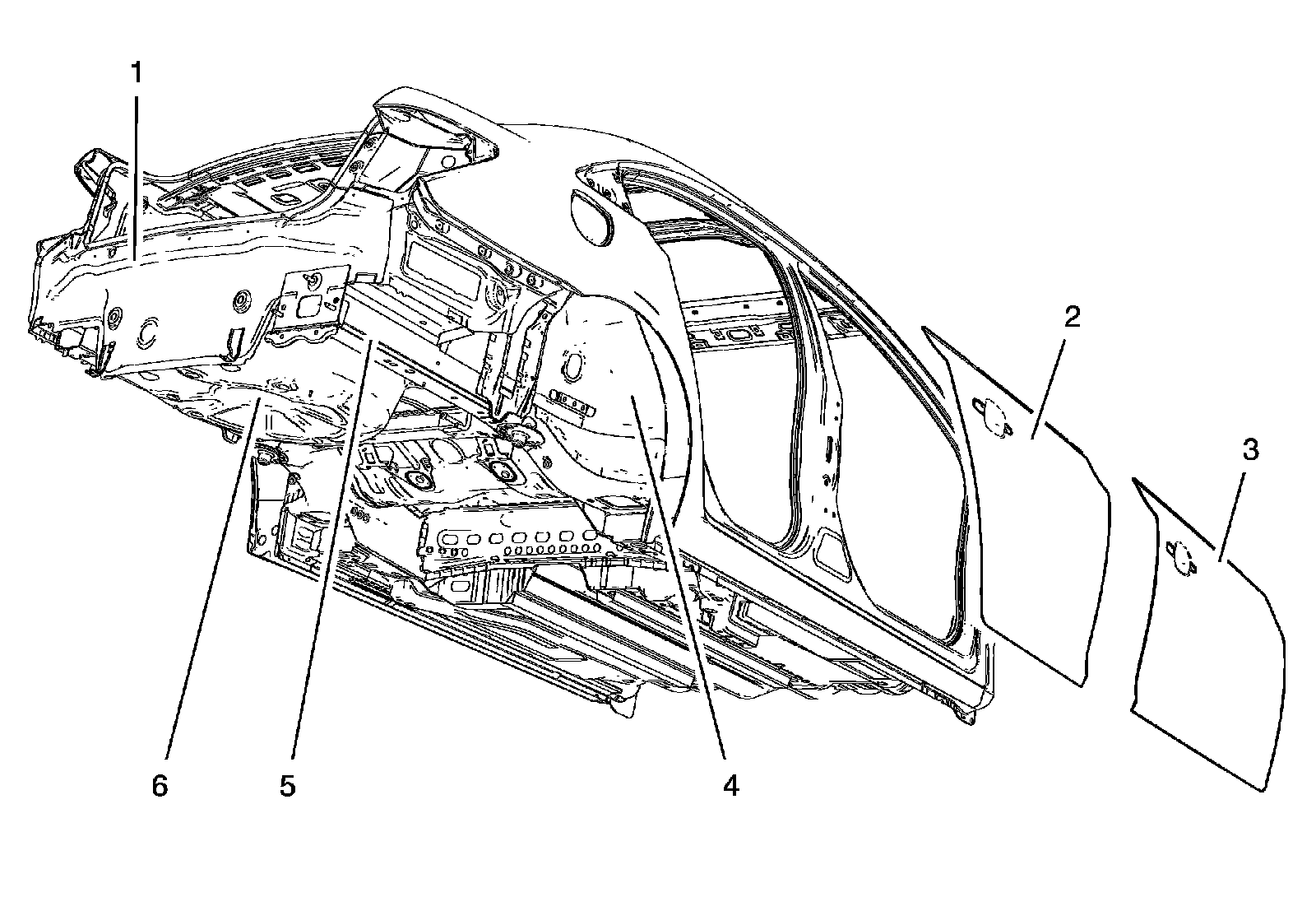

View Rear
