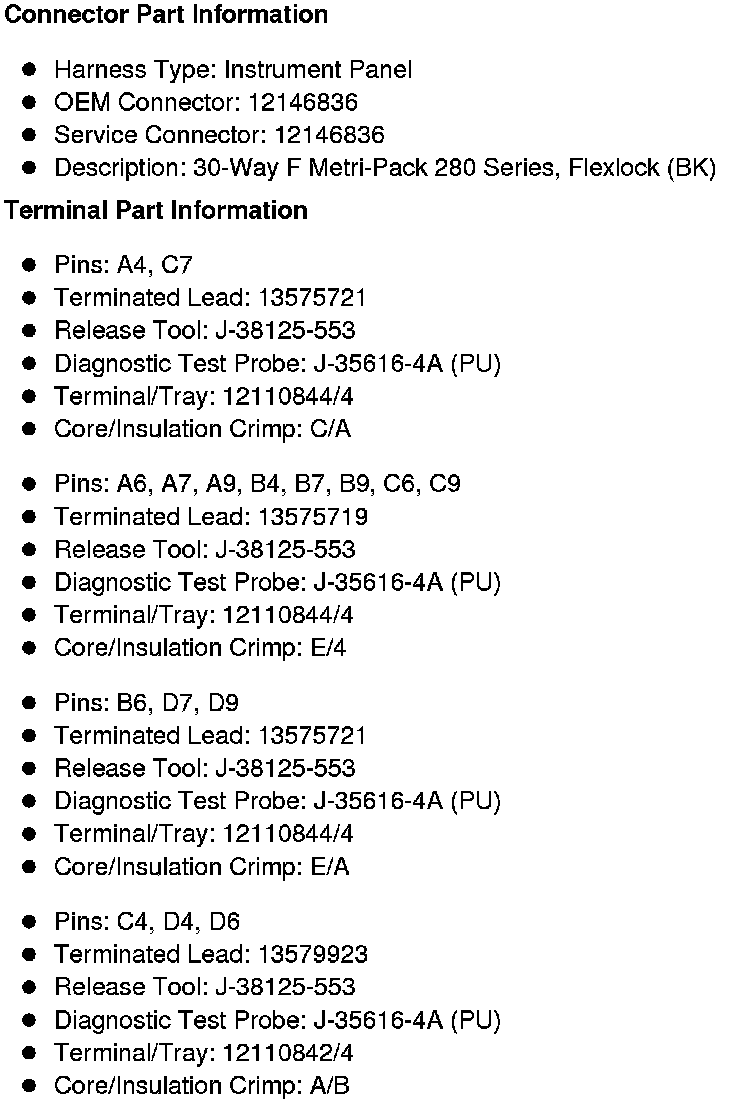

Relay Block - I/P Wire Entry




Electrical Center Identification Views

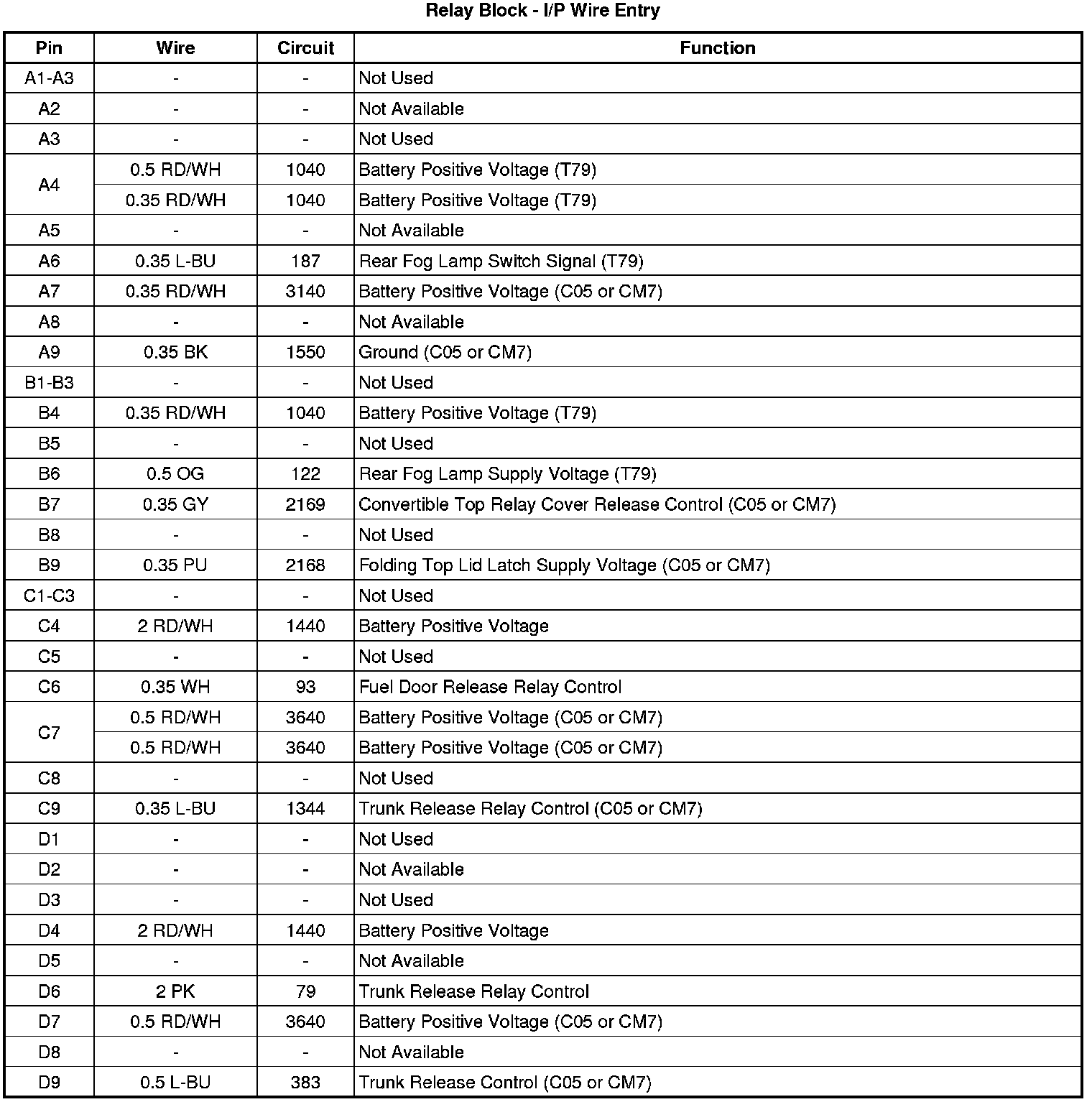

Relay Block - I/P Wire Entry
